Passenger Compartment Trims 2

Lamborghini Diablo VT 6.0 (2000-2001)

Find Your Part

Lamborghini Diablo VT 6.0 (2000-2001) - Passenger Compartment Trims 2

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

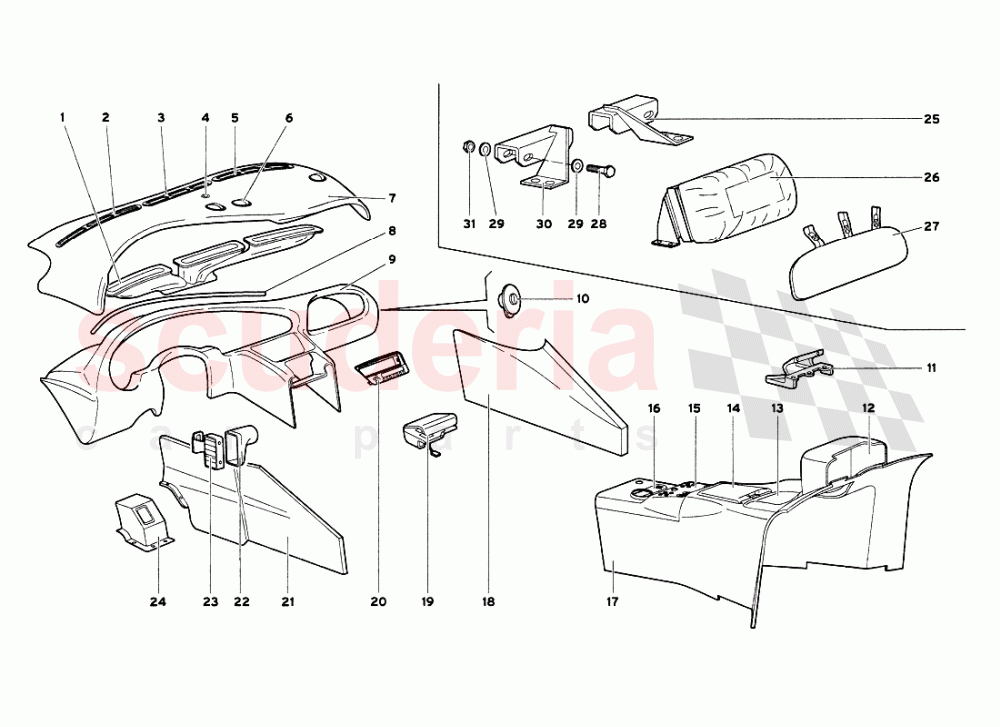

Passenger Compartment Trims 2 of Lamborghini Lamborghini Diablo VT 6.0 (2000-2001) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 69005565
CONVEYOR 		$740.81 (8.1% off) 1
002 69005471
LH FRAME 		$58.31 (11.4% off) 1
003 69005472
CENTRAL FRAME 		$74.43 (8.1% off) 1
004 60002734
SENSOR 		- 1 Enquire
005 69005470
RH FRAME 		$74.43 (8.1% off) 1
006 9914500
AIR VENT 		$76.05 (8% off) 3
007 69007219
DASHBOARD UPPER PART 		$2,113.73 1
008 69005599
DASHBOARD WARNING LAMP COVER 		$380.78 (8.2% off) 1
009 69005543
DASHBOARD PANEL 		$6,319.74 1
010 60005596
A1RBAG SWITCH 		- 1 Enquire
011 78005462
HINGE 		$387.68 (8.1% off) 1
012 78005612
BELT COVER 		$161.64 (8.2% off) 1
013 78005611
GLOVEBOX COVER 		$107.68 (8.4% off) 1
014 78006724
PANEL ON TUNNEL 		$641.89 (11.2% off) 1
015 78005447
TUNNEL COVER TRIM 		$1,604.72 (10.6% off) 1
016 24006636
GEARBOX FRAME 		$759.23 (8.1% off) 1
017 78006723
TUNNEL COVER 		$6,475.44 1
018 9414303
PANEL 		$277.81 (8.3% off) 1
019 59006338
ASHTRAY 		$673.57 1
020 69006955
SOUND SYSTEM PANEL (CLARION) 		$1,731.26 (11.2% off) 1
020 69009275
SOUND SYSTEM PANEL (ALPINE) 		$1,731.26 (11.2% off) 1
021 9414336
PANEL 		$186.95 (8.4% off) 1
022 78006875
OUTLET 		- 1 Enquire
023 78006876
GRILLE 		$61.08 (8.2% off) 1
024 9458364
CASE 		$62.68 1
025 41006487
RH SUPPORT 		$37.44 (8.1% off) 1
026 413880199
AIR BAG MODULE 		$7,822.29 1
027 9914314
AIRBAG LID 		$251.36 (8.3% off) 1
028 N0147519
SCREW M8X50 		$12.04 3
029 8400826
WASHER 		$2.48 (6.4% off) 3
030 41006486
LH SUPPORT 		$37.44 (8.1% off) 1
031 8200803
NUT 		$2.12 (11.7% off) 3
