Electrical System 5

Lamborghini Diablo VT 6.0 (2000-2001)

Find Your Part

Lamborghini Diablo VT 6.0 (2000-2001) - Electrical System 5

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

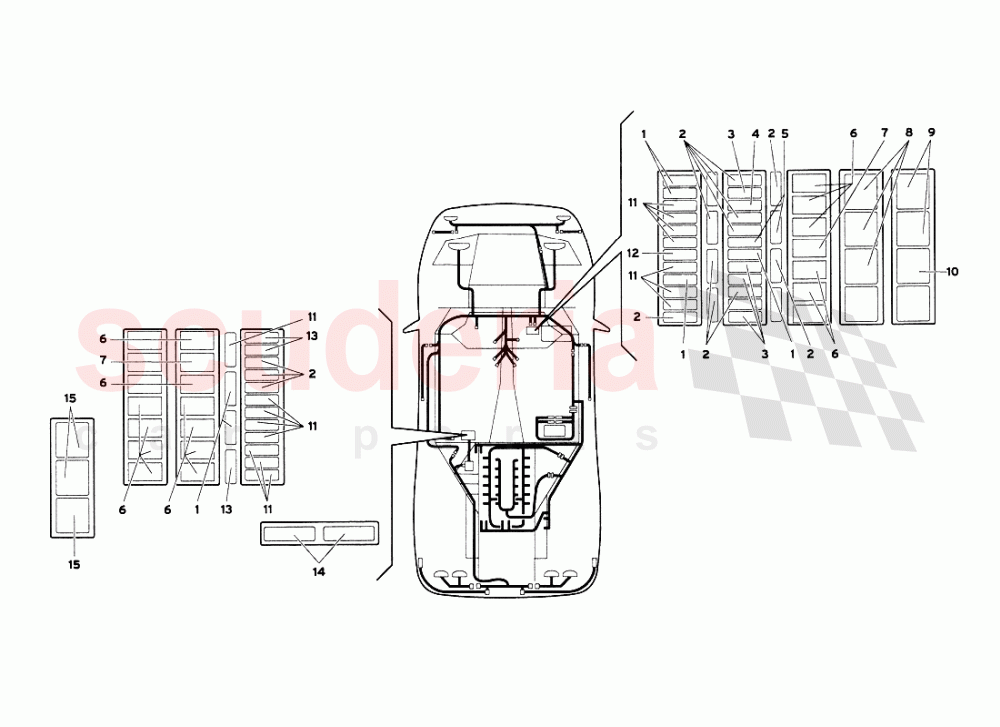

Electrical System 5 of Lamborghini Lamborghini Diablo VT 6.0 (2000-2001) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 1638094
FUSE 		$0.43 (94.1% off) 6
002 1638096
FUSE 		$0.64 (91.2% off) 14
003 1638098
FUSE 		$0.64 (91.2% off) 4
004 1638099
FUSE 		$0.43 (94.1% off) 1
005 1638121
FUSE 		$0.64 (91.2% off) 2
006 6138214
RELAY 		$12.00 (7% off) 15
007 6038006
RELAY 		$18.04 (9.6% off) 2
008 6138003
RELAY 		$30.14 (6.7% off) 3
009 6311154
RELAY - (Valid for R.H.D. version - April 1994) RELAY BOSCH 0.332.014.151 		$45.36 2
010 61006306
TIMER 		$162.14 (7.1% off) 1
011 1638097
FUSE 		$0.43 (94.1% off) 15
012 1638371
FUSE 		$0.43 (94.1% off) 1
013 1638095
FUSE 		$0.64 (91.2% off) 3
014 6138331
40A MAXIFUSE 		- 2 Enquire
015 6138330
RELAY 		$32.99 3
