Lamborghini Diablo (1990-1998) - Alternator (Valid for June 1992 Version)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

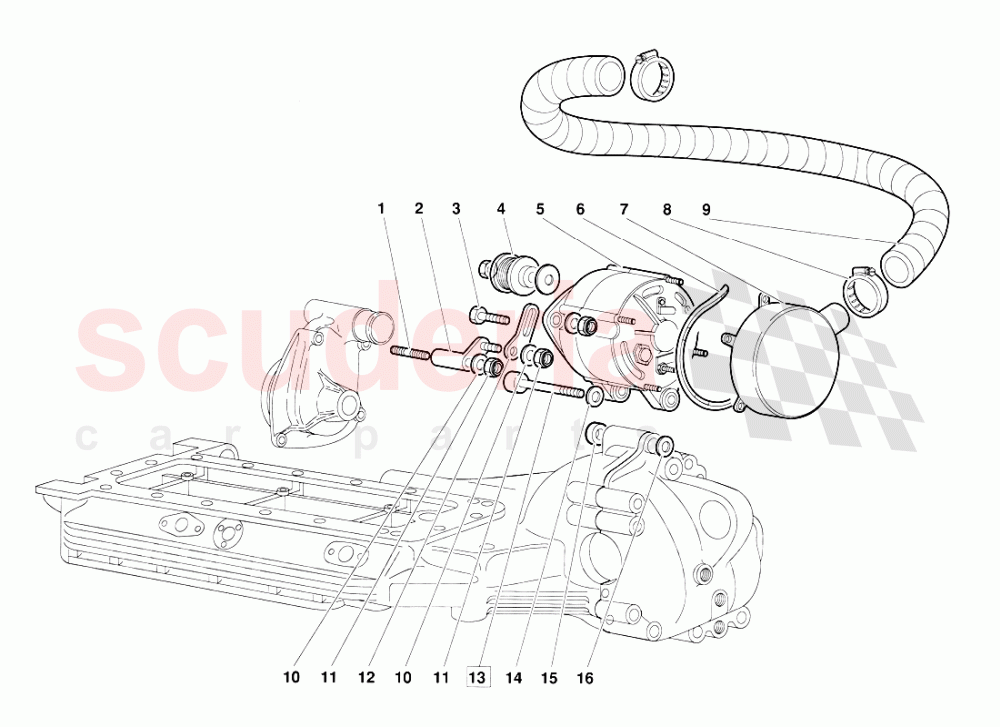

Alternator (Valid for June 1992 Version) of Lamborghini Lamborghini Diablo (1990-1998) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 8301040
STUD
(Valid for June 1992 version) PRIGIONIERO 		$35.53 1
002 1632543
SPACER
(Valid for June 1992 version) O 		$244.77 1
003 8101048
SCREW
(Valid for June 1992 version) VITE 		$3.42 1
004 1629620
PULLEY
(Valid for June 1992 version) PULEGGIA 		$227.42 1
005 1625271
ALTERNATOR - ALTERNATORE
(Valid for June 1992 version) E 		$3,510.41 1
006 1625920
GASKET
(Valid for June 1992 version) GUARNIZIONE 		$116.88 (10.8% off) 1
007 1630088
CONVEYOR
(Valid for June 1992 version) CONVOGLIATORE 		$602.04 1
008 8833901
STRAP
(Valid for June 1992 version) FASCETTA
IN STOCK 		$9.15 2
009 1630090
PIPE
(Valid for June 1992 version) TUBO 		$313.25 1
010 N0122115
WASHER
(Valid for June 1992 version) RONDELLA
IN STOCK 		$0.83 (88.6% off) 3
011 8201010
NUT
(Valid for June 1992 version) DADO
IN STOCK 		$1.16 3
012 1631501
BRACKET
(Valid for June 1992 version) PIASTRA ASOLATA 		$73.48 1
013 8701022
SCREW
(Valid for June 1992 version) VITE (dalla 12583) (particolare intercambiabile)
IN STOCK 		$1.44 (79.7% off) 1
014 WHT000768
WASHER
IN STOCK 		$1.83 (74.9% off) 4
015 1629623
SPACER
(Valid for June 1992 version) DISTANZIALESP10MM 		$18.76 4
016 1629624
SPACER
(Valid for June 1992 version) DISTANZIALE SP 2 MM 		$3.76 1
