Name: FUEL LINE
Rating: 4.7 (1 reviews)

View All

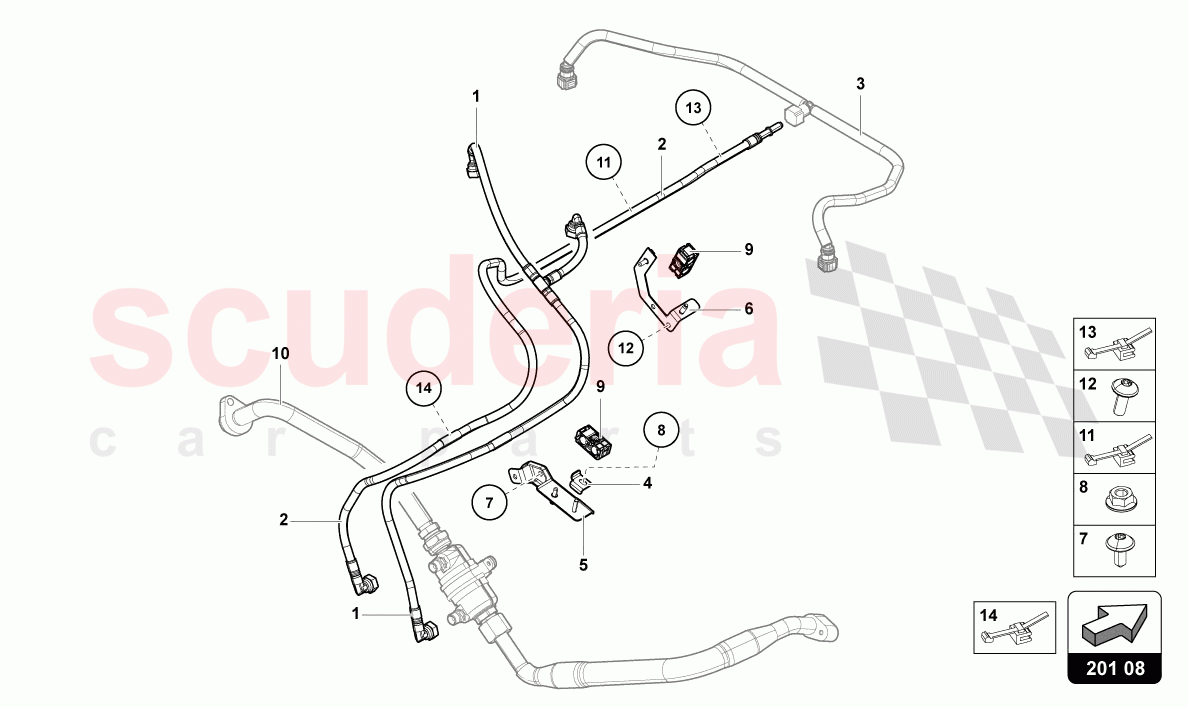

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	470201219G	FUEL LINE	$1,813.99	To Order

Photo	Part No	Description	Price (each)	Stock
	470201229F	FUEL LINE	$830.15	To Order

Photo	Part No	Description	Price (each)	Stock
	470201187	ARM	$26.80	To Order

Photo	Part No	Description	Price (each)	Stock
	470201128B	ARM	$76.98	To Order

Photo	Part No	Description	Price (each)	Stock
	470201260	RETAINER FOR FUEL FILTER	$30.68	To Order

Photo	Part No	Description	Price (each)	Stock
	N90898101	OVAL HEXAGON SOCKET HEAD BOLT	$2.14	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N10017304	HEXAGON COLLAR NUT	$1.89	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	6Q0611797C	BRACKET	$5.43	To Order

Photo	Part No	Description	Price (each)	Stock
	N10315001	BRACKET FOR SUCTION HOSE	$1.63	To Order

Photo	Part No	Description	Price (each)	Stock
	N90780903	OVAL HEXAGON SOCKET HEAD BOLT	$0.92	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	5M0971838	CABLE TIE WITH TERMINAL SOCKET	$2.66	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	8A0971850C	CABLE TIES	$0.85	To Order

View All

Fuel Line

Lamborghini Aventador LP780 Ultimae Roadster

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	470201219G	FUEL LINE	470201219G FUEL LINE RETURN	$1,813.99	1
2	470201229F	FUEL LINE	470201229F FUEL LINE FEED	$830.15	1
4	470201187	ARM	470201187 ARM	$26.80	1
5	470201128B	ARM	470201128B ARM	$76.98	1
6	470201260	RETAINER FOR FUEL FILTER	470201260 RETAINER FOR FUEL FILTER	$30.68	1
7	N90898101	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N90898101 OVAL HEXAGON SOCKET HEAD BOLT M6X14 IN STOCK	$2.14 MSRP: ~~7.01~~ (69.5% off)	3
8	N10017304	HEXAGON COLLAR NUT IN STOCK	N10017304 HEXAGON COLLAR NUT M5 IN STOCK	$1.89	1
9	6Q0611797C	BRACKET	6Q0611797C BRACKET 2 POINT	$5.43	2
11	N10315001	BRACKET FOR SUCTION HOSE	N10315001 BRACKET FOR SUCTION HOSE	$1.63 MSRP: ~~7.30~~ (77.7% off)	1
12	N90780903	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N90780903 OVAL HEXAGON SOCKET HEAD BOLT M6X16 IN STOCK	$0.92	2
13	5M0971838	CABLE TIE WITH TERMINAL SOCKET IN STOCK	5M0971838 CABLE TIE WITH TERMINAL SOCKET 4 -6X200MM IN STOCK	$2.66	2
14	8A0971850C	CABLE TIES	8A0971850C CABLE TIES LINKS REF 2 WITH ENGINE HARNESS-4 -8X302	$0.85	1
