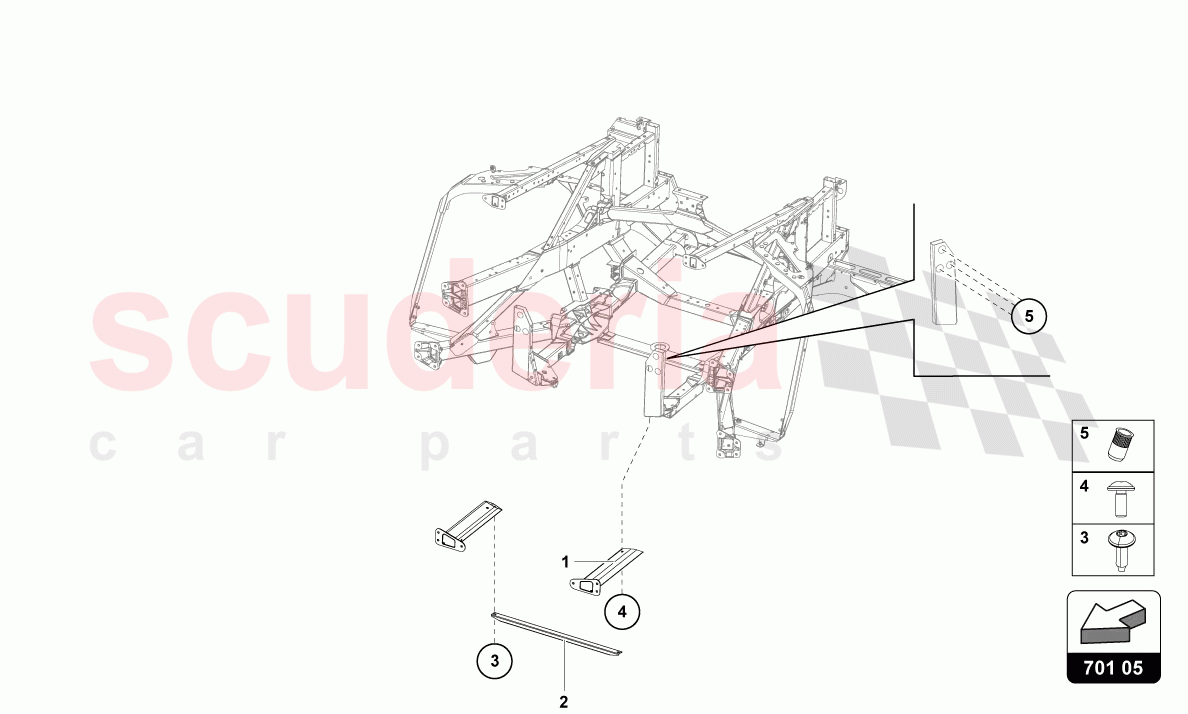

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	470813518B	CROSS MEMBER	$220.67	To Order

Photo	Part No	Description	Price (each)	Stock
	N90900401	HEX SOCKET OVAL HEAD COLLARED M6 X 20	$2.20	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N91000203	OVAL HEXAGON SOCKET HEAD BOLT	$10.85	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N10665002	FLAT HEAD MULTI-POINT SOCKET BOLT	$5.46	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	470813663B	REINFORCEMENT	470813663B REINFORCEMENT CONTACT YOUR AREA MANAGER-LEFT	$504.04	1
1	470813664B	REINFORCEMENT	470813664B REINFORCEMENT CONTACT YOUR AREA MANAGER-RIGHT	$504.04	1
2	470813518B	CROSS MEMBER	470813518B CROSS MEMBER CONTACT YOUR AREA MANAGER-REAR	$220.67	1
3	N90900401	HEX SOCKET OVAL HEAD COLLARED M6 X 20 IN STOCK	N90900401 HEX SOCKET OVAL HEAD COLLARED M6 X 20 M6X20 IN STOCK	$2.20	2
4	N91000203	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N91000203 OVAL HEXAGON SOCKET HEAD BOLT M8X25-H IN STOCK	$10.85	4
5	N10665002	FLAT HEAD MULTI-POINT SOCKET BOLT	N10665002 FLAT HEAD MULTI-POINT SOCKET BOLT M8X30	$5.46	3
