Find Your Part

View All

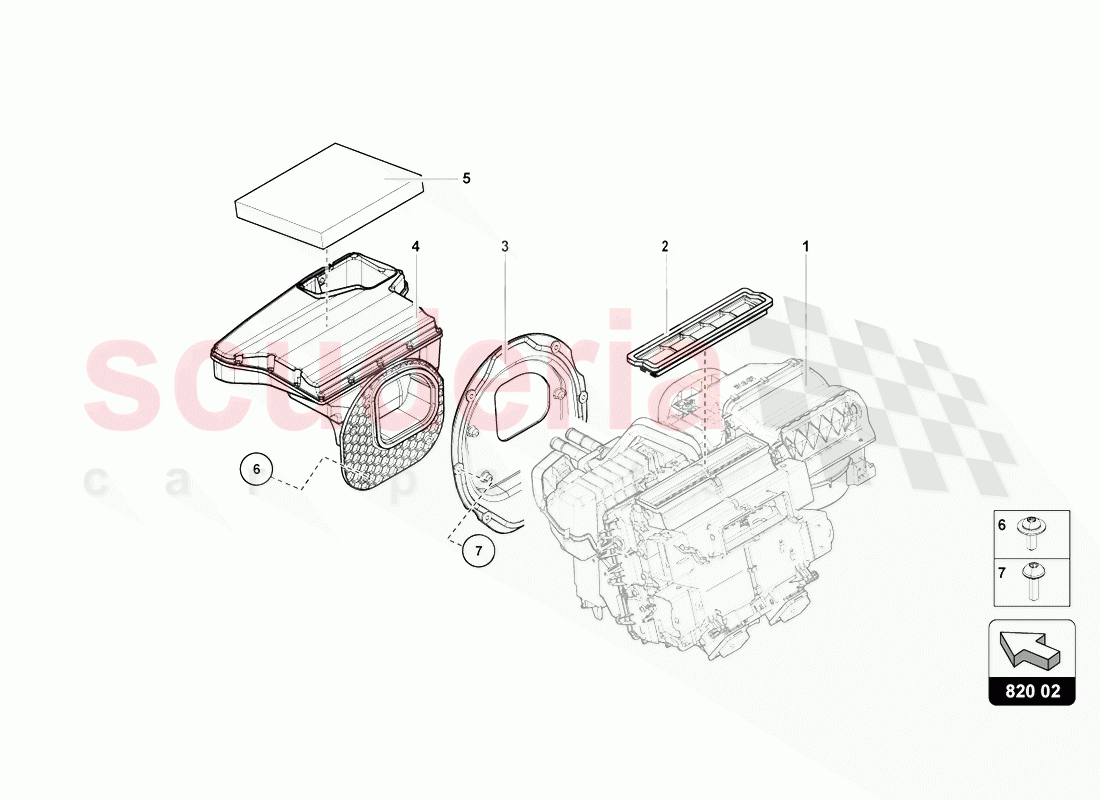

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
		AIR CONDITIONING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470819655	AIR GUIDE CHANNEL	$58.58	To Order

Photo	Part No	Description	Price (each)	Stock
	471805288	BRACKET	$498.01	To Order

Photo	Part No	Description	Price (each)	Stock
	471820153B	INTAKE DUCT	$353.75	To Order

Photo	Part No	Description	Price (each)	Stock
	6Q0819653B	FILTER INSERT WITH ODOUR AND HARMFUL SUBSTANCE FILTERING	$56.96	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N10738101	HEX SOCKET HEAD BOLT (COMBI)	$1.29	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N91054201	HEXAGON SOCKET HEAD BOLT, SELF-LOCKING	$1.44	IN STOCK

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	-	AIR CONDITIONING	AIR CONDITIONING SEE ILLUSTRATION :- 820-030	-	-	Enquire
2	470819655	AIR GUIDE CHANNEL	470819655 AIR GUIDE CHANNEL	$58.58	1
3	471805288	BRACKET	471805288 BRACKET LHD	$498.01	1
4	471820153B	INTAKE DUCT	471820153B INTAKE DUCT LHD	$353.75	-
5	6Q0819653B	FILTER INSERT WITH ODOUR AND HARMFUL SUBSTANCE FILTERING IN STOCK	6Q0819653B FILTER INSERT WITH ODOUR AND HARMFUL SUBSTANCE FILTERING IN STOCK	$56.96	1
6	N10738101	HEX SOCKET HEAD BOLT (COMBI) IN STOCK	N10738101 HEX SOCKET HEAD BOLT (COMBI) M5X16 IN STOCK	$1.29	4
7	N91054201	HEXAGON SOCKET HEAD BOLT, SELF-LOCKING IN STOCK	N91054201 HEXAGON SOCKET HEAD BOLT, SELF-LOCKING M6X28 IN STOCK	$1.44	3
