Trim Frame Rear Part

Lamborghini Aventador LP770 SVJ Coupe

Find Your Part

Lamborghini Aventador LP770 SVJ Coupe - TRIM FRAME REAR PART

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
470814907C ARM $787.28 To Order
Photo Part No Description Price (each) Stock
470814908E ARM $550.72 To Order
Photo Part No Description Price (each) Stock
470814150C ARM $196.50 To Order
470814149F ARM $199.66 To Order
Photo Part No Description Price (each) Stock
470813541B BRACKET $1,470.36 To Order
470813542B BRACKET $2,446.42 To Order
Photo Part No Description Price (each) Stock
470813650E SIDE MEMBER $567.00 To Order
470813649K SIDE MEMBER $595.77 To Order
Photo Part No Description Price (each) Stock
CROSS MEMBER Enquire To Order
Photo Part No Description Price (each) Stock
BUMPER CARRIER Enquire To Order
Photo Part No Description Price (each) Stock
N91000203 OVAL HEXAGON SOCKET HEAD BOLT $10.83 IN STOCK
Photo Part No Description Price (each) Stock
N90786503 HEXAGON HEAD BOLT (COMBI) $2.19 IN STOCK
Photo Part No Description Price (each) Stock
N90862302 HEXAGON HEAD BOLT (COMBI) $5.77 To Order
Photo Part No Description Price (each) Stock
8H0806221 COMPENSATING PIECE $10.39 IN STOCK
Photo Part No Description Price (each) Stock
470854729A Arm (rear) $52.62 To Order
Photo Part No Description Price (each) Stock
N90944603 OVAL HEXAGON SOCKET HEAD BOLT $1.19 IN STOCK
Photo Part No Description Price (each) Stock
470807307E BUMPER CARRIER $10,473.89 To Order
Photo Part No Description Price (each) Stock
N90900402 HEX SOCKET OVAL HEAD COLLARED $1.43 IN STOCK
Photo Part No Description Price (each) Stock
4D0317867A RUBBER BUSH $8.08 IN STOCK
Photo Part No Description Price (each) Stock
470814908E ARM $550.72 To Order
Photo Part No Description Price (each) Stock
470813983A ARM $1,089.93 To Order
Photo Part No Description Price (each) Stock
470813381 ARM $1,001.09 To Order
Photo Part No Description Price (each) Stock
470814942C BRACKET $79.72 To Order
View All

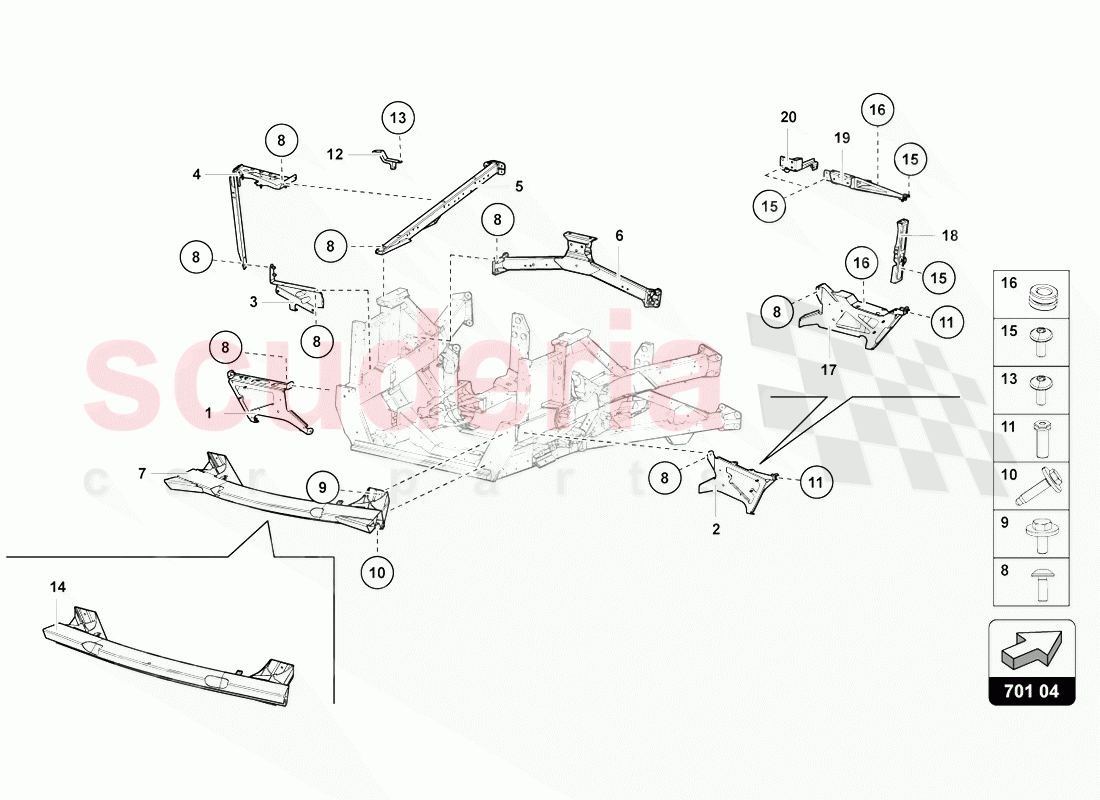

TRIM FRAME REAR PART of Lamborghini Lamborghini Aventador LP770 SVJ Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 470814907C
ARM
LEFT REAR 		$787.28 1
2 470814908E
ARM
RIGHT REAR 		$550.72 1
3 470814150C
ARM
CONTACT YOUR AREA MANAGER-RIGHT REAR 		$196.50 1
3 470814149F
ARM
LEFT REAR 		$199.66 1
4 470813541B
BRACKET
CONTACT YOUR AREA MANAGER-LEFT 		$1,470.36 1
4 470813542B
BRACKET
CONTACT YOUR AREA MANAGER-RIGHT 		$2,446.42 1
5 470813650E
SIDE MEMBER
CONTACT YOUR AREA MANAGER-RIGHT REAR 		$567.00 1
5 470813649K
SIDE MEMBER
CONTACT YOUR AREA MANAGER-LEFT REAR 		$595.77 1
6 CROSS MEMBER
CONTACT YOUR AREA MANAGER - INCLUDED IN REF. 1, TAB. 701.03-REAR 		- - Enquire
7 BUMPER CARRIER
SEE REF.14-REAR 		- - Enquire
8 N91000203
OVAL HEXAGON SOCKET HEAD BOLT
M8X25-H
IN STOCK 		$10.83 32
9 N90786503
HEXAGON HEAD BOLT (COMBI)
M8X20
IN STOCK 		$2.19 (69.4% off) 2
10 N90862302
HEXAGON HEAD BOLT (COMBI)
M8X40 		$5.77 2
11 8H0806221
COMPENSATING PIECE
IN STOCK 		$10.39 2
12 470854729A
Arm (rear)
REAR 		$52.62 2
13 N90944603
OVAL HEXAGON SOCKET HEAD BOLT
M5X12
IN STOCK 		$1.19 4
14 470807307E
BUMPER CARRIER
CONTACT YOUR AREA MANAGER-REAR 		$10,473.89 -
15 N90900402
HEX SOCKET OVAL HEAD COLLARED
M6X20
IN STOCK 		$1.43 (80.2% off) 4
16 4D0317867A
RUBBER BUSH
IN STOCK 		$8.08 2
17 470814908E
ARM
RIGHT REAR 		$550.72 1
18 470813983A
ARM
RIGHT REAR 		$1,089.93 1
19 470813381
ARM
CONTACT YOUR AREA MANAGER-RIGHT REAR 		$1,001.09 1
20 470814942C
BRACKET
CONTACT YOUR AREA MANAGER-REAR 		$79.72 1
