Lamborghini Aventador LP770 SVJ Coupe - TIMING CHAIN

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
GEAR Enquire To Order
Photo Part No Description Price (each) Stock
CHAIN TENSIONER Enquire To Order
Photo Part No Description Price (each) Stock
7M115235B SLIDING SHOE $1,869.44 To Order
Photo Part No Description Price (each) Stock
7M109120B LOWER TIMING CHAIN $171.88 IN STOCK
Photo Part No Description Price (each) Stock
WHT005010A COUNTERSUNK BOLT $49.88 To Order
Photo Part No Description Price (each) Stock
WHT005401A COUNTERSUNK BOLT $47.05 To Order
Photo Part No Description Price (each) Stock
N10689302 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD $3.40 IN STOCK
Photo Part No Description Price (each) Stock
BEARING SHELL Enquire To Order
Photo Part No Description Price (each) Stock
7M109350B LENGTH-MEASURING DEVICE $318.70 To Order
Photo Part No Description Price (each) Stock
7M109567D GEAR $1,467.95 To Order
Photo Part No Description Price (each) Stock
7M109225G AXLE SHAFT $2,390.08 To Order
Photo Part No Description Price (each) Stock
7M109229A TIMING CHAIN $1,380.10 To Order
Photo Part No Description Price (each) Stock
GLIDE PIECE Enquire To Order
Photo Part No Description Price (each) Stock
7M109077C CHAIN TENSIONER $1,240.85 To Order
Photo Part No Description Price (each) Stock
3F109507B CHAIN TENSIONER $86.71 To Order
Photo Part No Description Price (each) Stock
7M109248 BEARING SHELL $249.47 IN STOCK
Photo Part No Description Price (each) Stock
7M103147 GASKET FOR FLAP $29.75 IN STOCK
Photo Part No Description Price (each) Stock
7M103171F COVER FOR TIMING CASE $2,176.82 To Order
Photo Part No Description Price (each) Stock
7M103070A SEAL $120.16 IN STOCK
Photo Part No Description Price (each) Stock
7M109498 CHAIN TENSIONER $1,317.38 To Order
Photo Part No Description Price (each) Stock
7M109133C BRACKET $28.13 IN STOCK
Photo Part No Description Price (each) Stock
GEAR SET Enquire To Order
Photo Part No Description Price (each) Stock
7M109264A MOUNTING $192.48 IN STOCK
Photo Part No Description Price (each) Stock
WHT003048 WASHER 22 X 28 X 1.5 $3.43 IN STOCK
View All

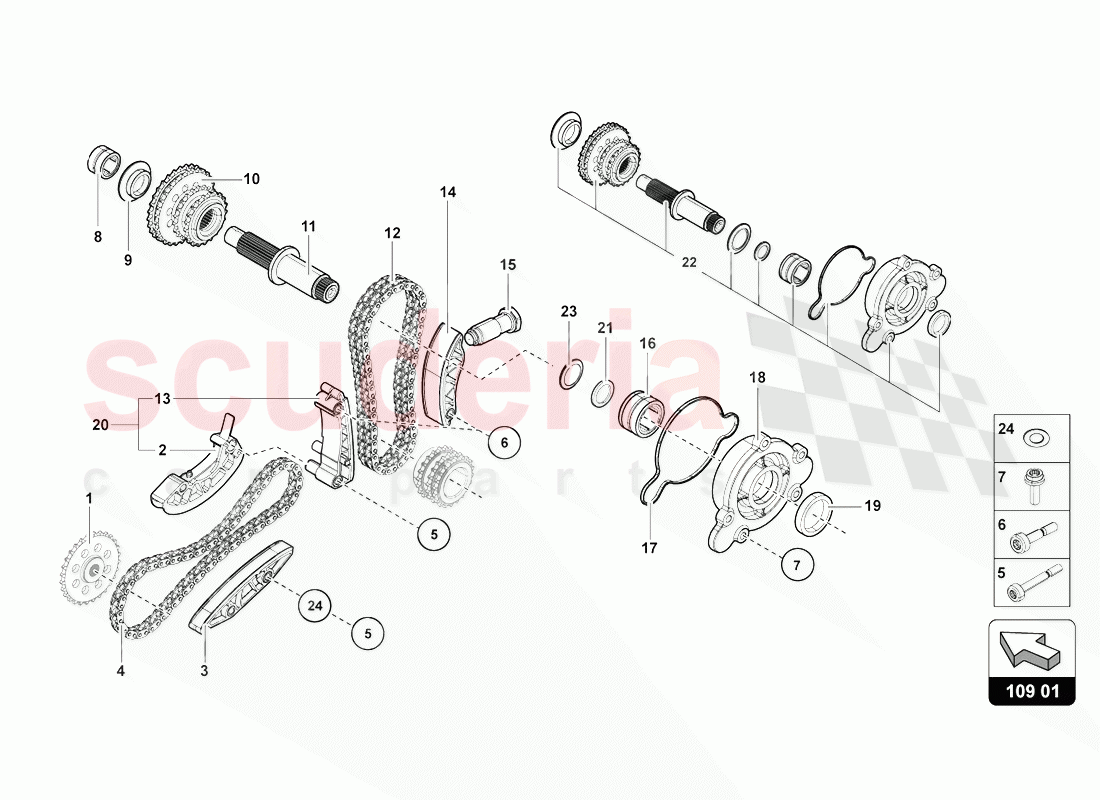

TIMING CHAIN of Lamborghini Lamborghini Aventador LP770 SVJ Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 GEAR
NOT AVAILABLE 		- - Enquire
2 CHAIN TENSIONER
CANNOT BE SOLD SEPARATELY, INCLUDED IN REF. 20 		- - Enquire
3 7M115235B
SLIDING SHOE 		$1,869.44 1
4 7M109120B
LOWER TIMING CHAIN
IN STOCK 		$171.88 1
5 WHT005010A
COUNTERSUNK BOLT
M8X60 		$49.88 3
6 WHT005401A
COUNTERSUNK BOLT
M8X44 		$47.05 2
7 N10689302
SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD
M8X25
IN STOCK 		$3.40 (52.6% off) 5
8 BEARING SHELL
NOT AVAILABLE 		- - Enquire
9 7M109350B
LENGTH-MEASURING DEVICE 		$318.70 1
10 7M109567D
GEAR 		$1,467.95 1
11 7M109225G
AXLE SHAFT 		$2,390.08 1
12 7M109229A
TIMING CHAIN
LOWER 		$1,380.10 1
13 GLIDE PIECE
CANNOT BE SOLD SEPARATELY, INCLUDED IN REF. 20 		- - Enquire
14 7M109077C
CHAIN TENSIONER 		$1,240.85 1
15 3F109507B
CHAIN TENSIONER 		$86.71 1
16 7M109248
BEARING SHELL
IN STOCK 		$249.47 1
17 7M103147
GASKET FOR FLAP
IN STOCK 		$29.75 1
18 7M103171F
COVER FOR TIMING CASE 		$2,176.82 1
19 7M103070A
SEAL
IN STOCK 		$120.16 1
20 7M109498
CHAIN TENSIONER 		$1,317.38 1
21 7M109133C
BRACKET
IN STOCK 		$28.13 1
22 GEAR SET
VALID FOR MY12 		- - Enquire
23 7M109264A
MOUNTING
IN STOCK 		$192.48 1
24 WHT003048
WASHER 22 X 28 X 1.5
22.0X28.0X1. 5
IN STOCK 		$3.43 1
