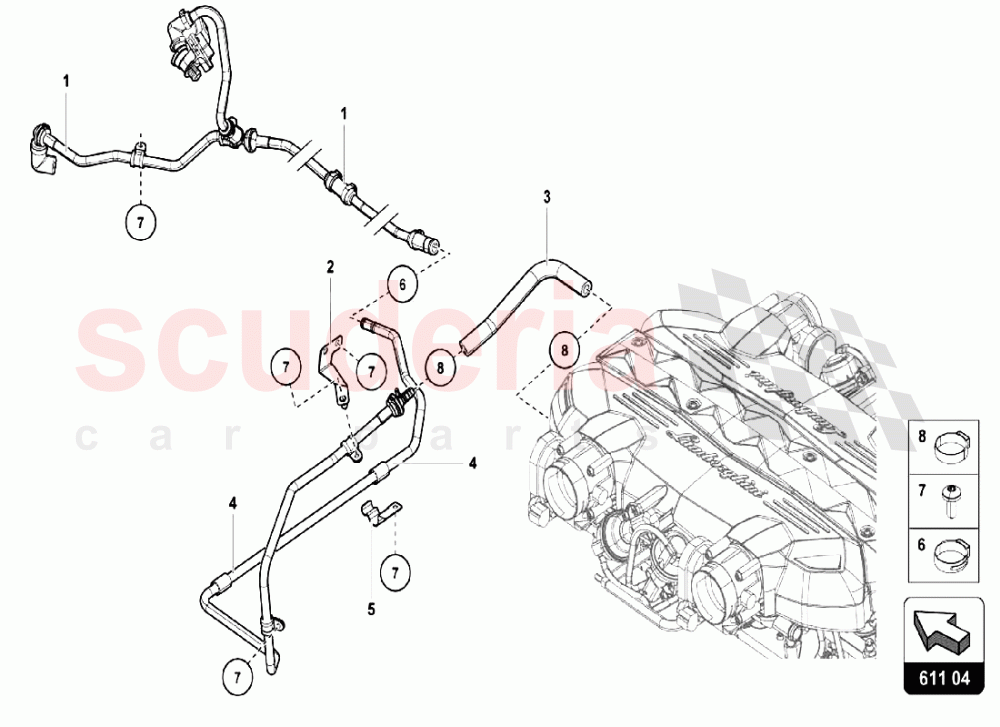

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	472611931A	VACUUM HOSE	472611931A VACUUM HOSE RHD	$410.21	1
001	471611931B	VACUUM HOSE	471611931B VACUUM HOSE LHD	$362.54	1
002	470810323C	ARM	470810323C ARM	$36.70	1
003	470611939A	VACUUM HOSE	470611939A VACUUM HOSE	$45.60	1
004	470611938B	VACUUM HOSE	470611938B VACUUM HOSE	$96.23	1
005	470813454	ARM	470813454 ARM	$23.41	2
006	N10201901	CLAMP	N10201901 CLAMP	$1.94 MSRP: ~~7.10~~ (72.7% off)	1
007	N91096701	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N91096701 OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	$1.53	7
008	N10255601	CLAMP	N10255601 CLAMP	$1.94 MSRP: ~~7.10~~ (72.7% off)	2
