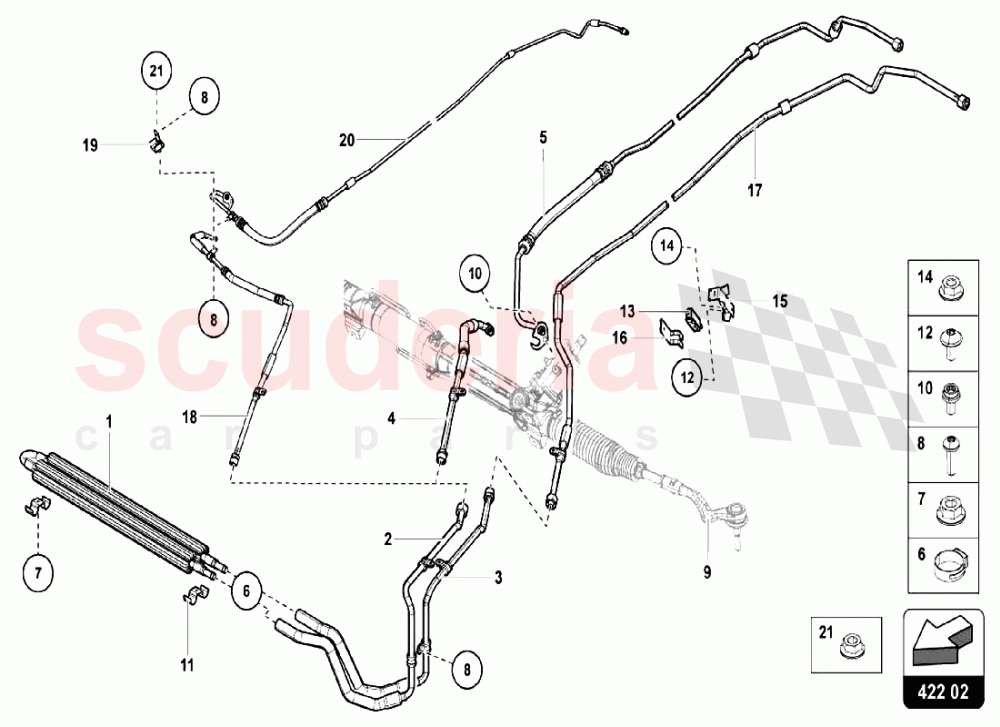

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	400422886A	OIL COOLER IN STOCK	400422886A OIL COOLER IN STOCK	$519.74	1
002	471422898B	Oil Hose	471422898B Oil Hose	$275.44	1
003	470422857F	Return Hose	470422857F Return Hose	$197.00	1
004	471422891C	RETURN HOSE	471422891C RETURN HOSE LHD	$260.38	1
005	471422893F	OIL PRESSURE LINE	471422893F OIL PRESSURE LINE	$414.10	1
005	472422893D	OIL PRESSURE LINE	472422893D OIL PRESSURE LINE	$513.21	1
006	N10197601	EAR CRIMP HOSE CLAMP IN STOCK	N10197601 EAR CRIMP HOSE CLAMP IN STOCK	$1.33 MSRP: ~~7.18~~ (81.5% off)	2
007	N10017307	HEXAGON COLLAR NUT IN STOCK	N10017307 HEXAGON COLLAR NUT IN STOCK	$1.89 MSRP: ~~7.33~~ (74.2% off)	2
008	N10124304	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N10124304 OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	$1.69	5
010	N10664901	SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD IN STOCK	N10664901 SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD IN STOCK	$3.32 MSRP: ~~7.27~~ (54.3% off)	1
011	400422871D	MOUNTING BAR IN STOCK	400422871D MOUNTING BAR IN STOCK	$6.84	2
012	N90898101	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N90898101 OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	$2.14 MSRP: ~~7.01~~ (69.5% off)	3
013	420201190A	CLIP	420201190A CLIP	$8.91	1
014	N10017304	HEXAGON COLLAR NUT IN STOCK	N10017304 HEXAGON COLLAR NUT IN STOCK	$1.89	1
015	470422871	MOUNTING BAR	470422871 MOUNTING BAR	$22.27	1
016	420611793A	BRACKET	420611793A BRACKET	$4.02	1
017	470422859E	RETURN PIPE	470422859E RETURN PIPE	$262.25	1
