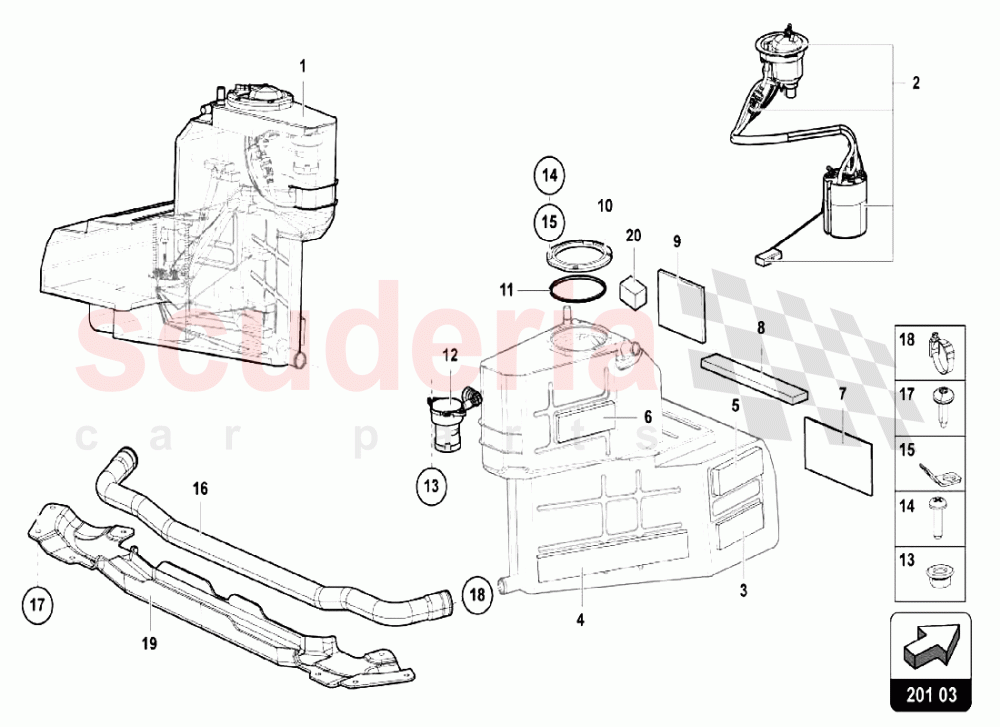

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	470201022F	RH TANK	470201022F RH TANK	$3,818.64	1
002	470906091C	FUEL PUMP	470906091C FUEL PUMP	$2,042.82	1
003	470201615D	PROTECTION	470201615D PROTECTION	$59.65	1
004	470201615E	PROTECTION	470201615E PROTECTION	$133.95	1
005	470201615C	PROTECTION	470201615C PROTECTION	$16.15	1
006	470201615G	PROTECTION	470201615G PROTECTION	$13.09	1
007	470201615B	PROTECTION	470201615B PROTECTION	$71.86	1
008	470201615A	PROTECTION	470201615A PROTECTION	$109.51	1
009	470201615K	PROTECTION	470201615K PROTECTION	$25.04	1
010	470201099	LOCATING FLANGE	470201099 LOCATING FLANGE	$341.74	1
011	470201209	SEAL	470201209 SEAL	$53.34	1
012	470201521A	CHECK VALVE	470201521A CHECK VALVE	$209.67	1
013	N10017304	HEXAGON COLLAR NUT IN STOCK	N10017304 HEXAGON COLLAR NUT IN STOCK	$1.88	2
014	N10430104	HEXAGON SOCKET FLAT HEAD BOLT	N10430104 HEXAGON SOCKET FLAT HEAD BOLT	$1.62 MSRP: ~~7.29~~ (77.8% off)	5
015	400201211	EARTHING STRAP	400201211 EARTHING STRAP	$0.95 MSRP: ~~7.23~~ (86.9% off)	1
016	470201787D	CONNECTING PIPE	470201787D CONNECTING PIPE	$445.64	1
017	N90900401	HEX SOCKET OVAL HEAD COLLARED M6 X 20 IN STOCK	N90900401 HEX SOCKET OVAL HEAD COLLARED M6 X 20 IN STOCK	$2.20	8
018	N91104001	SPRING BAND CLAMP	N91104001 SPRING BAND CLAMP	$6.01	2
019	470201259	PROTECTION	470201259 PROTECTION	$366.85	1
020	470201615J	PROTECTION	470201615J PROTECTION	$12.04	1
