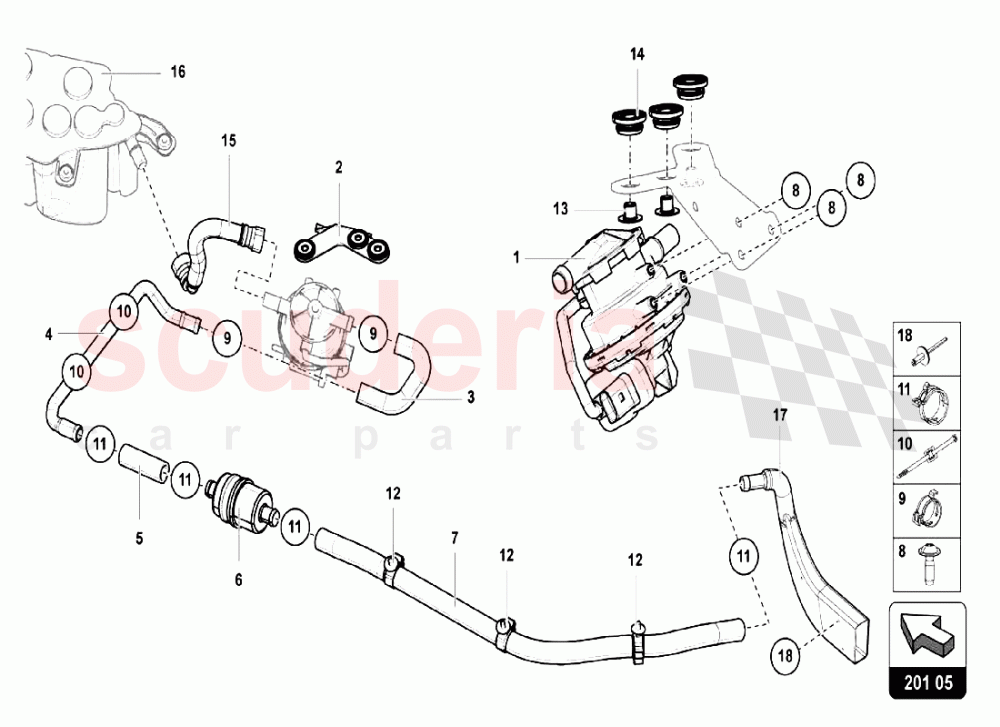

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	3C0906271A	DIAGNOSIS PUMP FOR FUEL SYSTEM	3C0906271A DIAGNOSIS PUMP FOR FUEL SYSTEM	$1,871.80	1
002	470201369	BRACKET	470201369 BRACKET	$30.07	1
003	470201153	PIPE	470201153 PIPE	$209.76	1
004	470131491A	PIPE	470131491A PIPE	$159.62	1
005	470201148	PIPE	470201148 PIPE	$385.65	1
006	4D0906321C	FUEL FILTER IN STOCK	4D0906321C FUEL FILTER IN STOCK	$39.47	1
007	470133739	Breather Line	470133739 Breather Line	$282.34	1
008	N90829802	HEXAGON SOCKET HEAD PANEL BOLT	N90829802 HEXAGON SOCKET HEAD PANEL BOLT	$180.93	3
009	N90686901	SPRING BAND CLAMP IN STOCK	N90686901 SPRING BAND CLAMP IN STOCK	$5.77	2
010	3D0971838M	CABLE TIE WITH TERMINAL SOCKET IN STOCK	3D0971838M CABLE TIE WITH TERMINAL SOCKET IN STOCK	$2.84	2
010	3D0971838L	CABLE TIE WITH TERMINAL SOCKET IN STOCK	3D0971838L CABLE TIE WITH TERMINAL SOCKET IN STOCK	$2.84	1
011	4B0422379A	SPRING BAND CLAMP	4B0422379A SPRING BAND CLAMP	$2.84 MSRP: ~~7.13~~ (60.2% off)	4
012	N90686901	SPRING BAND CLAMP IN STOCK	N90686901 SPRING BAND CLAMP IN STOCK	$5.77	3
013	8Z0129734	BUSH IN STOCK	8Z0129734 BUSH IN STOCK	$7.97	3
014	8Z0129669A	GROMMET IN STOCK	8Z0129669A GROMMET IN STOCK	$5.88	3
015	470906272	VENT HOSE	470906272 VENT HOSE	$54.67	1
017	470117157C	BREATHER LINE	470117157C BREATHER LINE	$92.28	1
018	N90248401	POP RIVET IN STOCK	N90248401 POP RIVET IN STOCK	$1.62 MSRP: ~~7.36~~ (78% off)	3
