REAR DIFFERENTIAL of Lamborghini Lamborghini Aventador LP750 SV Coupe

View All

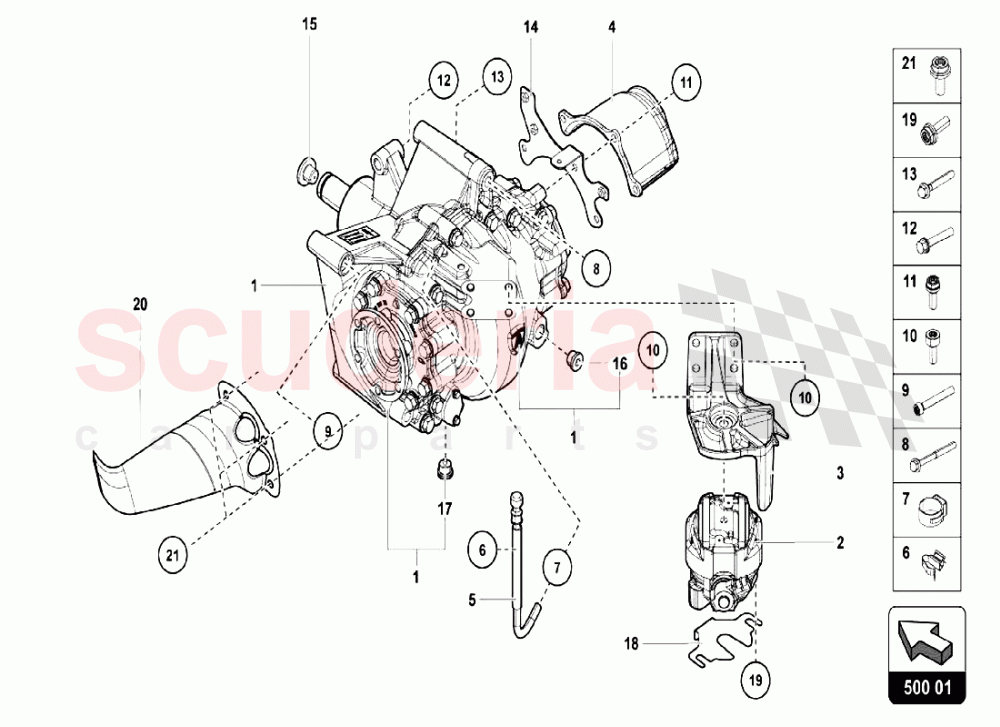

Lamborghini Aventador LP750 SV Coupe - REAR DIFFERENTIAL

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	B9500043C	REAR DIFFERENTIAL	B9500043C REAR DIFFERENTIAL	$16,314.42	1
002	420199381T	ENGINE MOUNTING	420199381T ENGINE MOUNTING	$525.80	1
003	470199353A	BRACKET	470199353A BRACKET	$2,358.63	1
004	470501713	HEAT SHIELD	470501713 HEAT SHIELD	$414.03	1
005	B9525049B	VENT HOSE	B9525049B VENT HOSE	$41.10	1
006	7L0301565A	CLIP	7L0301565A CLIP	$1.33 MSRP: ~~7.19~~ (81.5% off)	1
007	N10198301	EAR CRIMP HOSE CLAMP IN STOCK	N10198301 EAR CRIMP HOSE CLAMP IN STOCK	$2.76	1
008	N10716901	HEX COLLARED BOLT IN STOCK	N10716901 HEX COLLARED BOLT IN STOCK	$13.75	2
009	N10640301	HEX COLLARED BOLT IN STOCK	N10640301 HEX COLLARED BOLT IN STOCK	$6.95	1
010	N91137001	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	N91137001 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	$16.56	5
011	N91048802	SCREW WITH INT. SERRATIONS IN STOCK	N91048802 SCREW WITH INT. SERRATIONS IN STOCK	$32.20	3
012	N90961103	RIBBED BOLT	N90961103 RIBBED BOLT	$7.35 MSRP: ~~7.45~~ (1.3% off)	1
013	N10640901	HEX COLLARED BOLT	N10640901 HEX COLLARED BOLT	$8.60	1
014	470525783	MOUNTING BAR	470525783 MOUNTING BAR	$29.31	1
015	1S409966	END CAP	1S409966 END CAP	$15.18	1
016	B9525820	PLUGS M18 X 1.5 IN STOCK	B9525820 PLUGS M18 X 1.5 IN STOCK	$14.12 MSRP: ~~20.75~~ (32% off)	1
017	B9525151	OIL DRAIN PLUG, MAGNETIC IN STOCK	B9525151 OIL DRAIN PLUG, MAGNETIC IN STOCK	$22.76 MSRP: ~~50.50~~ (54.9% off)	1
018	470199137A	1 MM SHIM	470199137A 1 MM SHIM	$351.30	1
018	470199137B	2 MM SHIM	470199137B 2 MM SHIM	$353.80	1
018	470199137	0,5 MM SHIM	470199137 0,5 MM SHIM	$350.03	1
019	N10689301	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	N10689301 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	$3.40	2
020	470501721C	HEAT SHIELD IN STOCK	470501721C HEAT SHIELD IN STOCK	$327.11 MSRP: ~~405.00~~ (19.2% off)	1
021	N10717001	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	N10717001 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	$3.32 MSRP: ~~7.22~~ (54% off)	3
