AIR CONDITIONING SYSTEM 1 of Lamborghini Lamborghini Aventador LP750 SV Coupe

View All

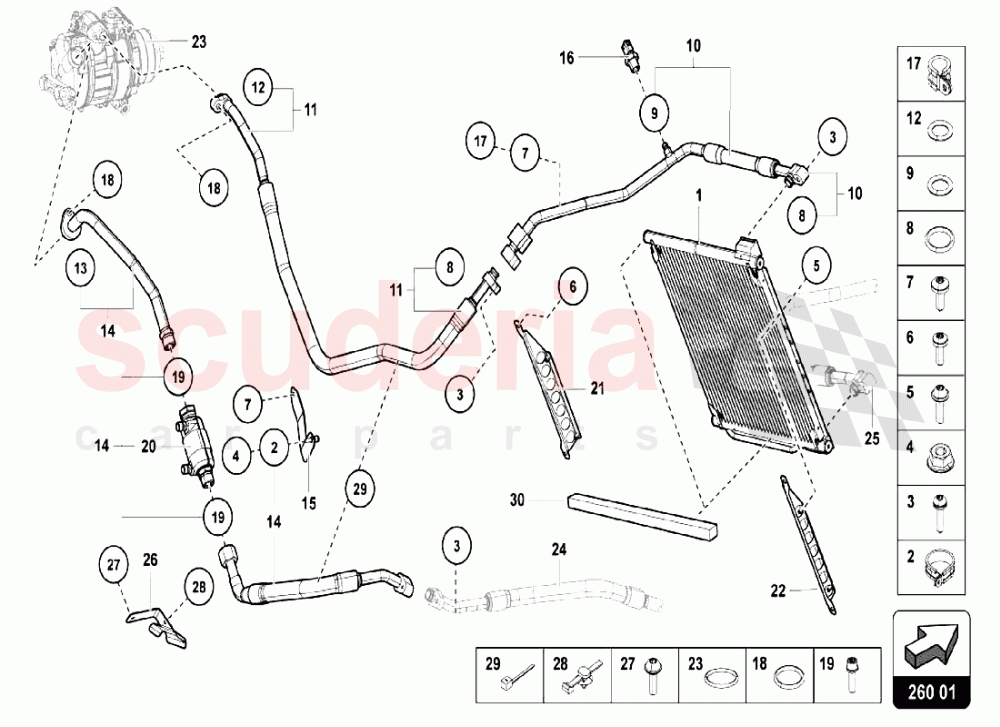

Lamborghini Aventador LP750 SV Coupe - AIR CONDITIONING SYSTEM 1

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	470260401A	AIR CONDITIONING CONDENSER	470260401A AIR CONDITIONING CONDENSER	$955.54	1
002	N90942301	CLAMP	N90942301 CLAMP	$9.74	1
003	N10347204	HEXAGON SOCKET HEAD BOLT, SELF-LOCKING	N10347204 HEXAGON SOCKET HEAD BOLT, SELF-LOCKING	$2.14 MSRP: ~~7.26~~ (70.5% off)	3
004	N01508213	HEXAGON COLLAR NUT IN STOCK	N01508213 HEXAGON COLLAR NUT IN STOCK	$0.19	1
005	N10569501	ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD IN STOCK	N10569501 ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD IN STOCK	$2.33	4
006	N10451408	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N10451408 OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	$1.62	4
007	N91096701	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N91096701 OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	$1.53	2
008	4E0260749B	SEAL RING	4E0260749B SEAL RING	$6.22 MSRP: ~~7.06~~ (11.9% off)	2
009	7H0820896	O-RING	7H0820896 O-RING	$5.47 MSRP: ~~7.21~~ (24.1% off)	1
010	470260702D	FLANGED PIPE	470260702D FLANGED PIPE	$303.15	1
011	470260701B	FLANGED PIPE	470260701B FLANGED PIPE	$371.57	1
012	4E0260749A	O-RING 11 X 2.5 IN STOCK	4E0260749A O-RING 11 X 2.5 IN STOCK	$6.43 MSRP: ~~7.06~~ (8.9% off)	1
013	8E0260749C	SEAL RING	8E0260749C SEAL RING	$5.29 MSRP: ~~7.09~~ (25.4% off)	1
014	470260709C	FLANGED PIPE	470260709C FLANGED PIPE	$1,707.13	1
015	470201809	BRACKET	470201809 BRACKET	$31.70	1
016	5Q0959126B	PRESSURE SENDER FOR REFRIGERANT CIRCUIT IN STOCK	5Q0959126B PRESSURE SENDER FOR REFRIGERANT CIRCUIT IN STOCK	$120.59	1
017	N0206405	CLAMP	N0206405 CLAMP	$1.89 MSRP: ~~7.07~~ (73.3% off)	1
018	N10414402	SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD IN STOCK	N10414402 SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD IN STOCK	$3.22 MSRP: ~~7.07~~ (54.5% off)	2
021	470260427A	BRACKET	470260427A BRACKET	$37.53	1
022	470260428A	BRACKET	470260428A BRACKET	$37.53	1
026	470260761	BRACKET	470260761 BRACKET	$36.03	1
027	N91032702	ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD IN STOCK	N91032702 ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD IN STOCK	$1.69	1
028	3W0971838	CABLE TIES	3W0971838 CABLE TIES	$1.14 MSRP: ~~7.23~~ (84.2% off)	1
029	N10562301	CABLE TIES	N10562301 CABLE TIES	$1.25 MSRP: ~~7.18~~ (82.6% off)	2
030	470260423	SPONGE	470260423 SPONGE	$48.02	2
