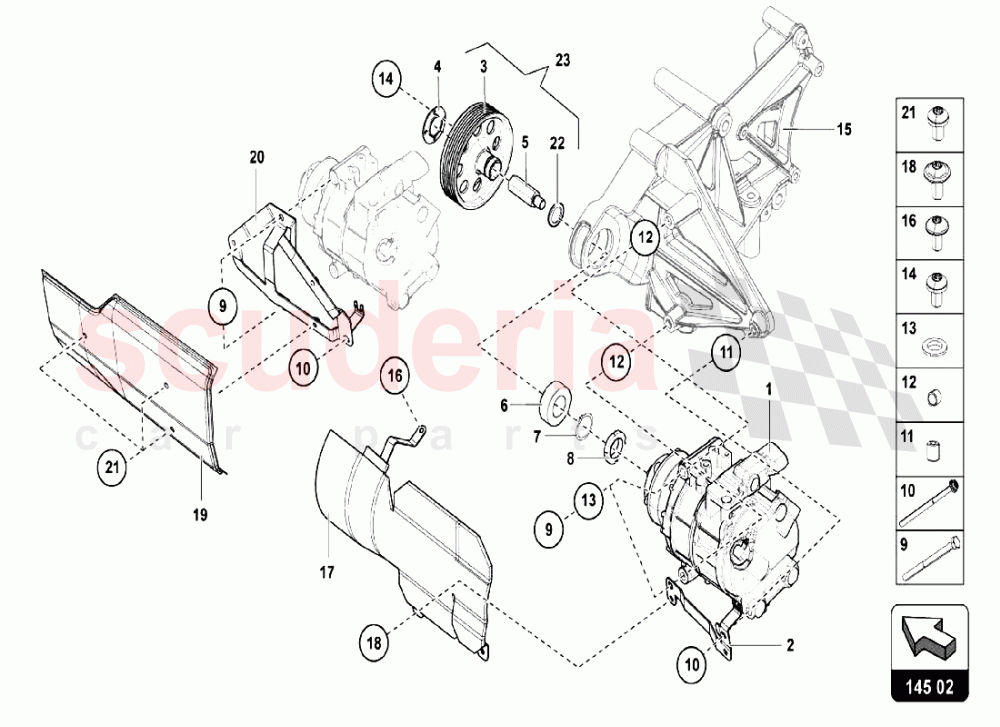

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	8K0260805H	AIR CONDITIONING COMPRESSOR IN STOCK	8K0260805H AIR CONDITIONING COMPRESSOR IN STOCK	$1,099.00	1
003	470260810E	PULLEY (FROM VIN DLA1411 INTERCHANGEABLE 1 TO 1)	470260810E PULLEY (FROM VIN DLA1411 INTERCHANGEABLE 1 TO 1)	$1,004.42	1
004	470260877	COVER	470260877 COVER	$232.03	1
005	470260095A	INPUT SHAFT	470260095A INPUT SHAFT	$441.45	1
006	470260097C	DEEP GROOVE BALL BEARING	470260097C DEEP GROOVE BALL BEARING	$136.85	1
007	470260721	SEEGER 50.5X1.75	470260721 SEEGER 50.5X1.75	$6.24	1
008	WHT005222	UNION NUT IN STOCK	WHT005222 UNION NUT IN STOCK	$52.40	1
009	N10531802	SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD	N10531802 SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD	$27.95	1
010	N10561102	HEX COLLARED BOLT	N10561102 HEX COLLARED BOLT	$7.74	1
011	470260845	LENGTH-MEASURING DEVICE	470260845 LENGTH-MEASURING DEVICE	$195.93	1
012	3L260817	CENTRE SLEEVE IN STOCK	3L260817 CENTRE SLEEVE IN STOCK	$2.10 MSRP: ~~7.10~~ (70.4% off)	2
014	N10406602	OVAL HEXAGON SOCKET HEAD BOLT	N10406602 OVAL HEXAGON SOCKET HEAD BOLT	$0.31	4
019	470260963	GUARD PLATE	470260963 GUARD PLATE	$1,952.58	1
020	470260081	ARM	470260081 ARM	$189.54	1
021	N90737804	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	N90737804 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	$1.15 MSRP: ~~7.31~~ (84.3% off)	3
022	N90809103	SEAL RING IN STOCK	N90809103 SEAL RING IN STOCK	$3.35	1
