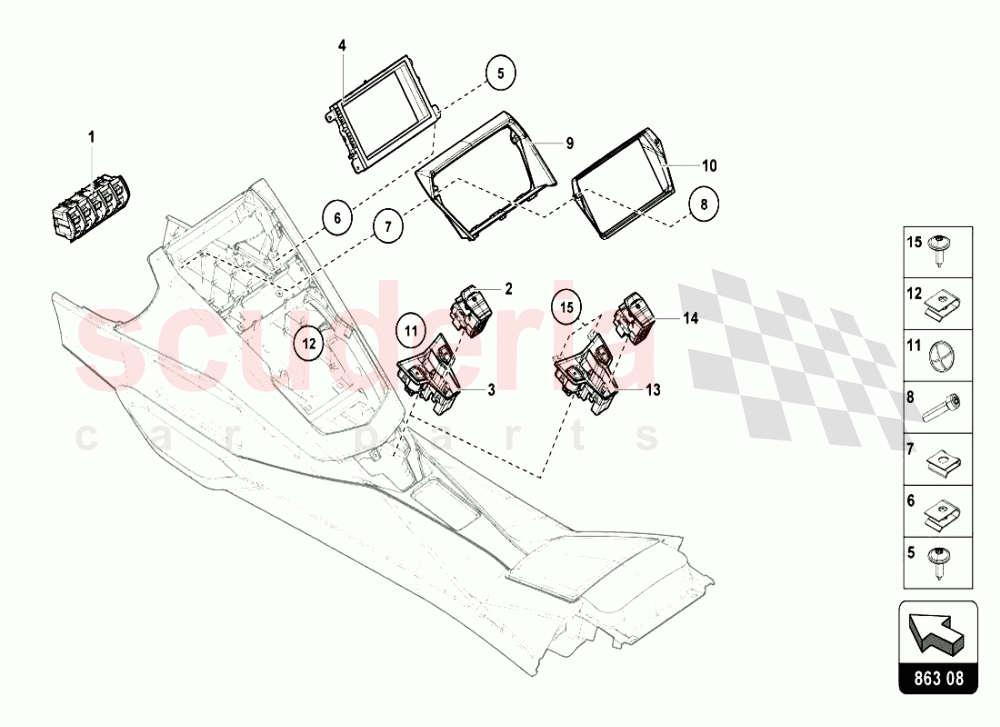

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	470941531B	SWITCH UNIT	470941531B SWITCH UNIT	$1,570.32	1
004	8R0919604A	DISPLAY UNIT	8R0919604A DISPLAY UNIT	$1,339.13	1
005	N90986803	HEXAGON SOCKET HEAD PANEL BOLT 2 X13 IN STOCK	N90986803 HEXAGON SOCKET HEAD PANEL BOLT 2 X13 IN STOCK	$1.37	4
006	N0154487	SPEED NUT IN STOCK	N0154487 SPEED NUT IN STOCK	$1.00	4
007	N90526602	SPEED NUT M4 X 13.6 X 15 IN STOCK	N90526602 SPEED NUT M4 X 13.6 X 15 IN STOCK	$1.19 MSRP: ~~7.31~~ (83.7% off)	2
008	WHT003088	HEXAGON SOCKET FLAT HEAD BOLT IN STOCK	WHT003088 HEXAGON SOCKET FLAT HEAD BOLT IN STOCK	$0.44 MSRP: ~~7.33~~ (94% off)	2
009	470863567	CORNER TRIM	470863567 CORNER TRIM	$68.20	1
009	470863567A	CORNER TRIM	470863567A CORNER TRIM	$3,553.53	1
010	470919180	ORNAMENT	470919180 ORNAMENT	$174.56	1
010	470919180A	ORNAMENT (CARBON INTERIOR )	470919180A ORNAMENT (CARBON INTERIOR )	$4,148.77	1
012	N90475903	SPEED NUT IN STOCK	N90475903 SPEED NUT IN STOCK	$1.19 MSRP: ~~7.19~~ (83.4% off)	2
013	470863347C	SWITCH MOUNTING	470863347C SWITCH MOUNTING	$599.35	1
014	470927225B	SWITCH FOR ELECTROMECHANICAL PARKING BRAKE -EPB-	470927225B SWITCH FOR ELECTROMECHANICAL PARKING BRAKE -EPB-	$194.58	1
015	N90944603	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N90944603 OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	$1.19	2
