REAR DRIVE SHAFT of Lamborghini Lamborghini Aventador LP700 Roadster

View All

Lamborghini Aventador LP700 Roadster - REAR DRIVE SHAFT

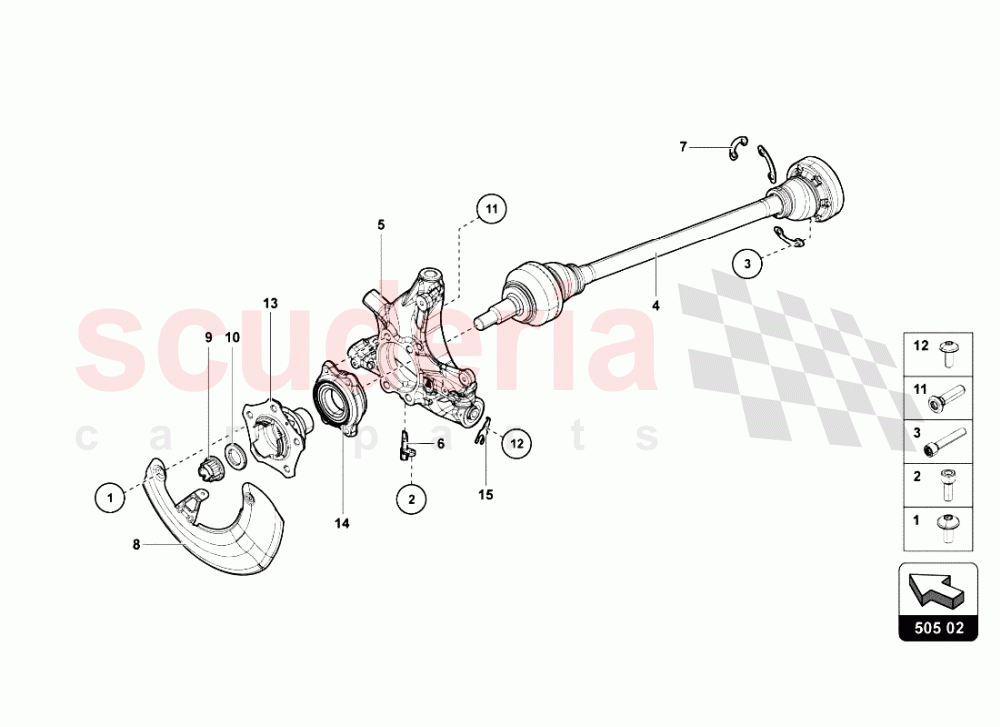

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	N90737804	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	N90737804 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	$1.23 MSRP: ~~7.31~~ (83.2% off)	6
002	N01474011	SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD	N01474011 SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD	$2.38 MSRP: ~~7.33~~ (67.5% off)	2
003	N10667901	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD M10 X 55 IN STOCK	N10667901 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD M10 X 55 IN STOCK	$2.99	12
004	470501203F	LH REAR OMOKINETIC DRIVE SHAFT (CONTACT YOUR AREA MANAGER)	470501203F LH REAR OMOKINETIC DRIVE SHAFT (CONTACT YOUR AREA MANAGER)	$2,131.61	1
004	470501204F	RH REAR OMOKINETIC DRIVE SHAFT (CONTACT YOUR AREA MANAGER)	470501204F RH REAR OMOKINETIC DRIVE SHAFT (CONTACT YOUR AREA MANAGER)	$7,949.67	1
005	470505433D	REAR LEFT HUB CARRIER (UNTIL THE VIN GLA04209 - CONTACT YOUR AREA MANAGER)	470505433D REAR LEFT HUB CARRIER (UNTIL THE VIN GLA04209 - CONTACT YOUR AREA MANAGER)	$1,260.16	1
005	470505434D	REAR RIGHT HUB CARRIER (UNTIL THE VIN GLA04209 - CONTACT YOUR AREA MANAGER)	470505434D REAR RIGHT HUB CARRIER (UNTIL THE VIN GLA04209 - CONTACT YOUR AREA MANAGER)	$822.55	1
006	4E0927803F	SPEED SENSOR IN STOCK	4E0927803F SPEED SENSOR IN STOCK	$126.43	1
006	4E0927804F	SPEED SENSOR	4E0927804F SPEED SENSOR	$122.40	1
007	7L0407357B	SPACER	7L0407357B SPACER	$1.94 MSRP: ~~7.14~~ (72.8% off)	6
008	470615612C	RH PROTECTION	470615612C RH PROTECTION	$116.01	1
008	470615611C	LH PROTECTION	470615611C LH PROTECTION	$116.01	1
009	WHT006779	12 POINT SOCKET SHOULDERED NUT SELF-LOCKING	WHT006779 12 POINT SOCKET SHOULDERED NUT SELF-LOCKING	$17.75	2
010	400501226	SPACER RING	400501226 SPACER RING	$46.73	2
011	WHT000237A	TRIPLE SQUARE BOLT M1 2X 1.5 X 45 IN STOCK	WHT000237A TRIPLE SQUARE BOLT M1 2X 1.5 X 45 IN STOCK	$6.95	8
012	N91055501	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N91055501 OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	$2.76 MSRP: ~~7.30~~ (62.2% off)	2
013	470501652B	WHEEL HUB	470501652B WHEEL HUB	$3,241.33	2
014	4E0407625F	DOUBLE (ANGLED) BALL BEARING WITH FLANGE IN STOCK	4E0407625F DOUBLE (ANGLED) BALL BEARING WITH FLANGE IN STOCK	$191.73	2
015	470971930	CABLE TERMINAL	470971930 CABLE TERMINAL	$14.40	2
