WATER COOLING SYSTEM 1 of Lamborghini Lamborghini Aventador LP700 Roadster

View All

Lamborghini Aventador LP700 Roadster - WATER COOLING SYSTEM 1

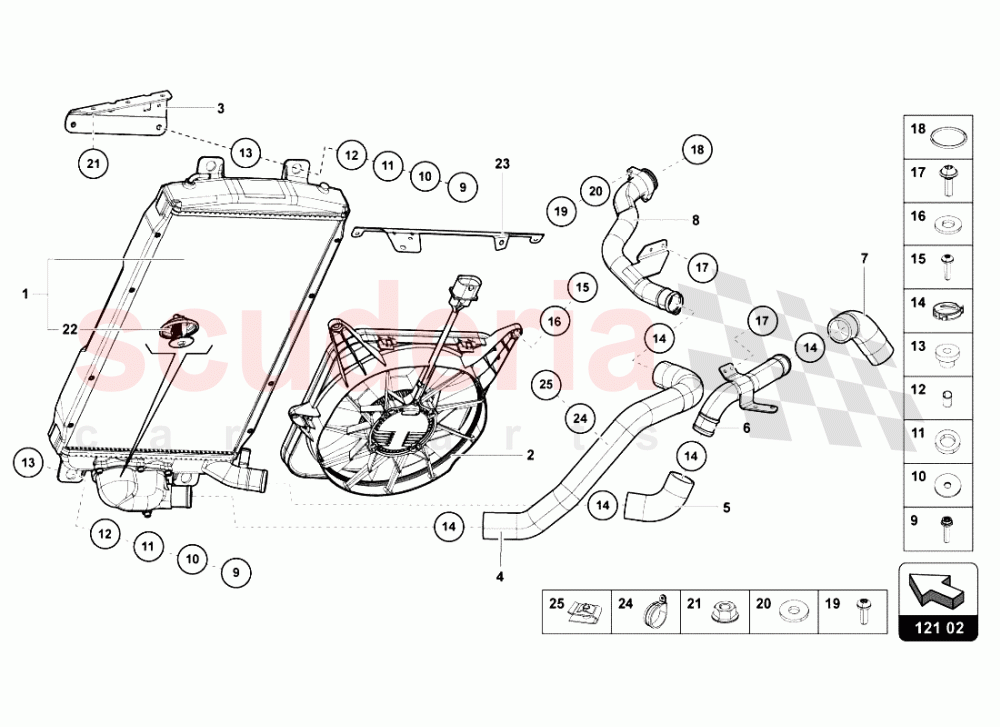

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
000	R8340120	REPAIR SET	R8340120 REPAIR SET	$9,873.36	1
001	470121253F	LH COMPLETE WATER RADIATOR	470121253F LH COMPLETE WATER RADIATOR	$1,906.72	1
002	470959455E	RADIATOR FAN WITH CONTROL UNIT IN STOCK	470959455E RADIATOR FAN WITH CONTROL UNIT IN STOCK	$2,689.10	1
003	470121703B	LH BRACKET	470121703B LH BRACKET	$26.92	1
004	470121057F	COOLANT HOSE	470121057F COOLANT HOSE	$400.18	1
004	470121057F	COOLANT HOSE	470121057F COOLANT HOSE	$400.18	1
005	470121061A	COOLANT HOSE IN STOCK	470121061A COOLANT HOSE IN STOCK	$295.41	1
006	470121397B	VENT HOSE	470121397B VENT HOSE	$198.83	1
007	470121107A	COOLANT HOSE IN STOCK	470121107A COOLANT HOSE IN STOCK	$126.97	1
008	470121051B	COOLANT HOSE DA MOT.A FLEX.	470121051B COOLANT HOSE DA MOT.A FLEX.	$504.27	1
009	N10533601	SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD	N10533601 SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD	$2.84	4
010	WHT001942	WASHER IN STOCK	WHT001942 WASHER IN STOCK	$3.08	4
011	WHT001189	PLASTIC WASHER IN STOCK	WHT001189 PLASTIC WASHER IN STOCK	$5.89	4
012	400121277	DISTANCE PIECE	400121277 DISTANCE PIECE	$9.79	4
013	400121268	RUBBER BUSH	400121268 RUBBER BUSH	$10.86	4
014	N90926501	SPRING BAND CLAMP IN STOCK	N90926501 SPRING BAND CLAMP IN STOCK	$9.74	5
015	N91071702	HEXAGON SOCKET FLAT HEAD BOLT IN STOCK	N91071702 HEXAGON SOCKET FLAT HEAD BOLT IN STOCK	$1.44 MSRP: ~~7.21~~ (80% off)	4
016	N0115478	WASHER IN STOCK	N0115478 WASHER IN STOCK	$0.28 MSRP: ~~7.36~~ (96.2% off)	4
017	N10558102	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	N10558102 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	$4.09	4
018	N90760301	O-RING 14MM IN STOCK	N90760301 O-RING 14MM IN STOCK	$24.63	1
019	N10196103	OVAL SOCKET HEAD BOLT WITH HEX DRIVE IN STOCK	N10196103 OVAL SOCKET HEAD BOLT WITH HEX DRIVE IN STOCK	$1.53	2
020	WHT003407	WASHER IN STOCK	WHT003407 WASHER IN STOCK	$0.50 MSRP: ~~7.31~~ (93.2% off)	2
021	N10609201	HEXAGON COLLAR NUT IN STOCK	N10609201 HEXAGON COLLAR NUT IN STOCK	$2.15 MSRP: ~~7.34~~ (70.7% off)	3
022	470121113A	COOLANT REGULATOR	470121113A COOLANT REGULATOR	$558.43	1
023	470821471	SUPPORT FOR COOLANT RADIATOR	470821471 SUPPORT FOR COOLANT RADIATOR	$43.66	1
024	N90942301	CLAMP	N90942301 CLAMP	$9.74	1
025	N90688703	SPEED NUT CLAMP M6 X 23 8 X 16 IN STOCK	N90688703 SPEED NUT CLAMP M6 X 23 8 X 16 IN STOCK	$1.23	1
026	470121041	SEAL RING 14 X 2.62 IN STOCK	470121041 SEAL RING 14 X 2.62 IN STOCK	$33.81	1
