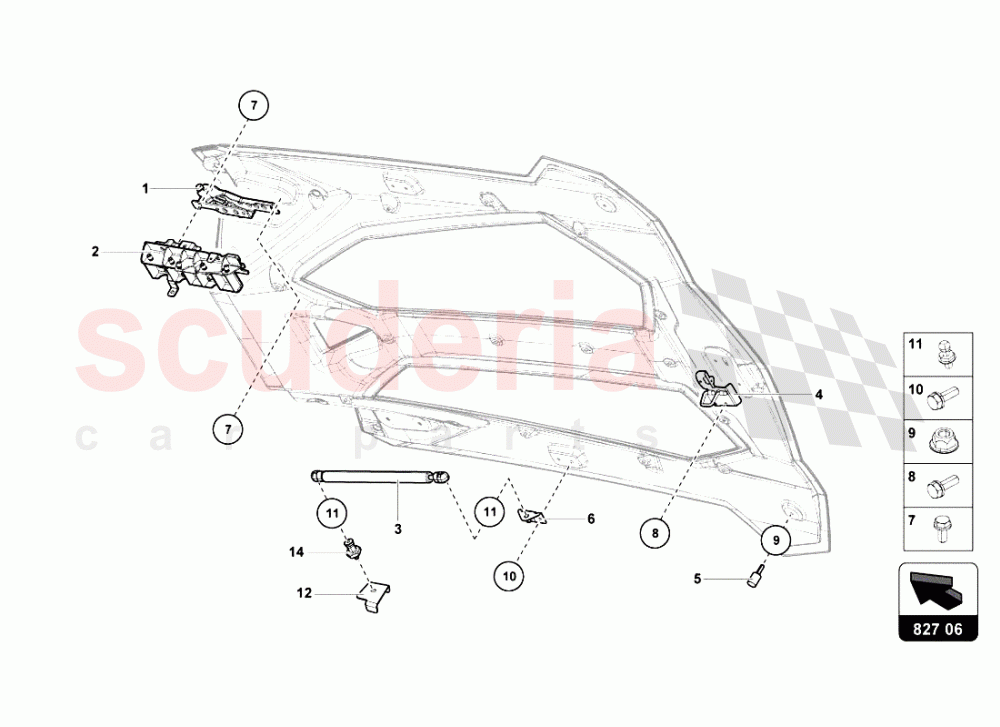

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	475827301A	LID HINGE	475827301A LID HINGE	$196.32	1
001	475827302A	LID HINGE	475827302A LID HINGE	$196.32	1
002	475827393C	BRACKET	475827393C BRACKET	$270.39	1
002	475827394C	BRACKET	475827394C BRACKET	$278.53	1
003	417827379	GAS FILLED STRUT	417827379 GAS FILLED STRUT	$85.84	2
003	418827401A	GAS STRUT REAR HOOD IN STOCK	418827401A GAS STRUT REAR HOOD IN STOCK	$108.33	2
004	400827518B	STRIKER IN STOCK	400827518B STRIKER IN STOCK	$21.84	1
005	400807333	SUPPORT	400807333 SUPPORT	$33.81	2
006	470827523	BRACKET FOR TENSION SPRING	470827523 BRACKET FOR TENSION SPRING	$35.59	2
007	N90643905	HEXAGON HEAD BOLT (COMBI) IN STOCK	N90643905 HEXAGON HEAD BOLT (COMBI) IN STOCK	$2.76 MSRP: ~~7.13~~ (61.3% off)	8
008	N10558102	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	N10558102 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	$4.09	3
009	N01111611	HEXAGON NUT	N01111611 HEXAGON NUT	$1.83 MSRP: ~~7.29~~ (74.9% off)	2
010	N10558102	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	N10558102 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	$4.09	4
011	6X0827439	JOURNAL	6X0827439 JOURNAL	-	4	Enquire
012	475827065	BRACKET FOR TENSION SPRING	475827065 BRACKET FOR TENSION SPRING	$365.05	1
012	475827066	BRACKET FOR TENSION SPRING	475827066 BRACKET FOR TENSION SPRING	$89.71	1
014	400103145	SPACER	400103145 SPACER	$28.04	2
