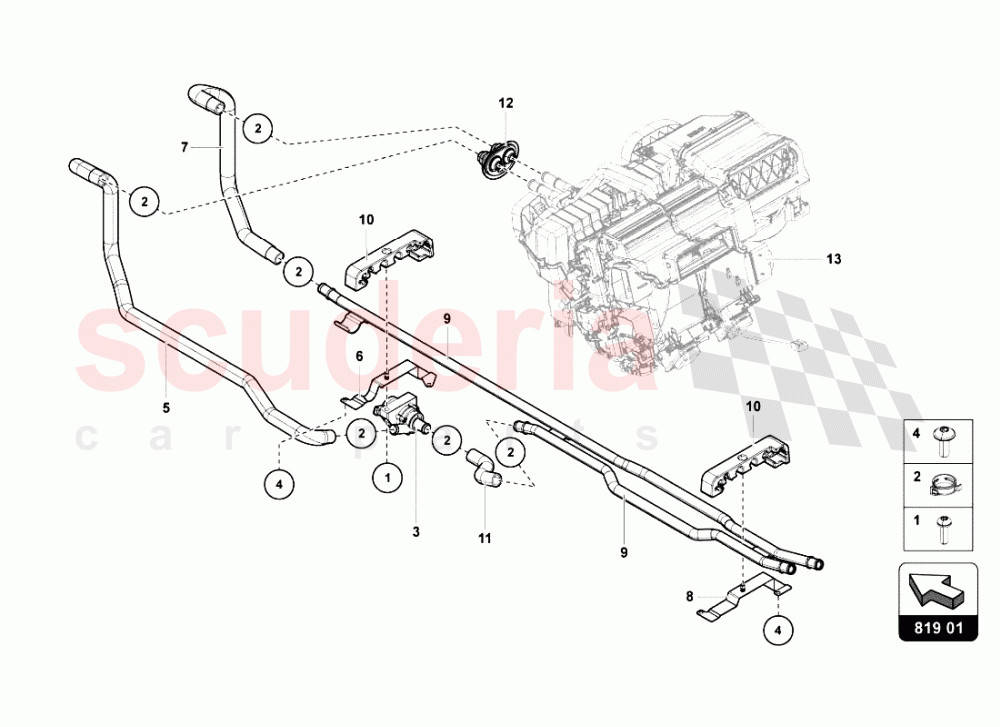

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	N10124304	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N10124304 OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	$1.69	1
002	N90687001	SPRING BAND CLAMP IN STOCK	N90687001 SPRING BAND CLAMP IN STOCK	$7.04	6
003	1K0965561G	ADDITIONAL COOLANT PUMP	1K0965561G ADDITIONAL COOLANT PUMP	$282.67	1
004	N90780903	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N90780903 OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	$0.91	4
005	470819372A	PIPE	470819372A PIPE	$161.93	1
006	470803617A	BRACKET FOR COOLANT PIPE	470803617A BRACKET FOR COOLANT PIPE	$38.02	1
007	470819376A	PIPE	470819376A PIPE	$102.54	1
008	470803548A	BRACKET FOR COOLANT PIPE	470803548A BRACKET FOR COOLANT PIPE	$26.32	1
009	470819337	PIPE	470819337 PIPE	$296.37	1
010	470803263C	BRACKET FOR COOLANT PIPE	470803263C BRACKET FOR COOLANT PIPE	$64.92	2
011	470819370	SLEEVE	470819370 SLEEVE	$286.41	1
012	8K0819699A	DOUBLE GROMMET	8K0819699A DOUBLE GROMMET	$5.88	1
