Rear Arms of Lamborghini Lamborghini Aventador LP700 Coupe

View All

Lamborghini Aventador LP700 Coupe - Rear Arms

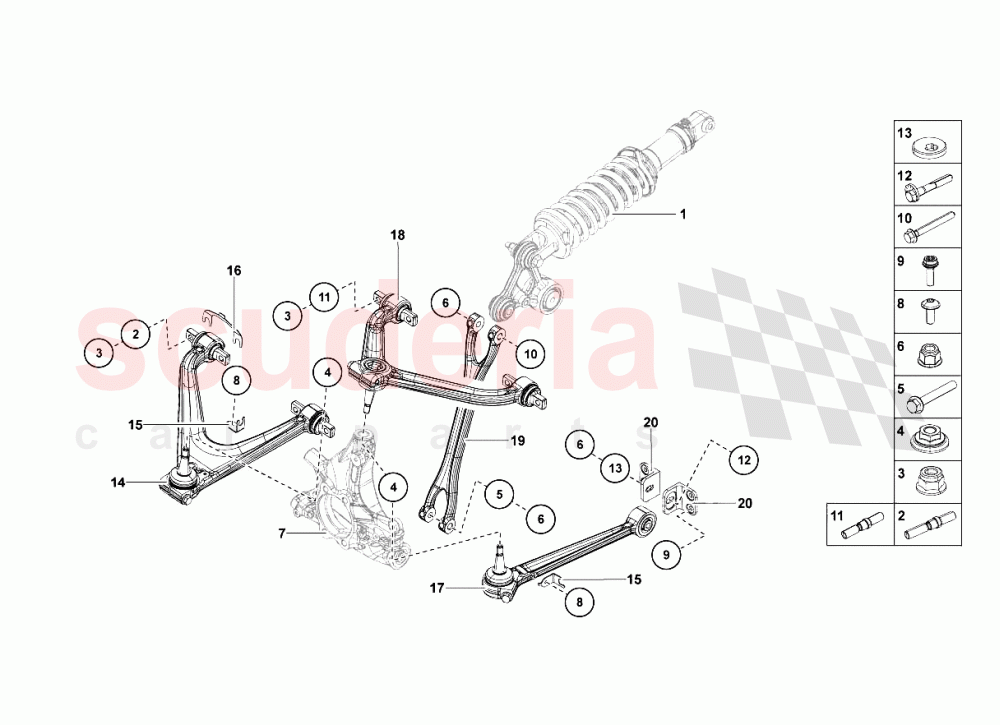

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
002	WHT005396	THREADED PIN IN STOCK	WHT005396 THREADED PIN IN STOCK	$27.76	8
003	N10272302	HEXAGON COLLAR NUT SELF-LOCKING IN STOCK	N10272302 HEXAGON COLLAR NUT SELF-LOCKING IN STOCK	$2.41 MSRP: ~~7.14~~ (66.2% off)	16
004	WHT004995	HEXAGON FLANGE NUT, SELF-LOCKING	WHT004995 HEXAGON FLANGE NUT, SELF-LOCKING	$5.21	6
005	N10736901	HEXAGON BOLT	N10736901 HEXAGON BOLT	$70.67	2
006	N10106402	HEXAGON COLLAR NUT SELF-LOCKING IN STOCK	N10106402 HEXAGON COLLAR NUT SELF-LOCKING IN STOCK	$2.53	6
008	N91055501	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N91055501 OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	$2.76 MSRP: ~~7.30~~ (62.2% off)	4
009	N10689301	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	N10689301 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	$3.39	8
010	N10640301	HEX COLLARED BOLT IN STOCK	N10640301 HEX COLLARED BOLT IN STOCK	$6.94	2
011	WHT005397	THREADED PIN	WHT005397 THREADED PIN	$37.41	8
012	WHT004856	ECCENTRIC BOLT	WHT004856 ECCENTRIC BOLT	$61.52	2
013	WHT001676	ECCENTRIC WASHER IN STOCK	WHT001676 ECCENTRIC WASHER IN STOCK	$1.62 MSRP: ~~7.27~~ (77.7% off)	2
014	470505312F	RH LOWER ARM	470505312F RH LOWER ARM	$4,309.75	1
014	470505311D	LH LOWER ARM	470505311D LH LOWER ARM	$1,302.96	1
014	470505312D	RH LOWER ARM	470505312D RH LOWER ARM	$1,271.91	1
014	470505311F	LH LOWER ARM	470505311F LH LOWER ARM	$4,309.75	1
015	470971005	BRACKET	470971005 BRACKET	$17.25	4
016	470407203E	BALANCING PLATE	470407203E BALANCING PLATE	$19.63	4
016	470407203F	BALANCING PLATE IN STOCK	470407203F BALANCING PLATE IN STOCK	$26.65	4
016	470407203G	BALANCING PLATE	470407203G BALANCING PLATE	$26.18	4
017	470501529D	LH LOWER ARM (UNTIL THE VIN CLA00135)	470501529D LH LOWER ARM (UNTIL THE VIN CLA00135)	$550.12	1
017	470501530D	RH LOWER ARM (UNTIL THE VIN CLA00135)	470501530D RH LOWER ARM (UNTIL THE VIN CLA00135)	$550.12	1
018	470505324D	RH UPPER ARM	470505324D RH UPPER ARM (2015-2017) model	$2,148.61	1
018	470505324E	RH UPPER ARM	470505324E RH UPPER ARM	$811.85	1
018	470505323F	LH UPPER ARM	470505323F LH UPPER ARM	$813.11	1
018	470505323E	LH UPPER ARM	470505323E LH UPPER ARM	$795.73	1
018	470505324G	RH UPPER ARM	470505324G RH UPPER ARM	$700.36	1
018	470505323D	LH UPPER ARM	470505323D LH UPPER ARM (2015-2017) model	$2,148.61	1
018	470505323G	LH UPPER ARM	470505323G LH UPPER ARM	$700.36	1
019	470513387B	INSULATION STRIP	470513387B INSULATION STRIP	$912.07	2
020	470501430A	SUPPORT IN STOCK	470501430A SUPPORT IN STOCK	$55.01	4
