Name: GEARBOX AND FASTENERS
Rating: 5.0 (1 reviews)

GEARBOX AND FASTENERS of Ferrari Ferrari SF90 XX Stradale USA

View All

Ferrari SF90 XX Stradale USA - GEARBOX AND FASTENERS

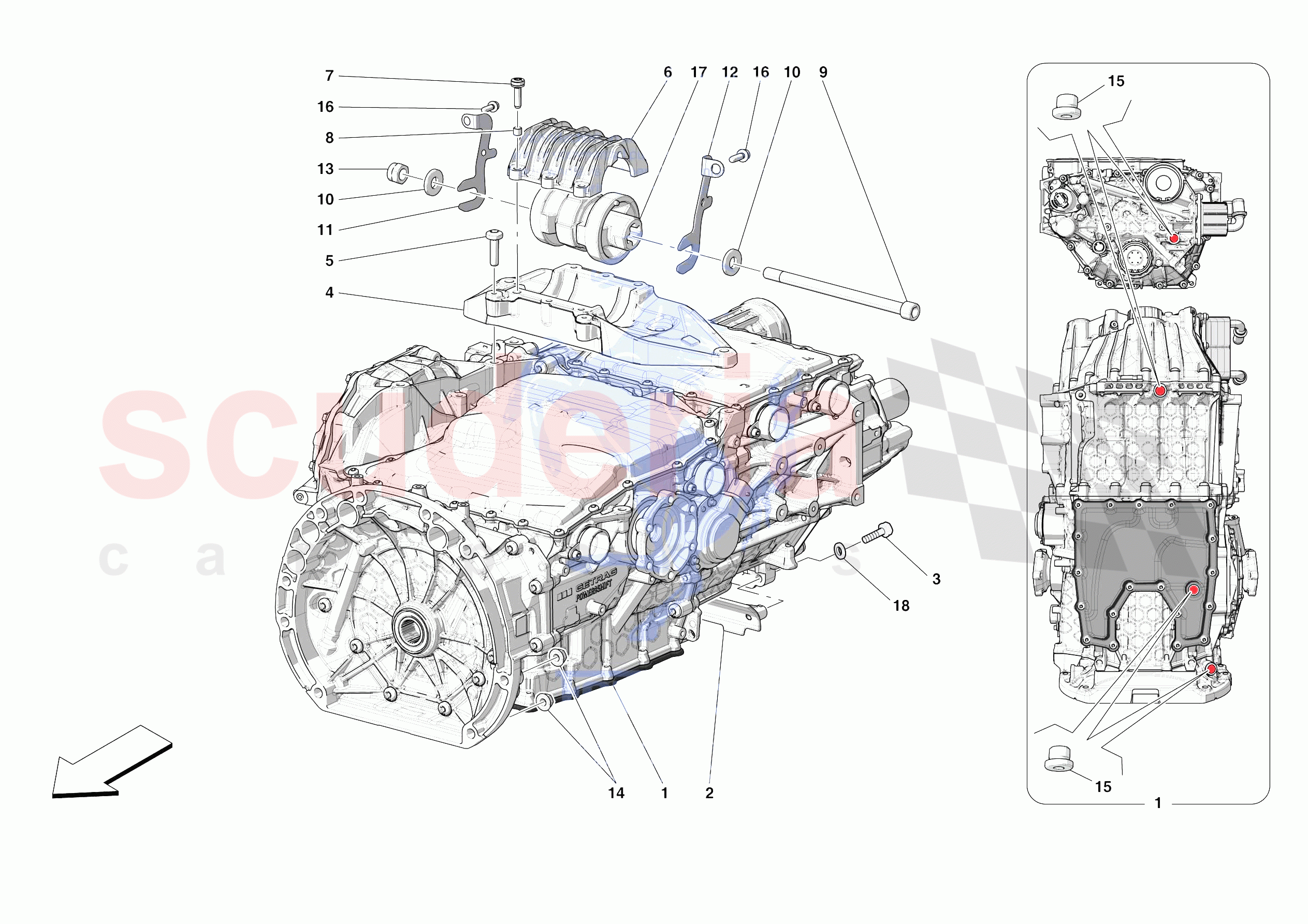

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	990446	COMPL. DCT GEARBOX	$46,236.33	To Order
	990446	COMPL. DCT GEARBOX	$46,236.33	To Order

Photo	Part No	Description	Price (each)	Stock
	769008	RETENTION BRACKET	$176.78	To Order

Photo	Part No	Description	Price (each)	Stock
	14306734	SCREW	$1.01	To Order

Photo	Part No	Description	Price (each)	Stock
	912129	GEARBOX MOUNT	$517.75	To Order

Photo	Part No	Description	Price (each)	Stock
	763347	SCREW	$4.37	To Order

Photo	Part No	Description	Price (each)	Stock
	259441	BUSHING COVER COLLAR	$164.16	To Order

Photo	Part No	Description	Price (each)	Stock
	292738	SCREW	$7.33	To Order

Photo	Part No	Description	Price (each)	Stock
	102032	CENTERING DOWEL	$3.37	To Order

Photo	Part No	Description	Price (each)	Stock
	921971	SCREW	$13.46	To Order

Photo	Part No	Description	Price (each)	Stock
	12644924	WASHER	$1.60	To Order

Photo	Part No	Description	Price (each)	Stock
	938921	RH GEARBOX BUSHING SHIM	$72.93	To Order

Photo	Part No	Description	Price (each)	Stock
	938909	LH GEARBOX BUSHING SHIM	$74.29	To Order
	938915	LH GEARBOX BUSHING SHIM	$74.29	To Order
	938916	LH GEARBOX BUSHING SHIM	$74.29	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	851485	SELF-LOCKING NUT	$1.69	To Order

Photo	Part No	Description	Price (each)	Stock
	14059421	NUT	$0.49	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	913205	OIL PLUG COMPL. WITH WASHER	$66.92	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.29	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	247723	VIBRATION DAMPER	$260.97	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13578324	WASHER	$0.21	IN STOCK

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
0001	990446	COMPL. DCT GEARBOX	990446 COMPL. DCT GEARBOX Request ASM authorisation	$46,236.33	1
0001	990446	COMPL. DCT GEARBOX	990446 COMPL. DCT GEARBOX Request ASM authorisation	$46,236.33	1
0002	769008	RETENTION BRACKET	769008 RETENTION BRACKET	$176.78	1
0003	14306734	SCREW	14306734 SCREW M8 X 40	$1.01	2
0004	912129	GEARBOX MOUNT	912129 GEARBOX MOUNT	$517.75	1
0005	763347	SCREW	763347 SCREW M10 X 1.25 X 35	$4.37	4
0006	259441	BUSHING COVER COLLAR	259441 BUSHING COVER COLLAR	$164.16	1
0007	292738	SCREW	292738 SCREW M8 X 30	$7.33	6
0008	102032	CENTERING DOWEL	102032 CENTERING DOWEL	$3.37 MSRP: ~~10.75~~ (68.7% off)	2
0009	921971	SCREW	921971 SCREW M14 X 1.5 X 210	$13.46	1
0010	12644924	WASHER	12644924 WASHER	$1.60	2
0011	938921	RH GEARBOX BUSHING SHIM	938921 RH GEARBOX BUSHING SHIM Th. 0.49 mm	$72.93	1
0012	938909	LH GEARBOX BUSHING SHIM	938909 LH GEARBOX BUSHING SHIM Installed if necessary; Th. 0.49 mm	$74.29	1
0012	938915	LH GEARBOX BUSHING SHIM	938915 LH GEARBOX BUSHING SHIM Installed if necessary; Th. 0.69 mm	$74.29	1
0012	938916	LH GEARBOX BUSHING SHIM	938916 LH GEARBOX BUSHING SHIM Installed if necessary; Th. 0.89 mm	$74.29	1
0012	938917	LH GEARBOX BUSHING SHIM	938917 LH GEARBOX BUSHING SHIM Installed if necessary; Th. 1.09 mm	$74.29	1
0012	938918	LH GEARBOX BUSHING SHIM	938918 LH GEARBOX BUSHING SHIM Installed if necessary; Th. 1.29 mm	$75.64	1
0012	938919	LH GEARBOX BUSHING SHIM	938919 LH GEARBOX BUSHING SHIM Installed if necessary; Th. 1.59 mm	$82.39	1
0013	851485	SELF-LOCKING NUT	851485 SELF-LOCKING NUT	$1.69	1
0014	14059421	NUT IN STOCK	14059421 NUT IN STOCK	$0.49	9
0015	913205	OIL PLUG COMPL. WITH WASHER	913205 OIL PLUG COMPL. WITH WASHER	$66.92	4
0016	231619	SCREW IN STOCK	231619 SCREW M6 X 22 IN STOCK	$0.29	2
0017	247723	VIBRATION DAMPER IN STOCK	247723 VIBRATION DAMPER IN STOCK	$260.97	1
0018	13578324	WASHER IN STOCK	13578324 WASHER IN STOCK	$0.21	2

Gearbox And Fasteners

Ferrari SF90 XX Stradale USA

Ferrari SF90 XX Stradale USA - GEARBOX AND FASTENERS
