Ferrari SF90 XX Stradale Europe RH - HIGH VOLTAGE WIRING HARNESSES

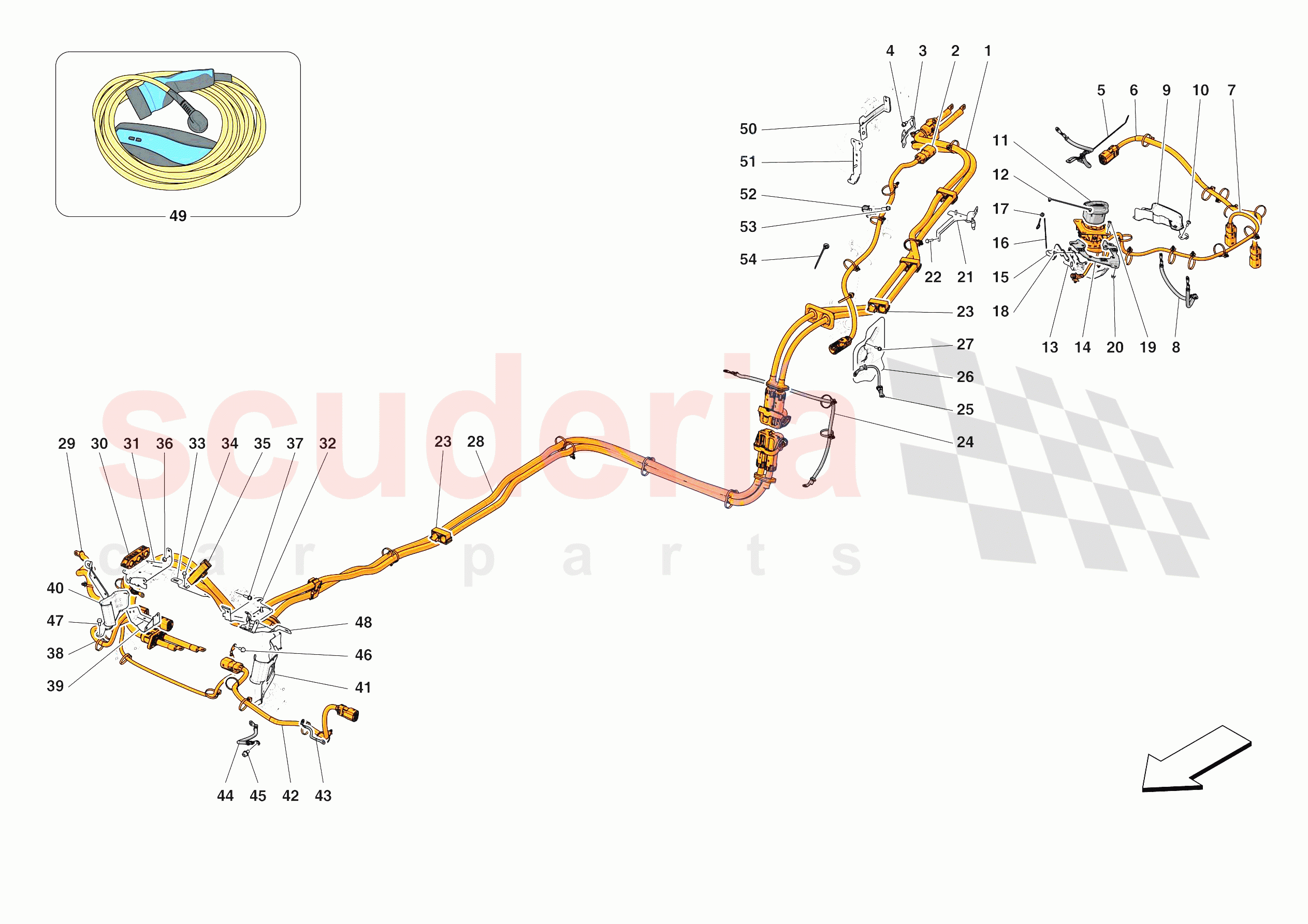

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	867779	CABLE FROM HVB BATTERY TO P2 INVERTER	$1,452.32	To Order

Photo	Part No	Description	Price (each)	Stock
	873341	CABLE FROM P2 INVERTER TO COMPRESSOR	$419.29	To Order

Photo	Part No	Description	Price (each)	Stock
	924294	BRACKET	$25.39	To Order

Photo	Part No	Description	Price (each)	Stock
	323665	SCREW	$0.31	To Order

Photo	Part No	Description	Price (each)	Stock
	958955	P2 INVERTER GROUND CABLE	$41.91	To Order

Photo	Part No	Description	Price (each)	Stock
	943954	CABLE FROM OBC TO P2 INVERTER	$419.29	To Order

Photo	Part No	Description	Price (each)	Stock
	910644	CABLE FROM OBC TO CHARGING SOCKET	$1,029.19	To Order
	877009	CABLE FROM OBC TO CHARGING SOCKET	$1,270.63	To Order
	877010	CABLE FROM OBC TO CHARGING SOCKET	$1,293.49	To Order

Photo	Part No	Description	Price (each)	Stock
	966277	OBC GROUND CABLE	$30.48	To Order

Photo	Part No	Description	Price (each)	Stock
	933899	HV CABLE HEAT SHIELD	$190.58	To Order

Photo	Part No	Description	Price (each)	Stock
	11566224	SCREW	$0.34	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	890449	CHARGING SOCKET CAP	$63.52	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	905181	CHARGE SOCKET CORD	$22.85	To Order

Photo	Part No	Description	Price (each)	Stock
	914283	CHARGING SOCKET HEAT SHIELD	$216.00	To Order

Photo	Part No	Description	Price (each)	Stock
	904473	CHARGING SOCKET ADAPTER	$33.02	To Order
	877012	CHARGING SOCKET ADAPTER	$43.18	To Order
	890843	CHARGING SOCKET ADAPTER	$43.18	To Order

Photo	Part No	Description	Price (each)	Stock
	914433	MANUAL RELEASE BRACKET	$62.24	To Order

Photo	Part No	Description	Price (each)	Stock
	811962	EMERGENCY RELEASE CABLE	$1.76	To Order

Photo	Part No	Description	Price (each)	Stock
	748925	RUBBER CABLE GROMMET	$2.41	To Order

Photo	Part No	Description	Price (each)	Stock
	88822200	SCREW	$0.60	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	62797600	Allen Bolt Countersunk M6 x 20	$0.97	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13046011	NUT	$0.32	To Order

Photo	Part No	Description	Price (each)	Stock
	912176	P2 TWO PHASE CABLE BRACKET	$43.18	To Order

Photo	Part No	Description	Price (each)	Stock
	86574700	SCREW	$0.61	To Order
	86574700	SCREW	$0.61	To Order

Photo	Part No	Description	Price (each)	Stock
	961295	CLIP	$4.83	To Order

Photo	Part No	Description	Price (each)	Stock
	879698	HVB GROUND CABLE	$39.37	To Order

Photo	Part No	Description	Price (each)	Stock
	917360	HV COMPRESSOR GROUND CABLE	$22.85	To Order

Photo	Part No	Description	Price (each)	Stock
	985240	A/C COMPRESSOR CONNECTOR HEAT SHIELD	$119.43	To Order

Photo	Part No	Description	Price (each)	Stock
	11566224	SCREW	$0.34	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	943949	HV CABLE FROM HVB TO P4 INVERTER	$1,701.37	To Order
	914487	HV CABLE FROM HVB TO P4 INVERTER	$1,902.13	To Order

Photo	Part No	Description	Price (each)	Stock
	958956	P4 INVERTER/DCDC GROUND CABLE	$104.17	To Order

Photo	Part No	Description	Price (each)	Stock
	961316	CLIP	$6.53	To Order

Photo	Part No	Description	Price (each)	Stock
	897127	COMPL. RH HV CABLE BRACKET	$55.88	To Order

Photo	Part No	Description	Price (each)	Stock
	918553	COMPL. LH HV CABLE BRACKET	$55.88	To Order

Photo	Part No	Description	Price (each)	Stock
	890901	COMPL. HVB DCDC CABLE BRACKET	$40.64	To Order
	934708	COMPL. HVB DCDC CABLE BRACKET	$49.54	To Order

Photo	Part No	Description	Price (each)	Stock
	16281824	SCREW	$0.35	To Order

Photo	Part No	Description	Price (each)	Stock
	961316	CLIP	$6.53	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.32	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	323668	SCREW	$0.31	To Order

Photo	Part No	Description	Price (each)	Stock
	783409	CABLE FROM P4 INVERTER TO DCDC	$406.59	To Order
	850612	CABLE FROM P4 INVERTER TO DCDC	$520.95	To Order

Photo	Part No	Description	Price (each)	Stock
	855351	RH P4 HV CABLE BRACKET	$35.57	To Order

Photo	Part No	Description	Price (each)	Stock
	850764	RH HV CABLE HOLDER BRACKET	$343.06	To Order

Photo	Part No	Description	Price (each)	Stock
	809598	LH HV CABLE HOLDER BRACKET	$241.40	To Order
	809598	LH HV CABLE HOLDER BRACKET	$241.40	To Order

Photo	Part No	Description	Price (each)	Stock
	873339	CABLE FROM P4 INVERTER TO HEATER	$432.00	To Order

Photo	Part No	Description	Price (each)	Stock
	873336	ELECTRIC HEATER GROUND CABLE	$16.50	To Order

Photo	Part No	Description	Price (each)	Stock
	914122	AXLE GROUND CABLE WITH PDM	$24.12	To Order

Photo	Part No	Description	Price (each)	Stock
	280460	SCREW	$4.06	To Order

Photo	Part No	Description	Price (each)	Stock
	16285924	SCREW	$0.18	To Order

Photo	Part No	Description	Price (each)	Stock
	16296934	SCREW 6 X 14MM	$0.41	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	915132	FIREWALL BRACKET FOR HVB CABLES TO P4 INVERTER	$38.11	To Order
	934889	FIREWALL BRACKET FOR HVB CABLES TO P4 INVERTER	$52.08	To Order

Photo	Part No	Description	Price (each)	Stock
	879949	HVB BATTERY CHARGER	$626.83	To Order
	879950	HVB BATTERY CHARGER	$711.54	To Order
	924665	HVB BATTERY CHARGER	$609.88	To Order

...and 7 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	856635	P2 THREE PHASE CONNECTOR BRACKET	$29.21	To Order

Photo	Part No	Description	Price (each)	Stock
	856636	P2 THREE PHASE CABLE BRACKET	$25.39	To Order

Photo	Part No	Description	Price (each)	Stock
	292861	CLIP	$1.01	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.29	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	918784	CLAMP	$0.35	To Order
