Rear Shields

Ferrari SF90 XX Stradale Europe RH

Find Your Part

Ferrari SF90 XX Stradale Europe RH - REAR SHIELDS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
809179 COMPL. REAR UNDERBODY SHIELD $7,785.22 To Order
Photo Part No Description Price (each) Stock
808398 RH REAR LATERAL DAM $91.27 To Order
Photo Part No Description Price (each) Stock
808396 LH REAR LATERAL DAM $91.27 To Order
Photo Part No Description Price (each) Stock
900472 FASTENER BUTTON $0.46 IN STOCK
Photo Part No Description Price (each) Stock
864394 RH CENTRE REAR DAM $46.90 To Order
Photo Part No Description Price (each) Stock
864393 LH CENTRE REAR DAM $46.90 To Order
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
11566224 SCREW $0.34 IN STOCK
11566224 SCREW $0.34 IN STOCK
Photo Part No Description Price (each) Stock
942595 REAR RH BRAKE COOLING DAM $84.94 To Order
Photo Part No Description Price (each) Stock
942577 REAR LH BRAKE COOLING DAM $84.94 To Order
Photo Part No Description Price (each) Stock
923977 MOUNTING BRACKET $35.49 To Order
Photo Part No Description Price (each) Stock
216565 SCREW $0.41 To Order
Photo Part No Description Price (each) Stock
872878 COMPL. RH COIL COOLING AIR INTAKE $34.22 To Order
Photo Part No Description Price (each) Stock
867429 COMPL. LH COIL COOLING AIR INTAKE $34.22 To Order
Photo Part No Description Price (each) Stock
13001690 SCREW COLLAR $1.18 To Order
Photo Part No Description Price (each) Stock
824857 COILED RUBBER PIPE $202.85 To Order
Photo Part No Description Price (each) Stock
68700800 CLIP $0.96 IN STOCK
Photo Part No Description Price (each) Stock
867431 COIL AIR INTAKE DEFLECTOR $20.28 To Order
Photo Part No Description Price (each) Stock
12643778 BLACK WASHER D.6.45-18X1.5 $0.24 IN STOCK
Photo Part No Description Price (each) Stock
897539 SCREW $2.71 To Order
Photo Part No Description Price (each) Stock
924629 RH TRUSS $45.63 To Order
Photo Part No Description Price (each) Stock
924628 LH TRUSS $45.63 To Order
Photo Part No Description Price (each) Stock
247856 SCREW $1.70 To Order
Photo Part No Description Price (each) Stock
873554 COMPL. CENTRAL ENGINE COMPARTMENT COSMETIC SHIELD $57.04 To Order
871362 COMPL. CENTRAL ENGINE COMPARTMENT COSMETIC SHIELD $1,958.97 To Order
Photo Part No Description Price (each) Stock
85663600 RUBBER SEAL $10.02 To Order
Photo Part No Description Price (each) Stock
85797600 SPECIAL SCREW $26.21 IN STOCK
Photo Part No Description Price (each) Stock
768645 TYPE A PLATE FOR PIN $0.43 To Order
Photo Part No Description Price (each) Stock
981904 PLATE $134.71 To Order
Photo Part No Description Price (each) Stock
873550 COMPL. REAR CENTRE ENGINE COMPARTMENT COSMETIC SHIELD $140.77 To Order
900453 COMPL. REAR CENTRE ENGINE COMPARTMENT COSMETIC SHIELD $4,458.11 To Order
Photo Part No Description Price (each) Stock
908511 RH ENGINE BULKHEAD SEAL $6.28 To Order
Photo Part No Description Price (each) Stock
938724 COMPL. RH FLAP $44.36 To Order
939247 COMPL. RH COVER $786.11 To Order
Photo Part No Description Price (each) Stock
938725 COMPL. LH DOOR $44.36 To Order
939246 COMPL. LH COVER $786.11 To Order
Photo Part No Description Price (each) Stock
11566224 SCREW $0.34 IN STOCK
Photo Part No Description Price (each) Stock
873556 COMPL. RH ENGINE COMPARTMENT COSMETIC SHIELD $164.82 To Order
871357 COMPL. RH ENGINE COMPARTMENT COSMETIC SHIELD $3,871.05 To Order
Photo Part No Description Price (each) Stock
873560 COMPL. LH ENGINE COMPARTMENT COSMETIC SHIELD $164.82 To Order
871355 COMPL. LH ENGINE COMPARTMENT COSMETIC SHIELD $3,871.05 To Order
Photo Part No Description Price (each) Stock
873565 UNDER-SCREEN ENGINE COMPARTMENT COSMETIC SHIELD $58.30 To Order
871354 UNDER-SCREEN ENGINE COMPARTMENT COSMETIC SHIELD $2,013.50 To Order
Photo Part No Description Price (each) Stock
897538 SCREW $1.53 To Order
Photo Part No Description Price (each) Stock
961236 FASTENER PLATE FOR CENTRE ENGINE COMPARTMENT COSMETIC SHIELD $67.19 To Order
Photo Part No Description Price (each) Stock
960908 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
62769800 WASHER D.5-14 X 2.5 $0.21 IN STOCK
Photo Part No Description Price (each) Stock
877699 CENTRE ENGINE COMPARTMENT COSMETIC SHIELD SEAL Enquire To Order
Photo Part No Description Price (each) Stock
946090 RH REAR COIL AIR INTAKE DEFLECTOR $15.20 To Order
946089 LH REAR COIL AIR INTAKE DEFLECTOR $15.20 To Order
Photo Part No Description Price (each) Stock
843481 COMPL. RH COIL DUCT PLATE $507.17 To Order
Photo Part No Description Price (each) Stock
843480 COMPL. LH COIL DUCT PLATE $507.17 To Order
Photo Part No Description Price (each) Stock
943300 COMPL. RH REAR AXLE SHAFT COOLING PIPE PLATE $684.68 To Order
Photo Part No Description Price (each) Stock
943263 COMPL. LH REAR AXLE SHAFT COOLING PIPE PLATE $684.68 To Order
Photo Part No Description Price (each) Stock
11566224 SCREW $0.34 IN STOCK
Photo Part No Description Price (each) Stock
282393 SCREW $0.67 To Order
View All

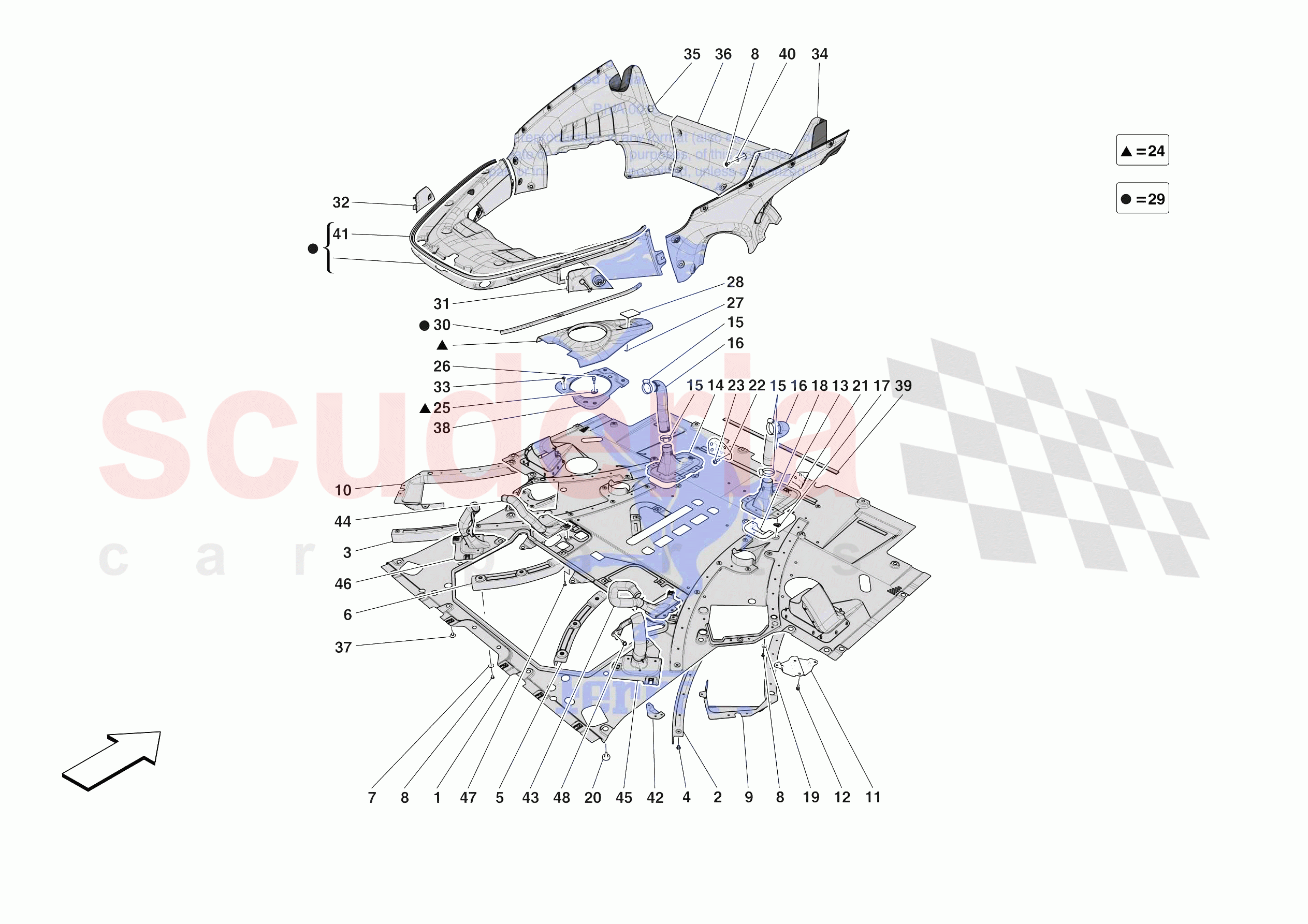

REAR SHIELDS of Ferrari Ferrari SF90 XX Stradale Europe RH Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
0001 809179
COMPL. REAR UNDERBODY SHIELD 		$7,785.22 1
0002 808398
RH REAR LATERAL DAM 		$91.27 1
0003 808396
LH REAR LATERAL DAM 		$91.27 1
0004 900472
FASTENER BUTTON
IN STOCK 		$0.46 70
0005 864394
RH CENTRE REAR DAM 		$46.90 1
0006 864393
LH CENTRE REAR DAM 		$46.90 1
0007 12643724
WASHER
IN STOCK 		$0.06 (88% off) 6
0008 11566224
SCREW
M5 X 14
IN STOCK 		$0.34 26
0008 11566224
SCREW
M5 X 14
IN STOCK 		$0.34 30
0009 942595
REAR RH BRAKE COOLING DAM 		$84.94 1
0010 942577
REAR LH BRAKE COOLING DAM 		$84.94 1
0011 923977
MOUNTING BRACKET 		$35.49 2
0012 216565
SCREW
M6 X 20 		$0.41 8
0013 872878
COMPL. RH COIL COOLING AIR INTAKE 		$34.22 2
0014 867429
COMPL. LH COIL COOLING AIR INTAKE 		$34.22 1
0015 13001690
SCREW COLLAR 		$1.18 4
0016 824857
COILED RUBBER PIPE 		$202.85 2
0017 68700800
CLIP
IN STOCK 		$0.96 4
0018 867431
COIL AIR INTAKE DEFLECTOR 		$20.28 4
0019 12643778
BLACK WASHER D.6.45-18X1.5
18 X 1.5
IN STOCK 		$0.24 (52% off) 6
0020 897539
SCREW
M6 X 22 		$2.71 12
0021 924629
RH TRUSS 		$45.63 1
0022 924628
LH TRUSS 		$45.63 1
0023 247856
SCREW
M8 X 1.25 X 25 		$1.70 8
0024 873554
COMPL. CENTRAL ENGINE COMPARTMENT COSMETIC SHIELD 		$57.04 1
0024 871362
COMPL. CENTRAL ENGINE COMPARTMENT COSMETIC SHIELD
Gloss finish carbon version 		$1,958.97 1
0025 85663600
RUBBER SEAL 		$10.02 4
0026 85797600
SPECIAL SCREW
M5
IN STOCK 		$26.21 4
0027 768645
TYPE A PLATE FOR PIN 		$0.43 2
0028 981904
PLATE 		$134.71 1
0029 873550
COMPL. REAR CENTRE ENGINE COMPARTMENT COSMETIC SHIELD 		$140.77 1
0029 900453
COMPL. REAR CENTRE ENGINE COMPARTMENT COSMETIC SHIELD
Gloss finish carbon version 		$4,458.11 1
0030 908511
RH ENGINE BULKHEAD SEAL 		$6.28 1
0031 938724
COMPL. RH FLAP 		$44.36 1
0031 939247
COMPL. RH COVER
Gloss finish carbon version 		$786.11 1
0032 938725
COMPL. LH DOOR 		$44.36 1
0032 939246
COMPL. LH COVER
Gloss finish carbon version 		$786.11 1
0033 11566224
SCREW
M5 X 12
IN STOCK 		$0.34 3
0034 873556
COMPL. RH ENGINE COMPARTMENT COSMETIC SHIELD 		$164.82 1
0034 871357
COMPL. RH ENGINE COMPARTMENT COSMETIC SHIELD
Gloss finish carbon version 		$3,871.05 1
0035 873560
COMPL. LH ENGINE COMPARTMENT COSMETIC SHIELD 		$164.82 1
0035 871355
COMPL. LH ENGINE COMPARTMENT COSMETIC SHIELD
Gloss finish carbon version 		$3,871.05 1
0036 873565
UNDER-SCREEN ENGINE COMPARTMENT COSMETIC SHIELD 		$58.30 1
0036 871354
UNDER-SCREEN ENGINE COMPARTMENT COSMETIC SHIELD
Gloss finish carbon version 		$2,013.50 1
0037 897538
SCREW
M6 X 18 		$1.53 20
0038 961236
FASTENER PLATE FOR CENTRE ENGINE COMPARTMENT COSMETIC SHIELD 		$67.19 1
0039 960908
GASKET 		- 1 Enquire
0040 62769800
WASHER D.5-14 X 2.5
IN STOCK 		$0.21 (30% off) 30
0041 877699
CENTRE ENGINE COMPARTMENT COSMETIC SHIELD SEAL
Not for version with carbon fibre engine compartment shield 		- 1 Enquire
0042 946090
RH REAR COIL AIR INTAKE DEFLECTOR 		$15.20 1
0042 946089
LH REAR COIL AIR INTAKE DEFLECTOR 		$15.20 1
0043 843481
COMPL. RH COIL DUCT PLATE 		$507.17 1
0044 843480
COMPL. LH COIL DUCT PLATE 		$507.17 1
0045 943300
COMPL. RH REAR AXLE SHAFT COOLING PIPE PLATE 		$684.68 1
0046 943263
COMPL. LH REAR AXLE SHAFT COOLING PIPE PLATE 		$684.68 1
0047 11566224
SCREW
M5 X 16
IN STOCK 		$0.34 32
0048 282393
SCREW
M6 X 16 		$0.67 2
