Name: PISTONS AND CONNECTING RODS
Rating: 4.5 (1 reviews)

View All

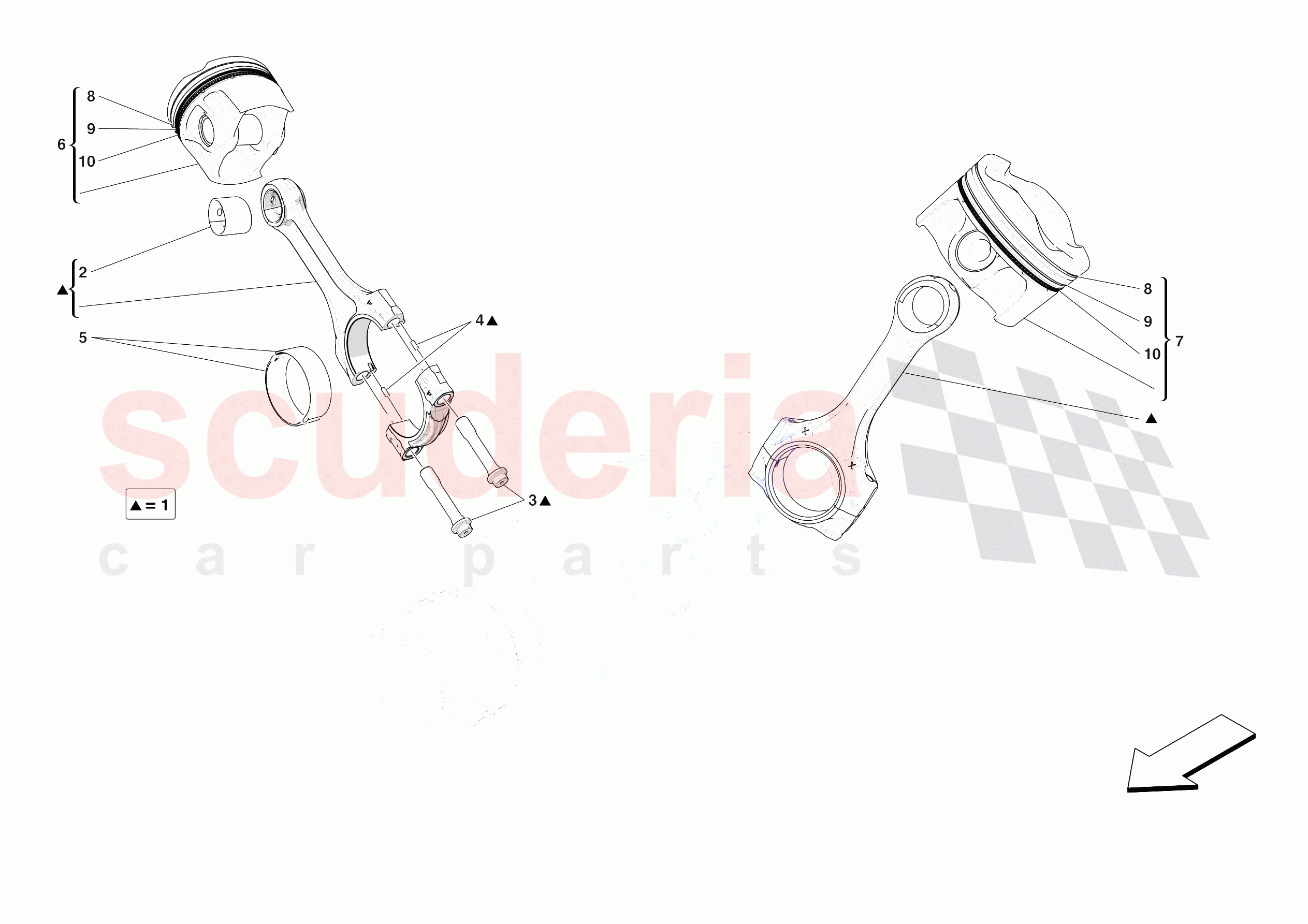

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	849385	COMPL. CONNECTING ROD AND CAP	$226.46	To Order

Photo	Part No	Description	Price (each)	Stock
	849393	BUSH	$32.87	To Order

Photo	Part No	Description	Price (each)	Stock
	270248	SCREW	$20.24	To Order

Photo	Part No	Description	Price (each)	Stock
	292751	ALIGNMENT PIN	$25.27	To Order

Photo	Part No	Description	Price (each)	Stock
	312692	CONNECTING ROD HALF-BEARING	$17.69	To Order

Photo	Part No	Description	Price (each)	Stock
	906213	COMPL. RH PISTON	$796.70	To Order

Photo	Part No	Description	Price (each)	Stock
	906214	COMPL. LH PISTON	$796.70	To Order

Photo	Part No	Description	Price (each)	Stock
	867916	SEAL RING	$73.33	To Order

Photo	Part No	Description	Price (each)	Stock
	867917	SEAL RING	$42.98	To Order

Photo	Part No	Description	Price (each)	Stock
	860820	OIL SCRAPER RING	$60.68	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
0001	849385	COMPL. CONNECTING ROD AND CAP	849385 COMPL. CONNECTING ROD AND CAP	$226.46	8
0002	849393	BUSH	849393 BUSH	$32.87	8
0003	270248	SCREW	270248 SCREW	$20.24	16
0004	292751	ALIGNMENT PIN	292751 ALIGNMENT PIN	$25.27	16
0005	312692	CONNECTING ROD HALF-BEARING	312692 CONNECTING ROD HALF-BEARING Blue	$17.69	16
0006	906213	COMPL. RH PISTON	906213 COMPL. RH PISTON	$796.70	4
0007	906214	COMPL. LH PISTON	906214 COMPL. LH PISTON	$796.70	4
0008	867916	SEAL RING	867916 SEAL RING 1st groove	$73.33	8
0009	867917	SEAL RING	867917 SEAL RING 2nd groove	$42.98	8
0010	860820	OIL SCRAPER RING	860820 OIL SCRAPER RING 3rd groove	$60.68	8

Pistons And Connecting Rods

Ferrari SF90 XX Stradale Europe
