Engine Electrical System

Ferrari SF90 Stradale USA

Find Your Part

Ferrari SF90 Stradale USA - ENGINE ELECTRICAL SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
963338 INJECTION CABLE $2,573.39 To Order
784328 INJECTION CABLE Enquire To Order
874371 INJECTION CABLE $2,994.33 To Order
...and 6 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
829510 COMPL. BRACKET $12.51 To Order
Photo Part No Description Price (each) Stock
808158 CHANNEL MOUNTING BRACKET $12.01 To Order
Photo Part No Description Price (each) Stock
231619 SCREW $0.29 IN STOCK
Photo Part No Description Price (each) Stock
248334 SCREW $0.58 IN STOCK
Photo Part No Description Price (each) Stock
260007 STUD BOLT $9.23 To Order
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
291225 P clip Bracket With Sheath $4.82 IN STOCK
Photo Part No Description Price (each) Stock
921797 INJECTION CABLE FASTENER BRACKET $24.01 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.58 IN STOCK
Photo Part No Description Price (each) Stock
896455 INJECTION CABLE FASTENER BRACKET $20.23 To Order
Photo Part No Description Price (each) Stock
336488 STUD BOLT $11.76 To Order
Photo Part No Description Price (each) Stock
11193874 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
909445 INJECTION CABLE FASTENER BRACKET $44.26 To Order
Photo Part No Description Price (each) Stock
86574700 SCREW $0.61 To Order
Photo Part No Description Price (each) Stock
291225 P clip Bracket With Sheath $4.82 IN STOCK
Photo Part No Description Price (each) Stock
856921 INJECTION CABLE FASTENER BRACKET $15.17 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.31 IN STOCK
View All

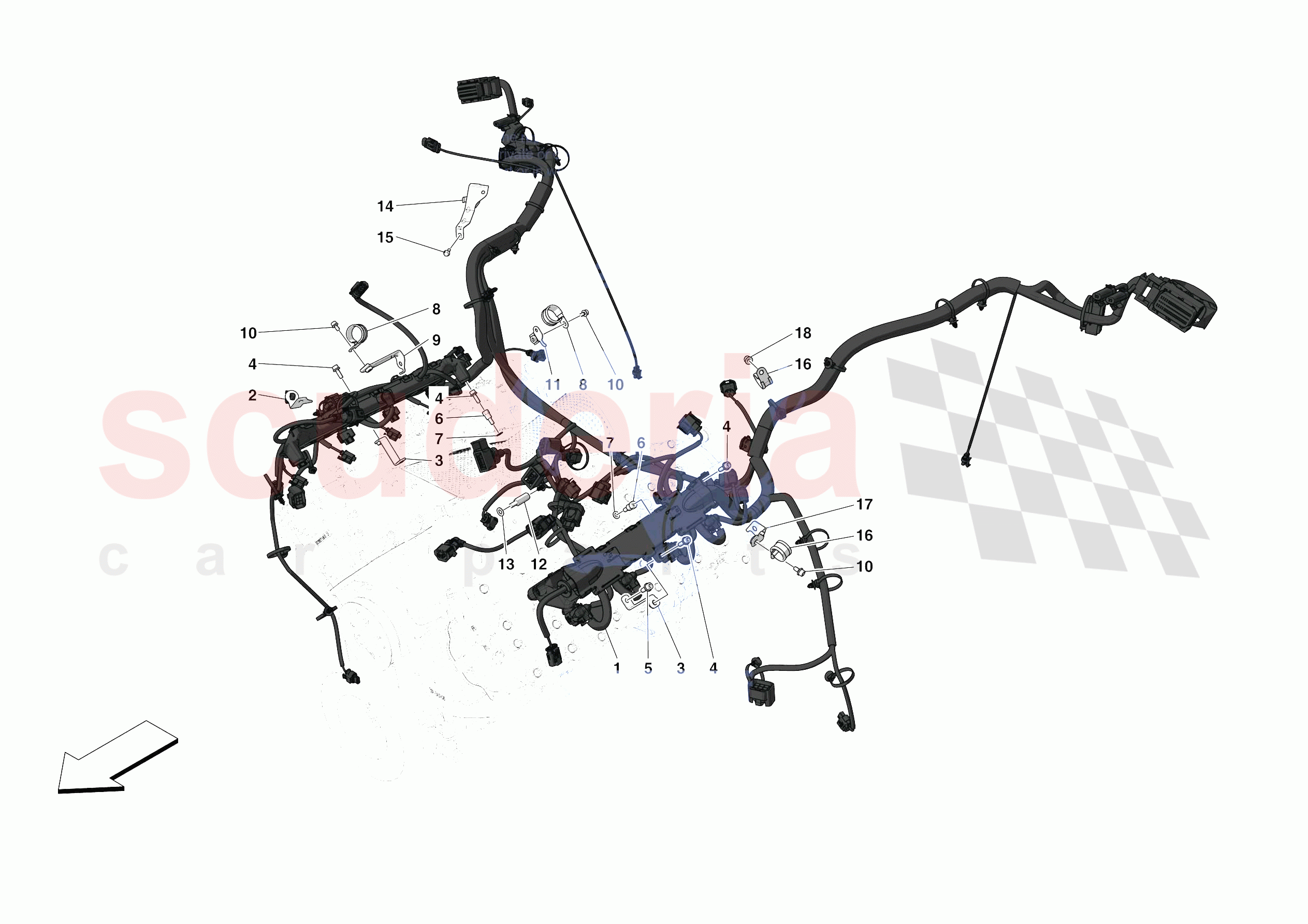

ENGINE ELECTRICAL SYSTEM of Ferrari Ferrari SF90 Stradale USA Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
0001 963338
INJECTION CABLE
No longer supplied - Replaced by 784328 		$2,573.39 1
0001 784328
INJECTION CABLE
No longer supplied - Replaced by 874371 		- 1 Enquire
0001 874371
INJECTION CABLE
Applies until depletion 		$2,994.33 1
0001 840357
INJECTION CABLE
No longer supplied - Replaced by 746322 - Applicable after depletion of 874371 		- 1 Enquire
0001 746322
INJECTION CABLE
Applicable after depletion of 874371 		$3,194.47 1
0001 784329
INJECTION CABLE
No longer supplied - Replaced by 874377 		$2,768.94 1
0001 874377
INJECTION CABLE
Applies until depletion 		$2,772.02 1
0001 840358
INJECTION CABLE
No longer supplied - Replaced by 746325 - Applicable after depletion of 874377 		- 1 Enquire
0001 746325
INJECTION CABLE
Applicable after depletion of 874377 		$3,422.20 1
0002 829510
COMPL. BRACKET 		$12.51 1
0003 808158
CHANNEL MOUNTING BRACKET 		$12.01 2
0004 231619
SCREW
M6 X 18
IN STOCK 		$0.29 6
0005 248334
SCREW
M6 X 16
IN STOCK 		$0.58 3
0006 260007
STUD BOLT 		$9.23 2
0007 11197774
WASHER
IN STOCK 		$0.06 (80% off) 2
0008 291225
P clip Bracket With Sheath
IN STOCK 		$4.82 2
0009 921797
INJECTION CABLE FASTENER BRACKET 		$24.01 1
0010 248334
SCREW
M6 X 12
IN STOCK 		$0.58 3
0011 896455
INJECTION CABLE FASTENER BRACKET 		$20.23 1
0012 336488
STUD BOLT 		$11.76 1
0013 11193874
WASHER
IN STOCK 		$0.06 1
0014 909445
INJECTION CABLE FASTENER BRACKET 		$44.26 1
0015 86574700
SCREW
M5 X 16 		$0.61 2
0016 291225
P clip Bracket With Sheath
IN STOCK 		$4.82 2
0017 856921
INJECTION CABLE FASTENER BRACKET 		$15.17 1
0018 14059290
FLANGED NUT M6
IN STOCK 		$1.31 1
