Anti-Theft System

Ferrari SF90 Stradale Europe RH

Find Your Part

Ferrari SF90 Stradale Europe RH - ANTI-THEFT SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
336779 COMPL. ANTI-THEFT SYSTEM SIREN $141.64 To Order
Photo Part No Description Price (each) Stock
333337 GSM MICROPHONE $189.71 To Order
Photo Part No Description Price (each) Stock
332825 GLONASS SPEAKER $45.52 To Order
Photo Part No Description Price (each) Stock
11566224 SCREW $0.34 IN STOCK
Photo Part No Description Price (each) Stock
965601 SPEAKER COVER $20.23 To Order
818342 SPEAKER COVER $24.01 To Order
Photo Part No Description Price (each) Stock
11566224 SCREW $0.34 IN STOCK
Photo Part No Description Price (each) Stock
818431 GLONASS ECU Enquire To Order
792676 GLONASS ECU $3,178.54 To Order
956023 E-CALL TCU $2,170.47 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
890733 BRACKET $30.34 To Order
890733 BRACKET $30.34 To Order
922387 BRACKET $36.67 To Order
Photo Part No Description Price (each) Stock
824398 RF ANTENNA $38.44 To Order
Photo Part No Description Price (each) Stock
336506 GLONASS GPS ANTENNA $53.62 To Order
336506 GLONASS GPS ANTENNA $53.62 To Order
Photo Part No Description Price (each) Stock
336507 GLONASS GSM ANTENNA $53.62 To Order
336507 GLONASS GSM ANTENNA $53.62 To Order
Photo Part No Description Price (each) Stock
839378 PASSIVE START ECU $392.09 To Order
940501 PASSIVE START ECU $392.09 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.31 IN STOCK
Photo Part No Description Price (each) Stock
16281827 SCREW $0.21 To Order
Photo Part No Description Price (each) Stock
775528 PASSIVE ENTRY RF ANTENNA CABLE $82.20 To Order
912307 RF ANTENNA CABLE $63.23 To Order
Photo Part No Description Price (each) Stock
925991 PASSIVE START ANTENNA $67.77 To Order
935814 PASSIVE START ANTENNA $67.77 To Order
Photo Part No Description Price (each) Stock
829636 COMPL. E-CALL CONTROL $328.85 To Order
Photo Part No Description Price (each) Stock
293416 ANTI-LIFT SENSOR $403.73 To Order
Photo Part No Description Price (each) Stock
310778 PASSIVE START ANTENNA $13.13 To Order
Photo Part No Description Price (each) Stock
11566224 SCREW $0.34 IN STOCK
Photo Part No Description Price (each) Stock
772851 KEY AND BLOCK KIT $652.67 To Order
Photo Part No Description Price (each) Stock
766328 WRENCH BIT $645.06 To Order
Photo Part No Description Price (each) Stock
6326163 SECRET CARD LABEL FOR KEYS $2.52 To Order
Photo Part No Description Price (each) Stock
766290 WRENCH $1,665.79 To Order
766293 WRENCH $1,665.79 To Order
766292 WRENCH $1,668.32 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
865296 KEY FOB $20.23 To Order
55080828 AMULETO CHIAVE VERNICIATO GIALLO $328.85 IN STOCK
923359 KEY FOB $316.19 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
865300 KEY RING $26.54 To Order
Photo Part No Description Price (each) Stock
865301 SCREW $0.64 To Order
Photo Part No Description Price (each) Stock
925517 SCREWDRIVER ADAPTER $103.69 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.31 IN STOCK
Photo Part No Description Price (each) Stock
824397 DRIVER CARD $290.90 To Order
Photo Part No Description Price (each) Stock
766286 KEY AND BLOCK KIT $834.78 To Order
Photo Part No Description Price (each) Stock
895549 KEY SCREWDRIVER-RING KIT $215.01 To Order
View All

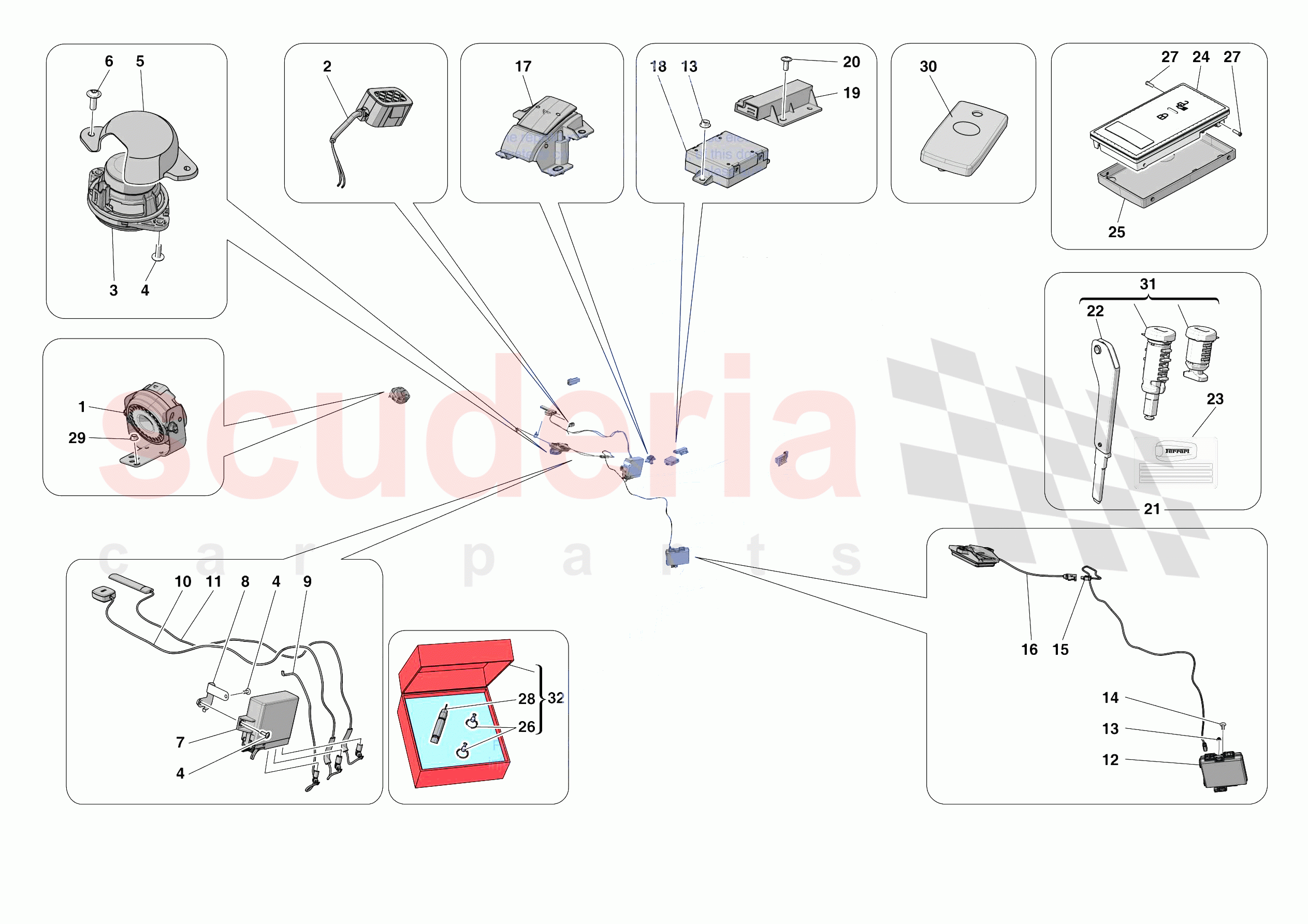

ANTI-THEFT SYSTEM of Ferrari Ferrari SF90 Stradale Europe RH Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
0001 336779
COMPL. ANTI-THEFT SYSTEM SIREN
Not for Assetto Fiorano FIO1 		$141.64 1
0002 333337
GSM MICROPHONE
Applicable for countries with E-CALL system - Applicable for ERA GLONASS system - Applicable for Russia, Armenia, Belarus, Kazakhstan and Kyrgyzstan markets 		$189.71 1
0003 332825
GLONASS SPEAKER
Applicable for countries with E-CALL system - Applicable for ERA GLONASS system - Applicable for Russia, Armenia, Belarus, Kazakhstan and Kyrgyzstan markets 		$45.52 1
0004 11566224
SCREW
Applicable for countries with E-CALL system - Applicable for ERA GLONASS system - Applicable for Russia, Armenia, Belarus, Kazakhstan and Kyrgyzstan markets; M5 X 14
IN STOCK 		$0.34 2
0005 965601
SPEAKER COVER
Applicable for countries with E-CALL system - Applicable for ERA GLONASS system - Applicable for Russia, Armenia, Belarus, Kazakhstan and Kyrgyzstan markets 		$20.23 1
0005 818342
SPEAKER COVER
Applicable for E-CALL system 		$24.01 1
0006 11566224
SCREW
M5 X 14
IN STOCK 		$0.34 2
0007 818431
GLONASS ECU
Applicable for ERA GLONASS system - Applicable for Russia, Armenia, Belarus, Kazakhstan and Kyrgyzstan markets - Not for Turkey; No longer supplied - Replaced by 792676; Unprogrammed 		- 1 Enquire
0007 792676
GLONASS ECU
Applicable for ERA GLONASS system - Applicable for Russia, Armenia, Belarus, Kazakhstan and Kyrgyzstan markets - Not for Turkey; Programmed 		$3,178.54 1
0007 956023
E-CALL TCU
Specific for Turkey - Applicable for E-CALL system - Not for Assetto Fiorano FIO1 - Not for ERA GLONASS system - Not for Russia, Armenia, Belarus, Kazakhstan and Kyrgyzstan markets 		$2,170.47 1
0007 824396
TCU ECALL / SVR
Version with SVR satellite alarm system with or without card - Applicable for E-CALL system - Not for ERA GLONASS system 		$2,164.14 1
0007 956025
E-CALL TCU
Not for Turkey - Applicable for E-CALL system - Not for ERA GLONASS system 		$2,170.47 1
0008 890733
BRACKET
Version with SVR satellite alarm system with or without card - Applicable for countries with E-CALL system - Not for ERA GLONASS system 		$30.34 1
0008 890733
BRACKET 		$30.34 1
0008 922387
BRACKET
Version with SVR satellite alarm system with or without card - Applicable for E-CALL system - Not for ERA GLONASS system 		$36.67 1
0009 824398
RF ANTENNA
Version with SVR satellite alarm system with card - Not for ERA GLONASS system 		$38.44 1
0010 336506
GLONASS GPS ANTENNA
Version with SVR satellite alarm system with or without card - Applicable for countries with E-CALL system - Not for ERA GLONASS system 		$53.62 1
0010 336506
GLONASS GPS ANTENNA 		$53.62 1
0011 336507
GLONASS GSM ANTENNA
Version with SVR satellite alarm system with or without card - Applicable for countries with E-CALL system - Not for ERA GLONASS system 		$53.62 1
0011 336507
GLONASS GSM ANTENNA 		$53.62 1
0012 839378
PASSIVE START ECU 		$392.09 1
0012 940501
PASSIVE START ECU 		$392.09 1
0013 14059290
FLANGED NUT M6
IN STOCK 		$1.31 3
0014 16281827
SCREW
M5 X 14 		$0.21 1
0015 775528
PASSIVE ENTRY RF ANTENNA CABLE 		$82.20 1
0015 912307
RF ANTENNA CABLE 		$63.23 1
0016 925991
PASSIVE START ANTENNA 		$67.77 1
0016 935814
PASSIVE START ANTENNA 		$67.77 1
0017 829636
COMPL. E-CALL CONTROL
Applicable for countries with E-CALL system - Applicable for ERA GLONASS system - Applicable for Russia, Armenia, Belarus, Kazakhstan and Kyrgyzstan markets 		$328.85 1
0018 293416
ANTI-LIFT SENSOR
Not for Assetto Fiorano FIO1 		$403.73 1
0019 310778
PASSIVE START ANTENNA 		$13.13 3
0020 11566224
SCREW
M5 X 12
IN STOCK 		$0.34 6
0021 772851
KEY AND BLOCK KIT
Manage the loose components; No longer supplied; Contains: 1 key, 2 ignition switch blocks and 1 CODE CARD 		$652.67 1
0022 766328
WRENCH BIT 		$645.06 1
0023 6326163
SECRET CARD LABEL FOR KEYS 		$2.52 1
0024 766290
WRENCH
Leather 		$1,665.79 1
0024 766293
WRENCH
Leather 		$1,665.79 1
0024 766292
WRENCH
Carbon version; Leather 		$1,668.32 1
0024 766295
WRENCH
Carbon version; Leather 		$1,665.79 1
0025 865296
KEY FOB
Plastic 		$20.23 1
0025 55080828
AMULETO CHIAVE VERNICIATO GIALLO
Yellow
IN STOCK 		$328.85 1
0025 923359
KEY FOB
Grey 		$316.19 1
0025 865703
KEY FOB
Carbon 		$872.73 1
0026 865300
KEY RING 		$26.54 1
0027 865301
SCREW 		$0.64 4
0028 925517
SCREWDRIVER ADAPTER 		$103.69 1
0029 14059290
FLANGED NUT M6
IN STOCK 		$1.31 2
0030 824397
DRIVER CARD
Version with SVR satellite alarm system with card - Request ASM authorisation 		$290.90 1
0031 766286
KEY AND BLOCK KIT
Contains: 1 wrench and 2 blocks 		$834.78 1
0032 895549
KEY SCREWDRIVER-RING KIT 		$215.01 1
