INVERTER COOLING of Ferrari Ferrari SF90 Stradale Europe RH

View All

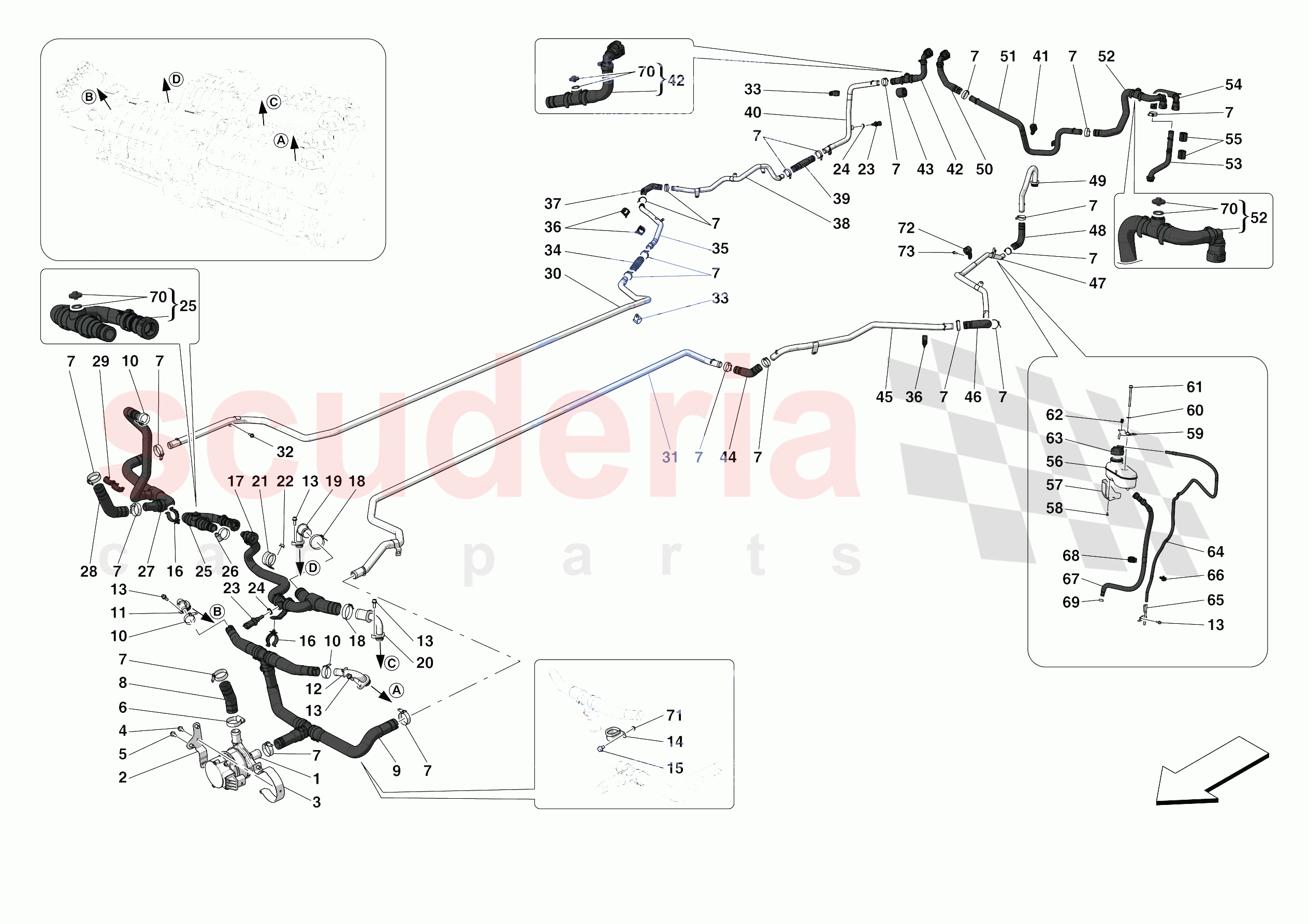

Ferrari SF90 Stradale Europe RH - INVERTER COOLING

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	908587	PUMP	$922.87	To Order

Photo	Part No	Description	Price (each)	Stock
	791525	RECIRCULATION PUMP MOUNTING BRACKET	$23.97	To Order

Photo	Part No	Description	Price (each)	Stock
	814632	BRACKET FOR MEDIUM TEMPERATURE WATER PUMP	$22.71	To Order

Photo	Part No	Description	Price (each)	Stock
	16281827	SCREW	$0.21	To Order

Photo	Part No	Description	Price (each)	Stock
	16285014	SCREW	$1.78	To Order

Photo	Part No	Description	Price (each)	Stock
	262111	JUBILEE CLAMP	$1.39	To Order

Photo	Part No	Description	Price (each)	Stock
	262111	JUBILEE CLAMP	$1.39	To Order

Photo	Part No	Description	Price (each)	Stock
	791526	HOSE FROM PUMP TO RADIATOR	$28.63	To Order

Photo	Part No	Description	Price (each)	Stock
	867919	RETURN HOSE TO PUMP	$227.30	To Order

Photo	Part No	Description	Price (each)	Stock
	262111	JUBILEE CLAMP	$1.39	To Order

Photo	Part No	Description	Price (each)	Stock
	860134	RH ELECTRIC AXLE CONNECTOR FITTING	$90.90	To Order

Photo	Part No	Description	Price (each)	Stock
	860135	LH ELECTRIC AXLE CONNECTOR FITTING	$90.90	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW	$0.58	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	291225	P clip Bracket With Sheath	$4.81	IN STOCK
	320600	CLIP	$2.10	To Order

Photo	Part No	Description	Price (each)	Stock
	16296934	SCREW 6 X 14MM	$0.41	IN STOCK
	16296934	SCREW 6 X 14MM	$0.41	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	896562	CLIP	$0.55	To Order

Photo	Part No	Description	Price (each)	Stock
	895856	AXLE INVERTER CONNECTOR HOSE	$505.13	To Order

Photo	Part No	Description	Price (each)	Stock
	262111	JUBILEE CLAMP	$1.39	To Order

Photo	Part No	Description	Price (each)	Stock
	815157	RH ELECTRIC AXLE CONNECTOR FITTING	$94.70	To Order

Photo	Part No	Description	Price (each)	Stock
	815158	LH ELECTRIC AXLE CONNECTOR FITTING	$94.70	To Order

Photo	Part No	Description	Price (each)	Stock
	10442190	BRACKET WITH SHEATH	$0.67	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14040614	NUT	$0.14	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	180137	TEMPERATURE SENSOR	$28.40	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10298460	GASKET	$0.14	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	818747	DC-DC INVERTER HOSE	$108.58	To Order

Photo	Part No	Description	Price (each)	Stock
	296778	SCREW COLLAR	$6.15	To Order

Photo	Part No	Description	Price (each)	Stock
	898838	HOSE FROM DISCONNECTOR TO DC-DC AND UNDERBODY	$391.47	To Order

Photo	Part No	Description	Price (each)	Stock
	791527	RADIATOR OUTLET HOSE	$37.88	To Order

Photo	Part No	Description	Price (each)	Stock
	82329900	CLIP	$0.84	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	934281	UNDERBODY WATER DELIVERY PIPE	$189.41	To Order

Photo	Part No	Description	Price (each)	Stock
	867920	UNDERBODY WATER RETURN PIPE	$202.03	To Order

Photo	Part No	Description	Price (each)	Stock
	11566224	SCREW	$0.34	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10441790	BRACKET WITH SHEATH	$0.64	To Order

Photo	Part No	Description	Price (each)	Stock
	934887	TUNNEL OUTLET HOSE	$41.65	To Order

Photo	Part No	Description	Price (each)	Stock
	905356	DELIVERY PIPE FROM TUNNEL	$121.21	To Order

Photo	Part No	Description	Price (each)	Stock
	322519	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	905357	RH DISCONNECTOR HOSE	$51.76	To Order

Photo	Part No	Description	Price (each)	Stock
	860867	PIPE FROM DISCONNECTOR TO INVERTER DELIVERY	$227.30	To Order

Photo	Part No	Description	Price (each)	Stock
	863677	TUNNEL OUTLET HOSE	$42.92	To Order

Photo	Part No	Description	Price (each)	Stock
	806850	REAR INVERTER DELIVERY PIPE	$176.78	To Order
	806850	REAR INVERTER DELIVERY PIPE	$176.78	To Order

Photo	Part No	Description	Price (each)	Stock
	320599	CLIP	$1.69	To Order

Photo	Part No	Description	Price (each)	Stock
	862812	REAR INVERTER INLET HOSE	$164.16	To Order

Photo	Part No	Description	Price (each)	Stock
	311096	RUBBER RING	$4.46	To Order

Photo	Part No	Description	Price (each)	Stock
	934888	RETURN HOSE TO TUNNEL	$45.44	To Order

Photo	Part No	Description	Price (each)	Stock
	934282	RETURN PIPE TO TUNNEL	$135.68	To Order

Photo	Part No	Description	Price (each)	Stock
	857679	LH DISCONNECTOR HOSE	$55.54	To Order

Photo	Part No	Description	Price (each)	Stock
	860869	PIPE FROM DISCONNECTER TO RETURN	$315.69	To Order

Photo	Part No	Description	Price (each)	Stock
	860877	HEAT EXCHANGER OUTLET HOSE	$39.12	To Order

Photo	Part No	Description	Price (each)	Stock
	884681	PIPE FROM HEAT EXCHANGER TO DISCONNECTOR	$125.00	To Order

Photo	Part No	Description	Price (each)	Stock
	860878	REAR INVERTER OUTLET HOSE	$108.58	To Order

Photo	Part No	Description	Price (each)	Stock
	856781	PIPE FROM INVERTER TO OBC	$138.89	To Order

Photo	Part No	Description	Price (each)	Stock
	856780	OBC INLET HOSE	$106.06	To Order

Photo	Part No	Description	Price (each)	Stock
	884680	PIPE FROM OBC TO HEAT EXCHANGER	$135.68	To Order

Photo	Part No	Description	Price (each)	Stock
	826127	OBC OUTLET HOSE	$87.11	To Order

Photo	Part No	Description	Price (each)	Stock
	316986	SPACER	$7.16	To Order

Photo	Part No	Description	Price (each)	Stock
	828986	INVERTER COOLING TANK	$189.41	To Order

Photo	Part No	Description	Price (each)	Stock
	926003	TANK SHIELD	$64.39	To Order

Photo	Part No	Description	Price (each)	Stock
	15689501	SCREW	$0.26	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	927176	EMERGENCY CABLE BRACKET	$45.44	To Order

Photo	Part No	Description	Price (each)	Stock
	12644424	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	231626	SCREW	$0.70	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	248061	CLIP 10 X 3.8 BLACK	$1.92	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	374030103	TANK PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	922241	INVERTER VENT PIPE	$189.41	To Order

Photo	Part No	Description	Price (each)	Stock
	891751	RIGID VENT PIPE	$108.58	To Order

Photo	Part No	Description	Price (each)	Stock
	250318	SNAP CLIP	$0.21	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	874762	HOSE	$143.22	To Order

Photo	Part No	Description	Price (each)	Stock
	259508	CLIP	$0.53	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13432070	HOSE COLLAR	$0.49	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	799507	BLEED VALVE SCREW COMPL. WITH OR	$14.32	To Order

Photo	Part No	Description	Price (each)	Stock
	14498801	WASHER	$0.11	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10450690	BRACKET WITH SHEATH	$0.65	To Order

Photo	Part No	Description	Price (each)	Stock
	11625724	SCREW WITH WASHER	$0.88	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	908587	PUMP	908587 PUMP	$922.87	1
0002	791525	RECIRCULATION PUMP MOUNTING BRACKET	791525 RECIRCULATION PUMP MOUNTING BRACKET	$23.97	1
0003	814632	BRACKET FOR MEDIUM TEMPERATURE WATER PUMP	814632 BRACKET FOR MEDIUM TEMPERATURE WATER PUMP	$22.71	1
0004	16281827	SCREW	16281827 SCREW M5 X 14	$0.21	1
0005	16285014	SCREW	16285014 SCREW M5 X 16	$1.78	14
0006	262111	JUBILEE CLAMP	262111 JUBILEE CLAMP	$1.39	24
0007	262111	JUBILEE CLAMP	262111 JUBILEE CLAMP	$1.39	24
0008	791526	HOSE FROM PUMP TO RADIATOR	791526 HOSE FROM PUMP TO RADIATOR	$28.63	1
0009	867919	RETURN HOSE TO PUMP	867919 RETURN HOSE TO PUMP	$227.30	1
0010	262111	JUBILEE CLAMP	262111 JUBILEE CLAMP D.17 - 25	$1.39	3
0011	860134	RH ELECTRIC AXLE CONNECTOR FITTING	860134 RH ELECTRIC AXLE CONNECTOR FITTING	$90.90	1
0012	860135	LH ELECTRIC AXLE CONNECTOR FITTING	860135 LH ELECTRIC AXLE CONNECTOR FITTING	$90.90	1
0013	248334	SCREW IN STOCK	248334 SCREW M6 X 16 IN STOCK	$0.58	6
0014	291225	P clip Bracket With Sheath IN STOCK	291225 P clip Bracket With Sheath IN STOCK	$4.81	1
0014	320600	CLIP	320600 CLIP For vehicles up to Ass.ly No. 176297, also order screw 16296924 ref. 15	$2.10	1
0015	16296934	SCREW 6 X 14MM IN STOCK	16296934 SCREW 6 X 14MM M6 X 10 IN STOCK	$0.41	1
0015	16296934	SCREW 6 X 14MM IN STOCK	16296934 SCREW 6 X 14MM M6 X 14 IN STOCK	$0.41	1
0016	896562	CLIP	896562 CLIP	$0.55	2
0017	895856	AXLE INVERTER CONNECTOR HOSE	895856 AXLE INVERTER CONNECTOR HOSE	$505.13	1
0018	262111	JUBILEE CLAMP	262111 JUBILEE CLAMP	$1.39	2
0019	815157	RH ELECTRIC AXLE CONNECTOR FITTING	815157 RH ELECTRIC AXLE CONNECTOR FITTING	$94.70	1
0020	815158	LH ELECTRIC AXLE CONNECTOR FITTING	815158 LH ELECTRIC AXLE CONNECTOR FITTING	$94.70	1
0021	10442190	BRACKET WITH SHEATH IN STOCK	10442190 BRACKET WITH SHEATH IN STOCK	$0.67 MSRP: ~~2.25~~ (70.2% off)	1
0022	14040614	NUT IN STOCK	14040614 NUT IN STOCK	$0.14	1
0023	180137	TEMPERATURE SENSOR IN STOCK	180137 TEMPERATURE SENSOR IN STOCK	$28.40 MSRP: ~~32.99~~ (13.9% off)	3
0024	10298460	GASKET IN STOCK	10298460 GASKET No longer supplied IN STOCK	$0.14 MSRP: ~~1.25~~ (88.8% off)	3
0025	818747	DC-DC INVERTER HOSE	818747 DC-DC INVERTER HOSE	$108.58	1
0026	296778	SCREW COLLAR	296778 SCREW COLLAR	$6.15	1
0027	898838	HOSE FROM DISCONNECTOR TO DC-DC AND UNDERBODY	898838 HOSE FROM DISCONNECTOR TO DC-DC AND UNDERBODY	$391.47	1
0028	791527	RADIATOR OUTLET HOSE	791527 RADIATOR OUTLET HOSE	$37.88	1
0029	82329900	CLIP IN STOCK	82329900 CLIP IN STOCK	$0.84	1
0030	934281	UNDERBODY WATER DELIVERY PIPE	934281 UNDERBODY WATER DELIVERY PIPE	$189.41	1
0031	867920	UNDERBODY WATER RETURN PIPE	867920 UNDERBODY WATER RETURN PIPE	$202.03	1
0032	11566224	SCREW IN STOCK	11566224 SCREW M5 X 16 IN STOCK	$0.34	2
0033	10441790	BRACKET WITH SHEATH	10441790 BRACKET WITH SHEATH	$0.64 MSRP: ~~3.45~~ (81.4% off)	3
0034	934887	TUNNEL OUTLET HOSE	934887 TUNNEL OUTLET HOSE	$41.65	1
0035	905356	DELIVERY PIPE FROM TUNNEL	905356 DELIVERY PIPE FROM TUNNEL	$121.21	1
0036	322519	CLIP	322519 CLIP	-	3	Enquire
0037	905357	RH DISCONNECTOR HOSE	905357 RH DISCONNECTOR HOSE	$51.76	1
0038	860867	PIPE FROM DISCONNECTOR TO INVERTER DELIVERY	860867 PIPE FROM DISCONNECTOR TO INVERTER DELIVERY	$227.30	1
0039	863677	TUNNEL OUTLET HOSE	863677 TUNNEL OUTLET HOSE	$42.92	1
0040	806850	REAR INVERTER DELIVERY PIPE	806850 REAR INVERTER DELIVERY PIPE	$176.78	1
0040	806850	REAR INVERTER DELIVERY PIPE	806850 REAR INVERTER DELIVERY PIPE	$176.78	1
0041	320599	CLIP	320599 CLIP 1 compartment-	$1.69	1
0042	862812	REAR INVERTER INLET HOSE	862812 REAR INVERTER INLET HOSE	$164.16	1
0043	311096	RUBBER RING	311096 RUBBER RING	$4.46	1
0044	934888	RETURN HOSE TO TUNNEL	934888 RETURN HOSE TO TUNNEL	$45.44	1
0045	934282	RETURN PIPE TO TUNNEL	934282 RETURN PIPE TO TUNNEL	$135.68	1
0046	857679	LH DISCONNECTOR HOSE	857679 LH DISCONNECTOR HOSE	$55.54	1
0047	860869	PIPE FROM DISCONNECTER TO RETURN	860869 PIPE FROM DISCONNECTER TO RETURN	$315.69	1
0048	860877	HEAT EXCHANGER OUTLET HOSE	860877 HEAT EXCHANGER OUTLET HOSE	$39.12	1
0049	884681	PIPE FROM HEAT EXCHANGER TO DISCONNECTOR	884681 PIPE FROM HEAT EXCHANGER TO DISCONNECTOR	$125.00	1
0050	860878	REAR INVERTER OUTLET HOSE	860878 REAR INVERTER OUTLET HOSE	$108.58	1
0051	856781	PIPE FROM INVERTER TO OBC	856781 PIPE FROM INVERTER TO OBC	$138.89	1
0052	856780	OBC INLET HOSE	856780 OBC INLET HOSE	$106.06	1
0053	884680	PIPE FROM OBC TO HEAT EXCHANGER	884680 PIPE FROM OBC TO HEAT EXCHANGER	$135.68	1
0054	826127	OBC OUTLET HOSE	826127 OBC OUTLET HOSE	$87.11	1
0055	316986	SPACER	316986 SPACER	$7.16	2
0056	828986	INVERTER COOLING TANK	828986 INVERTER COOLING TANK	$189.41	1
0057	926003	TANK SHIELD	926003 TANK SHIELD	$64.39	1
0058	15689501	SCREW IN STOCK	15689501 SCREW IN STOCK	$0.26	2
0059	927176	EMERGENCY CABLE BRACKET	927176 EMERGENCY CABLE BRACKET	$45.44	1
0060	12644424	WASHER IN STOCK	12644424 WASHER IN STOCK	$0.06 MSRP: ~~0.40~~ (85% off)	1
0061	231626	SCREW IN STOCK	231626 SCREW M6 X 70 IN STOCK	$0.70	1
0062	248061	CLIP 10 X 3.8 BLACK IN STOCK	248061 CLIP 10 X 3.8 BLACK Black IN STOCK	$1.92 MSRP: ~~1.95~~ (1.5% off)	1
0063	374030103	TANK PLUG	374030103 TANK PLUG	-	1	Enquire
0064	922241	INVERTER VENT PIPE	922241 INVERTER VENT PIPE	$189.41	1
0065	891751	RIGID VENT PIPE	891751 RIGID VENT PIPE	$108.58	1
0066	250318	SNAP CLIP IN STOCK	250318 SNAP CLIP IN STOCK	$0.21	1
0067	874762	HOSE	874762 HOSE	$143.22	1
0068	259508	CLIP IN STOCK	259508 CLIP 1 compartment- IN STOCK	$0.53	2
0069	13432070	HOSE COLLAR ARRIVING SOON	13432070 HOSE COLLAR D. 15.7 ARRIVING SOON	$0.49 MSRP: ~~1.07~~ (54.2% off)	1
0070	799507	BLEED VALVE SCREW COMPL. WITH OR	799507 BLEED VALVE SCREW COMPL. WITH OR	$14.32	3
0071	14498801	WASHER IN STOCK	14498801 WASHER D. 6.45 - 16 X 2 IN STOCK	$0.11 MSRP: ~~0.20~~ (45% off)	1
0072	10450690	BRACKET WITH SHEATH	10450690 BRACKET WITH SHEATH	$0.65 MSRP: ~~1.70~~ (61.8% off)	1
0073	11625724	SCREW WITH WASHER	11625724 SCREW WITH WASHER M6 X 16	$0.88	1
