Rear Active Aero

Ferrari SF90 Stradale Europe

Find Your Part

Ferrari SF90 Stradale Europe - REAR ACTIVE AERO

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
853220 COMPL. VARIABLE GEOM. SPOILER TRIM $75.88 To Order
Photo Part No Description Price (each) Stock
935428 CENTRE VARIABLE GEOM. SPOILER SEAL $70.97 To Order
Photo Part No Description Price (each) Stock
853230 RH LATERAL VARIABLE GEOM. SPOILER TRIM $24.01 To Order
Photo Part No Description Price (each) Stock
853229 LH LATERAL VARIABLE GEOM. SPOILER TRIM $24.01 To Order
Photo Part No Description Price (each) Stock
954031 RH SPOILER ADJUSTMENT BRACKET ON LEVER $39.19 To Order
Photo Part No Description Price (each) Stock
954030 LH SPOILER ADJUSTMENT BRACKET ON LEVER $39.19 To Order
Photo Part No Description Price (each) Stock
877619 UPPER REAR WING LEVER $94.86 To Order
Photo Part No Description Price (each) Stock
866531 RH VARIABLE GEOM. WING TIE-ROD $74.62 To Order
Photo Part No Description Price (each) Stock
866530 LH VARIABLE GEOM. WING TIE-ROD $74.62 To Order
Photo Part No Description Price (each) Stock
853231 RH VARIABLE GEOM. SPOILER MOUNTING BRACKET $32.88 To Order
Photo Part No Description Price (each) Stock
853232 LH VARIABLE GEOM. SPOILER MOUNTING BRACKET $32.88 To Order
Photo Part No Description Price (each) Stock
877612 RH MOUNT FOR REAR WING LEVERS $379.49 To Order
Photo Part No Description Price (each) Stock
877610 LH MOUNT FOR REAR WING LEVERS $379.49 To Order
Photo Part No Description Price (each) Stock
937670 LOWER REAR WING LEVER $125.22 To Order
Photo Part No Description Price (each) Stock
335169 LINEAR ELECTRIC ACTUATOR $597.08 To Order
Photo Part No Description Price (each) Stock
862627 LATERAL ACTUATOR MOUNTING BRACKET $31.61 To Order
Photo Part No Description Price (each) Stock
814978 CLIP BEARING $24.27 To Order
Photo Part No Description Price (each) Stock
857463 SCREW $0.21 To Order
Photo Part No Description Price (each) Stock
16284934 FLANGED SCREW $0.70 IN STOCK
Photo Part No Description Price (each) Stock
859424 RH ACTUATOR HEAT SHIELD $49.32 To Order
801188 RH ACTUATOR HEAT SHIELD $49.32 To Order
Photo Part No Description Price (each) Stock
859423 LH ACTUATOR HEAT SHIELD $49.32 To Order
Photo Part No Description Price (each) Stock
860287 RH HEAT SHIELD HATCH $24.01 To Order
Photo Part No Description Price (each) Stock
860286 LH HEAT SHIELD HATCH $24.01 To Order
Photo Part No Description Price (each) Stock
62769800 WASHER D.5-14 X 2.5 $0.21 IN STOCK
Photo Part No Description Price (each) Stock
303385 CLIP $0.26 IN STOCK
Photo Part No Description Price (each) Stock
12643778 BLACK WASHER D.6.45-18X1.5 $0.24 IN STOCK
Photo Part No Description Price (each) Stock
11566224 SCREW $0.34 IN STOCK
Photo Part No Description Price (each) Stock
911975 WASHER $0.35 To Order
Photo Part No Description Price (each) Stock
984988 SEEGER RING $0.59 To Order
Photo Part No Description Price (each) Stock
84863200 WASHER $6.67 To Order
Photo Part No Description Price (each) Stock
862343 VARIABLE GEOM. WING ACTUATOR PIVOT PIN $14.63 To Order
Photo Part No Description Price (each) Stock
893538 SCREW $9.28 To Order
Photo Part No Description Price (each) Stock
814976 BUSH $5.23 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.31 IN STOCK
Photo Part No Description Price (each) Stock
893539 SCREW $7.84 To Order
Photo Part No Description Price (each) Stock
16286121 SCREW M6 X 20 $0.66 IN STOCK
897538 SCREW $1.53 To Order
16286121 SCREW M6 X 20 $0.66 IN STOCK
Photo Part No Description Price (each) Stock
16285921 SCREW $4.21 To Order
Photo Part No Description Price (each) Stock
815181 PIN $18.96 To Order
Photo Part No Description Price (each) Stock
939521 BUSH $3.63 To Order
Photo Part No Description Price (each) Stock
959555 RH REAR WING RETURN SPRING $46.79 To Order
Photo Part No Description Price (each) Stock
959554 LH REAR WING RETURN SPRING $46.79 To Order
Photo Part No Description Price (each) Stock
959700 SAFETY CLIP $3.20 To Order
Photo Part No Description Price (each) Stock
897538 SCREW $1.53 To Order
Photo Part No Description Price (each) Stock
871881 LH CONNECTOR MOUNTING BRACKET $20.23 To Order
Photo Part No Description Price (each) Stock
291283 CLIP $0.50 IN STOCK
Photo Part No Description Price (each) Stock
953916 BUSH SEAL $5.13 To Order
Photo Part No Description Price (each) Stock
970713 BUSH $8.83 To Order
Photo Part No Description Price (each) Stock
63482200 FERRARI LETTERING $81.02 IN STOCK
70006277 FERRARI BADGE $73.35 To Order
Photo Part No Description Price (each) Stock
89144000 WASHER $0.34 To Order
Photo Part No Description Price (each) Stock
88074800 CLIP $0.21 IN STOCK
View All

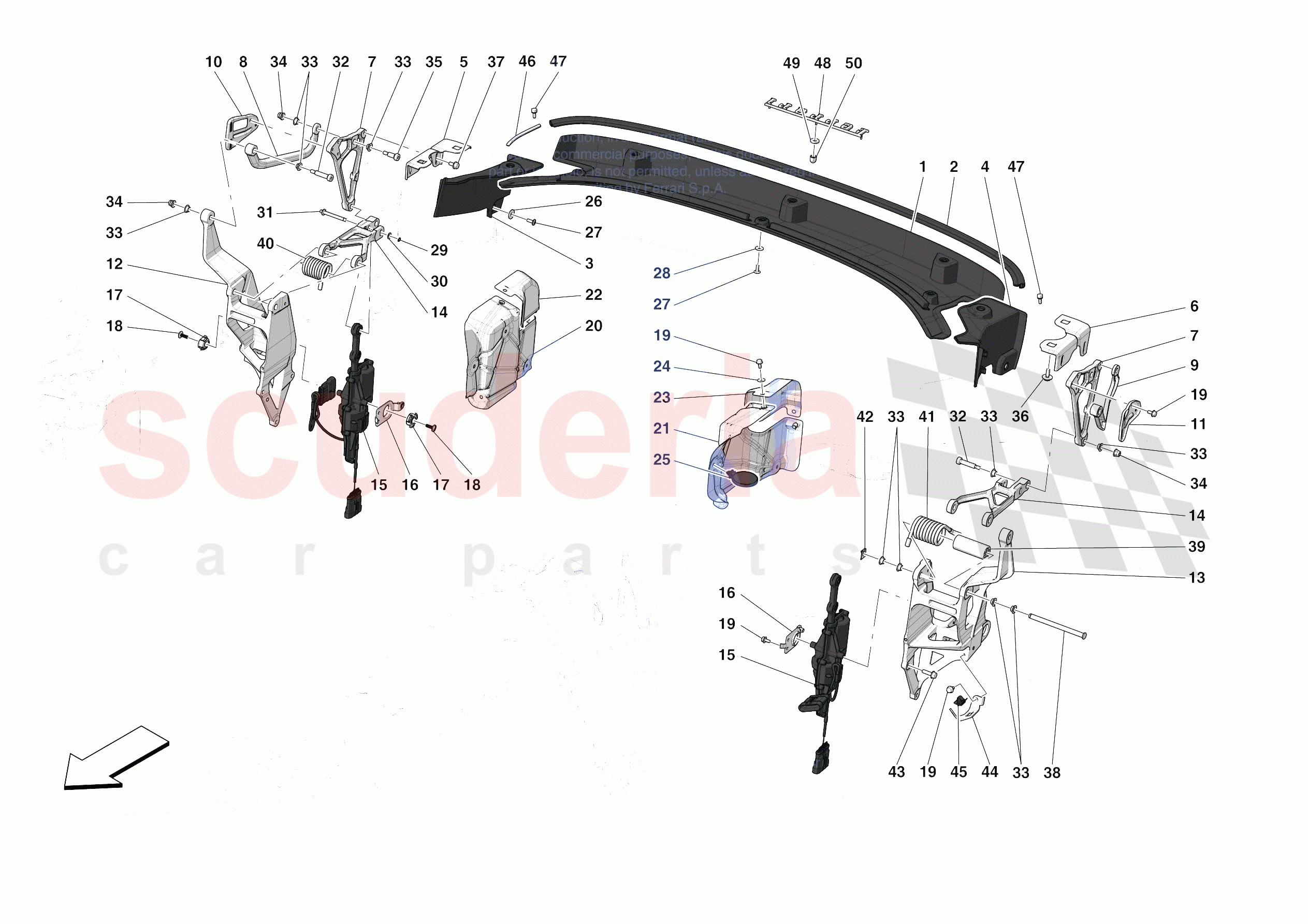

REAR ACTIVE AERO of Ferrari Ferrari SF90 Stradale Europe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
0001 853220
COMPL. VARIABLE GEOM. SPOILER TRIM
Not for Assetto Fiorano FIO1/FIO2 		$75.88 1
0002 935428
CENTRE VARIABLE GEOM. SPOILER SEAL
Not for Assetto Fiorano FIO1/FIO2 		$70.97 1
0003 853230
RH LATERAL VARIABLE GEOM. SPOILER TRIM 		$24.01 1
0004 853229
LH LATERAL VARIABLE GEOM. SPOILER TRIM 		$24.01 1
0005 954031
RH SPOILER ADJUSTMENT BRACKET ON LEVER 		$39.19 1
0006 954030
LH SPOILER ADJUSTMENT BRACKET ON LEVER 		$39.19 1
0007 877619
UPPER REAR WING LEVER 		$94.86 2
0008 866531
RH VARIABLE GEOM. WING TIE-ROD 		$74.62 1
0009 866530
LH VARIABLE GEOM. WING TIE-ROD 		$74.62 1
0010 853231
RH VARIABLE GEOM. SPOILER MOUNTING BRACKET 		$32.88 1
0011 853232
LH VARIABLE GEOM. SPOILER MOUNTING BRACKET 		$32.88 1
0012 877612
RH MOUNT FOR REAR WING LEVERS 		$379.49 1
0013 877610
LH MOUNT FOR REAR WING LEVERS 		$379.49 1
0014 937670
LOWER REAR WING LEVER 		$125.22 2
0015 335169
LINEAR ELECTRIC ACTUATOR 		$597.08 2
0016 862627
LATERAL ACTUATOR MOUNTING BRACKET 		$31.61 2
0017 814978
CLIP BEARING 		$24.27 4
0018 857463
SCREW
5 X 14 		$0.21 4
0019 16284934
FLANGED SCREW
M5 X 10
IN STOCK 		$0.70 19
0020 859424
RH ACTUATOR HEAT SHIELD
Applies until depletion 		$49.32 1
0020 801188
RH ACTUATOR HEAT SHIELD
Applicable after depletion of 859424 		$49.32 1
0021 859423
LH ACTUATOR HEAT SHIELD 		$49.32 1
0022 860287
RH HEAT SHIELD HATCH 		$24.01 1
0023 860286
LH HEAT SHIELD HATCH 		$24.01 1
0024 62769800
WASHER D.5-14 X 2.5
IN STOCK 		$0.21 (30% off) 4
0025 303385
CLIP
170 mm
IN STOCK 		$0.26 2
0026 12643778
BLACK WASHER D.6.45-18X1.5
IN STOCK 		$0.24 (52% off) 4
0027 11566224
SCREW
M5 X 14
IN STOCK 		$0.34 10
0028 911975
WASHER 		$0.35 6
0029 984988
SEEGER RING 		$0.59 2
0030 84863200
WASHER 		$6.67 2
0031 862343
VARIABLE GEOM. WING ACTUATOR PIVOT PIN 		$14.63 2
0032 893538
SCREW 		$9.28 4
0033 814976
BUSH 		$5.23 20
0034 14059290
FLANGED NUT M6
IN STOCK 		$1.31 6
0035 893539
SCREW 		$7.84 2
0036 16286121
SCREW M6 X 20
M6 X 18
IN STOCK 		$0.66 (51.1% off) 4
0036 897538
SCREW
M6 X 18 		$1.53 4
0036 16286121
SCREW M6 X 20
M6 X 18
IN STOCK 		$0.66 (51.1% off) 4
0037 16285921
SCREW
M6 X 12 		$4.21 4
0038 815181
PIN 		$18.96 2
0039 939521
BUSH 		$3.63 2
0040 959555
RH REAR WING RETURN SPRING 		$46.79 1
0041 959554
LH REAR WING RETURN SPRING 		$46.79 1
0042 959700
SAFETY CLIP 		$3.20 2
0043 897538
SCREW
M6 X 20 		$1.53 6
0044 871881
LH CONNECTOR MOUNTING BRACKET 		$20.23 1
0045 291283
CLIP
IN STOCK 		$0.50 2
0046 953916
BUSH SEAL
Applicable for Assetto Fiorano FIO1/FIO2 		$5.13 2
0047 970713
BUSH 		$8.83 4
0048 63482200
FERRARI LETTERING
IN STOCK 		$81.02 (33% off) 1
0048 70006277
FERRARI BADGE
Satin finish version; Off-catalogue version 		$73.35 1
0049 89144000
WASHER 		$0.34 3
0050 88074800
CLIP
IN STOCK 		$0.21 3
