Crankcase

Ferrari SF90 Stradale Europe

Find Your Part

Ferrari SF90 Stradale Europe - CRANKCASE

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
817509 CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY $4,151.80 To Order
925899 CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY $4,901.74 To Order
Photo Part No Description Price (each) Stock
11066876 SEEGER RING $0.06 To Order
Photo Part No Description Price (each) Stock
247049 BEARING $46.74 IN STOCK
Photo Part No Description Price (each) Stock
11060276 SEEGER RING $0.41 IN STOCK
Photo Part No Description Price (each) Stock
304697 DRIVE JOINT $165.17 To Order
Photo Part No Description Price (each) Stock
881112 COMPL. VALVE HOLDER $190.58 To Order
Photo Part No Description Price (each) Stock
103994 GASKET $5.58 To Order
103994 GASKET $5.58 To Order
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
13027024 SCREW M6 X 16MM $0.20 IN STOCK
Photo Part No Description Price (each) Stock
164400 THREADED PLUG $3.31 IN STOCK
Photo Part No Description Price (each) Stock
127635 THREADED PLUG $2.88 To Order
Photo Part No Description Price (each) Stock
134705 GASKET $0.34 To Order
Photo Part No Description Price (each) Stock
867186 GASKET $11.68 To Order
925945 GASKET $9.12 To Order
Photo Part No Description Price (each) Stock
339523 CHAIN COOLING NOZZLE ASSEMBLY $63.52 To Order
Photo Part No Description Price (each) Stock
282393 SCREW $0.67 To Order
Photo Part No Description Price (each) Stock
766469 PIN $5.76 To Order
Photo Part No Description Price (each) Stock
10259960 Copper Washer 18 - 24 x 1.5 $0.31 IN STOCK
Photo Part No Description Price (each) Stock
306145 Thread Cap M18 x 1.5 $8.58 IN STOCK
Photo Part No Description Price (each) Stock
315493 SCREW $1.01 To Order
Photo Part No Description Price (each) Stock
298859 PISTON COOLING NOZZLE ASSEMBLY $26.66 To Order
Photo Part No Description Price (each) Stock
298858 PISTON COOLING NOZZLE ASSEMBLY $38.11 To Order
Photo Part No Description Price (each) Stock
185360 CENTERING DOWEL $2.80 IN STOCK
Photo Part No Description Price (each) Stock
897847 STUD BOLT $19.48 To Order
Photo Part No Description Price (each) Stock
897848 STUD BOLT $16.95 To Order
Photo Part No Description Price (each) Stock
231620 SCREW $0.31 IN STOCK
Photo Part No Description Price (each) Stock
271598 GASKET CRANKCASE $35.43 IN STOCK
Photo Part No Description Price (each) Stock
338795 GASKET $4.54 To Order
Photo Part No Description Price (each) Stock
334275 CYLINDER SLEEVE $258.26 To Order
Photo Part No Description Price (each) Stock
10263460 COPPER GASKET D.28-22.3 X 1.5 $0.35 IN STOCK
Photo Part No Description Price (each) Stock
307477 THREADED PLUG $3.33 IN STOCK
Photo Part No Description Price (each) Stock
291544 O-RING $0.35 To Order
Photo Part No Description Price (each) Stock
753181 PLUG $6.70 To Order
Photo Part No Description Price (each) Stock
282393 SCREW $0.67 To Order
Photo Part No Description Price (each) Stock
781384 PLUG $6.70 To Order
Photo Part No Description Price (each) Stock
311001 CENTERING DOWEL $2.71 To Order
Photo Part No Description Price (each) Stock
291078 THREADED PLUG $2.28 To Order
Photo Part No Description Price (each) Stock
278120 STUD BOLT $22.85 To Order
Photo Part No Description Price (each) Stock
282753 THREADED PLUG $5.76 To Order
Photo Part No Description Price (each) Stock
137192 O-RING $0.34 IN STOCK
Photo Part No Description Price (each) Stock
901018 PLUG $24.12 To Order
Photo Part No Description Price (each) Stock
342332 STUD BOLT $14.40 To Order
Photo Part No Description Price (each) Stock
282755 THREADED PLUG $1.87 To Order
Photo Part No Description Price (each) Stock
939188 BUSH $4.49 To Order
View All

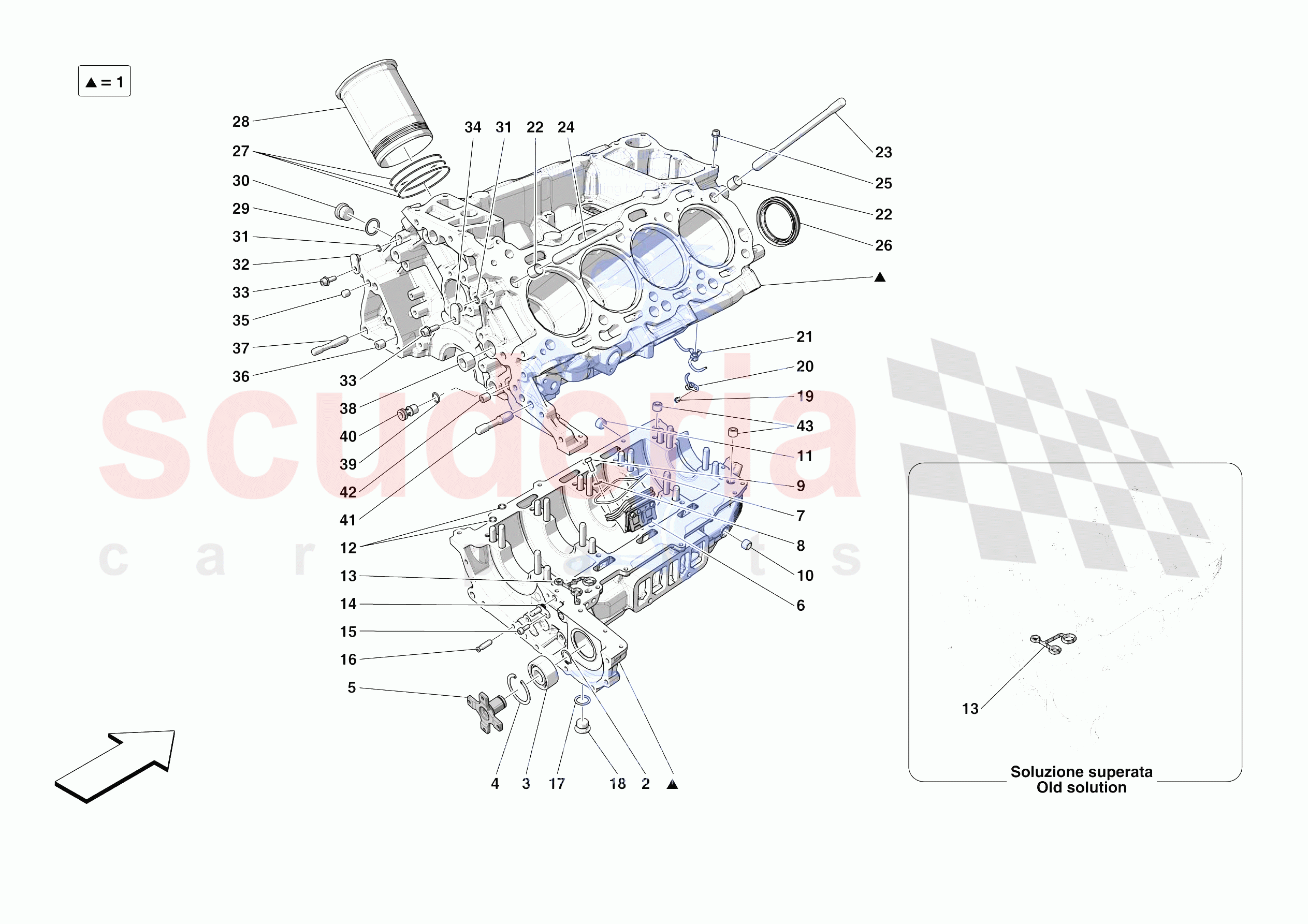

CRANKCASE of Ferrari Ferrari SF90 Stradale Europe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
0001 817509
CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY
Applies until depletion; Applicable up to engine No. 478274 		$4,151.80 1
0001 925899
CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY
After depletion, also order gasket 925945 ref.13 and bush 939188 ref.43; Applicable after depletion of 817509; Applicable from engine No. 478275 		$4,901.74 1
0002 11066876
SEEGER RING 		$0.06 (82.9% off) 1
0003 247049
BEARING
IN STOCK 		$46.74 1
0004 11060276
SEEGER RING
IN STOCK 		$0.41 (76.6% off) 1
0005 304697
DRIVE JOINT 		$165.17 1
0006 881112
COMPL. VALVE HOLDER 		$190.58 4
0007 103994
GASKET
Also included in engine gasket set; Applicable from engine No. 478275 		$5.58 4
0007 103994
GASKET 		$5.58 4
0008 11197774
WASHER
IN STOCK 		$0.06 (80% off) 8
0009 13027024
SCREW M6 X 16MM
M6 X 14
IN STOCK 		$0.20 (80% off) 8
0010 164400
THREADED PLUG
IN STOCK 		$3.31 1
0011 127635
THREADED PLUG
M18 X 11 X 1.5 		$2.88 (30.9% off) 1
0012 134705
GASKET
Also included in engine gasket set 		$0.34 (58.5% off) 20
0013 867186
GASKET
Applicable up to engine No. 478274 		$11.68 1
0013 925945
GASKET
Also included in engine gasket set; Applicable from engine No. 478275 		$9.12 1
0014 339523
CHAIN COOLING NOZZLE ASSEMBLY 		$63.52 1
0015 282393
SCREW
M6 X 16 		$0.67 2
0016 766469
PIN 		$5.76 1
0017 10259960
Copper Washer 18 - 24 x 1.5
Also included in engine gasket set
IN STOCK 		$0.31 (75.2% off) 3
0018 306145
Thread Cap M18 x 1.5
IN STOCK 		$8.58 3
0019 315493
SCREW
M4 X 10 		$1.01 12
0020 298859
PISTON COOLING NOZZLE ASSEMBLY 		$26.66 8
0021 298858
PISTON COOLING NOZZLE ASSEMBLY 		$38.11 4
0022 185360
CENTERING DOWEL
IN STOCK 		$2.80 4
0023 897847
STUD BOLT 		$19.48 18
0024 897848
STUD BOLT 		$16.95 2
0025 231620
SCREW
M6 X 25
IN STOCK 		$0.31 (11.4% off) 17
0026 271598
GASKET CRANKCASE
Also included in engine gasket set
IN STOCK 		$35.43 1
0027 338795
GASKET
Also included in engine gasket set 		$4.54 24
0028 334275
CYLINDER SLEEVE 		$258.26 8
0029 10263460
COPPER GASKET D.28-22.3 X 1.5
Also included in engine gasket set
IN STOCK 		$0.35 (65% off) 1
0030 307477
THREADED PLUG
IN STOCK 		$3.33 1
0031 291544
O-RING
Also included in engine gasket set 		$0.35 2
0032 753181
PLUG 		$6.70 1
0033 282393
SCREW
M6 X 16 		$0.67 2
0034 781384
PLUG 		$6.70 1
0035 311001
CENTERING DOWEL 		$2.71 2
0036 291078
THREADED PLUG
M12 X 11 		$2.28 1
0037 278120
STUD BOLT 		$22.85 7
0038 282753
THREADED PLUG 		$5.76 2
0039 137192
O-RING
Also included in engine gasket set
IN STOCK 		$0.34 (32% off) 1
0040 901018
PLUG 		$24.12 1
0041 342332
STUD BOLT 		$14.40 1
0042 282755
THREADED PLUG
D. 10 X 1.25 		$1.87 3
0043 939188
BUSH
Applicable from engine No. 478275 		$4.49 2
