Ferrari SF90 Spider USA - COOLING SYSTEM PIPES

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
848528 UNDERBODY WATER RETURN PIPE $239.87 To Order
Photo Part No Description Price (each) Stock
262114 HOSE CLAMP $1.05 IN STOCK
Photo Part No Description Price (each) Stock
867587 HOSE TO UNDERBODY PIPE $35.34 To Order
Photo Part No Description Price (each) Stock
867586 RIGID 3-WAY PIPE $123.71 To Order
Photo Part No Description Price (each) Stock
867585 RADIATOR OUTLET HOSE $53.02 To Order
Photo Part No Description Price (each) Stock
790841 RETURN HOSE TO PUMP $89.62 To Order
Photo Part No Description Price (each) Stock
262383 COLLAR $2.70 IN STOCK
Photo Part No Description Price (each) Stock
895897 BUSH $2.65 To Order
827819 BUSH $3.15 To Order
Photo Part No Description Price (each) Stock
857838 BUSH $2.39 To Order
Photo Part No Description Price (each) Stock
899141 UNDERBODY WATER DELIVERY PIPE $315.63 To Order
848510 UNDERBODY WATER DELIVERY PIPE $429.26 To Order
Photo Part No Description Price (each) Stock
962070 RADIATOR INLET HOSE $45.44 To Order
Photo Part No Description Price (each) Stock
790835 DELIVERY SLEEVE FROM PUMP $87.09 To Order
Photo Part No Description Price (each) Stock
867646 BRACKET FOR RH UNDERBODY WATER PIPE $10.48 To Order
Photo Part No Description Price (each) Stock
867645 BRACKET FOR LH UNDERBODY WATER PIPE $10.48 To Order
Photo Part No Description Price (each) Stock
11566224 SCREW $0.33 IN STOCK
Photo Part No Description Price (each) Stock
790848 LOWER BRACKET FOR UNDERBODY PILLORY BLOCK $23.97 To Order
Photo Part No Description Price (each) Stock
872507 UPPER MALE BRACKET FOR UNDERBODY RETAINER BLOCK $21.45 To Order
Photo Part No Description Price (each) Stock
848900 UPPER FEMALE BRACKET FOR UNDERBODY RETAINER BLOCK $17.66 To Order
Photo Part No Description Price (each) Stock
86574700 SCREW $0.61 To Order
Photo Part No Description Price (each) Stock
16281827 SCREW $0.21 To Order
Photo Part No Description Price (each) Stock
790850 LOWER RETAINER BLOCK FOR UNDERBODY PIPE $9.58 To Order
Photo Part No Description Price (each) Stock
872509 UPPER RETAINER BLOCK FOR UNDERBODY PIPE $9.58 To Order
Photo Part No Description Price (each) Stock
292835 BUSH $1.13 IN STOCK
Photo Part No Description Price (each) Stock
770212 RADIATOR CONNECTOR HOSE UNION $49.23 To Order
Photo Part No Description Price (each) Stock
292206 PIPE RETAINER CLIP $0.81 To Order
Photo Part No Description Price (each) Stock
296781 PIPE CLAMP 30-45MM $7.73 IN STOCK
Photo Part No Description Price (each) Stock
867589 UNDERBODY RADIATOR SELF-BLEEDING PIPE $116.15 To Order
Photo Part No Description Price (each) Stock
13125470 COLLAR $0.58 IN STOCK
Photo Part No Description Price (each) Stock
790842 VENT HOSE FROM RADIATOR TO DISCONNECTER UNION $32.81 To Order
817218 VENT HOSE FROM RADIATOR TO DISCONNECTER UNION $69.43 To Order
Photo Part No Description Price (each) Stock
10441490 BRACKET WITH SHEATH $0.52 IN STOCK
Photo Part No Description Price (each) Stock
917171 VENT HOSE FROM DISCONNECTOR TO 3-WAY $50.49 To Order
Photo Part No Description Price (each) Stock
85141400 CLIP $0.59 IN STOCK
Photo Part No Description Price (each) Stock
159918 CLIP SET $0.82 IN STOCK
Photo Part No Description Price (each) Stock
180137 TEMPERATURE SENSOR $28.40 IN STOCK
View All

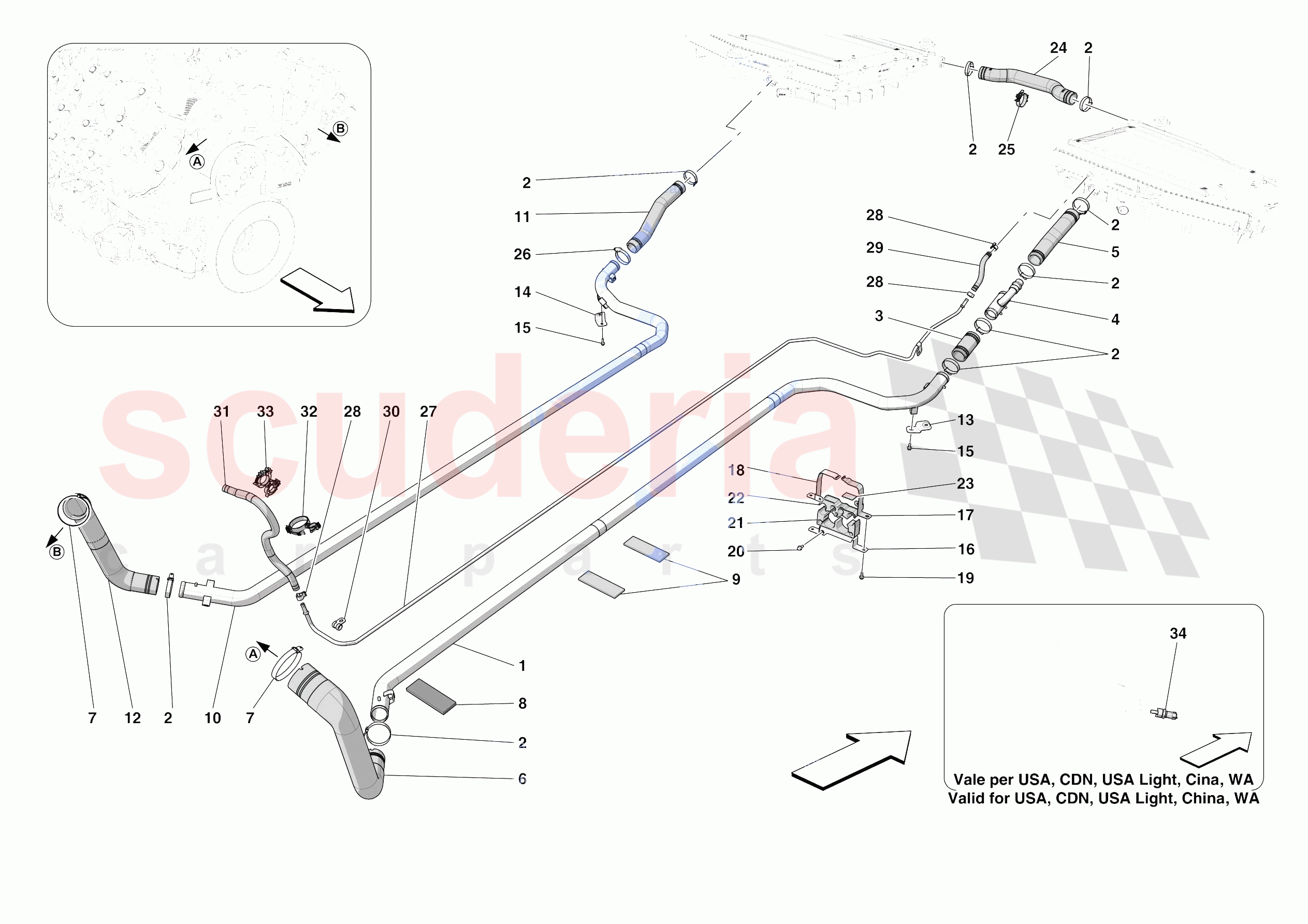

COOLING SYSTEM PIPES of Ferrari Ferrari SF90 Spider USA Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
0001 848528
UNDERBODY WATER RETURN PIPE 		$239.87 1
0002 262114
HOSE CLAMP
IN STOCK 		$1.05 9
0003 867587
HOSE TO UNDERBODY PIPE 		$35.34 1
0004 867586
RIGID 3-WAY PIPE 		$123.71 1
0005 867585
RADIATOR OUTLET HOSE 		$53.02 1
0006 790841
RETURN HOSE TO PUMP 		$89.62 1
0007 262383
COLLAR
IN STOCK 		$2.70 2
0008 895897
BUSH
Applies until depletion 		$2.65 1
0008 827819
BUSH
Applicable after depletion of 895897 		$3.15 1
0009 857838
BUSH 		$2.39 2
0010 899141
UNDERBODY WATER DELIVERY PIPE 		$315.63 1
0010 848510
UNDERBODY WATER DELIVERY PIPE 		$429.26 1
0011 962070
RADIATOR INLET HOSE 		$45.44 1
0012 790835
DELIVERY SLEEVE FROM PUMP 		$87.09 1
0013 867646
BRACKET FOR RH UNDERBODY WATER PIPE 		$10.48 1
0014 867645
BRACKET FOR LH UNDERBODY WATER PIPE 		$10.48 1
0015 11566224
SCREW
M5 X 16
IN STOCK 		$0.33 5
0016 790848
LOWER BRACKET FOR UNDERBODY PILLORY BLOCK 		$23.97 3
0017 872507
UPPER MALE BRACKET FOR UNDERBODY RETAINER BLOCK 		$21.45 3
0018 848900
UPPER FEMALE BRACKET FOR UNDERBODY RETAINER BLOCK 		$17.66 3
0019 86574700
SCREW
M5 X 16 		$0.61 6
0020 16281827
SCREW
M5 X 14 		$0.21 6
0021 790850
LOWER RETAINER BLOCK FOR UNDERBODY PIPE 		$9.58 3
0022 872509
UPPER RETAINER BLOCK FOR UNDERBODY PIPE 		$9.58 3
0023 292835
BUSH
IN STOCK 		$1.13 3
0024 770212
RADIATOR CONNECTOR HOSE UNION 		$49.23 1
0025 292206
PIPE RETAINER CLIP 		$0.81 1
0026 296781
PIPE CLAMP 30-45MM
IN STOCK 		$7.73 1
0027 867589
UNDERBODY RADIATOR SELF-BLEEDING PIPE 		$116.15 1
0028 13125470
COLLAR
IN STOCK 		$0.58 3
0029 790842
VENT HOSE FROM RADIATOR TO DISCONNECTER UNION
Applies until depletion 		$32.81 1
0029 817218
VENT HOSE FROM RADIATOR TO DISCONNECTER UNION
Applicable after depletion of 790842 		$69.43 1
0030 10441490
BRACKET WITH SHEATH
IN STOCK 		$0.52 1
0031 917171
VENT HOSE FROM DISCONNECTOR TO 3-WAY 		$50.49 1
0032 85141400
CLIP
IN STOCK 		$0.59 1
0033 159918
CLIP SET
IN STOCK 		$0.82 1
0034 180137
TEMPERATURE SENSOR
IN STOCK 		$28.40 (13.9% off) 1
