Name: CRANKCASE
Rating: 4.2 (1 reviews)

CRANKCASE of Ferrari Ferrari SF90 Spider USA

View All

Ferrari SF90 Spider USA - CRANKCASE

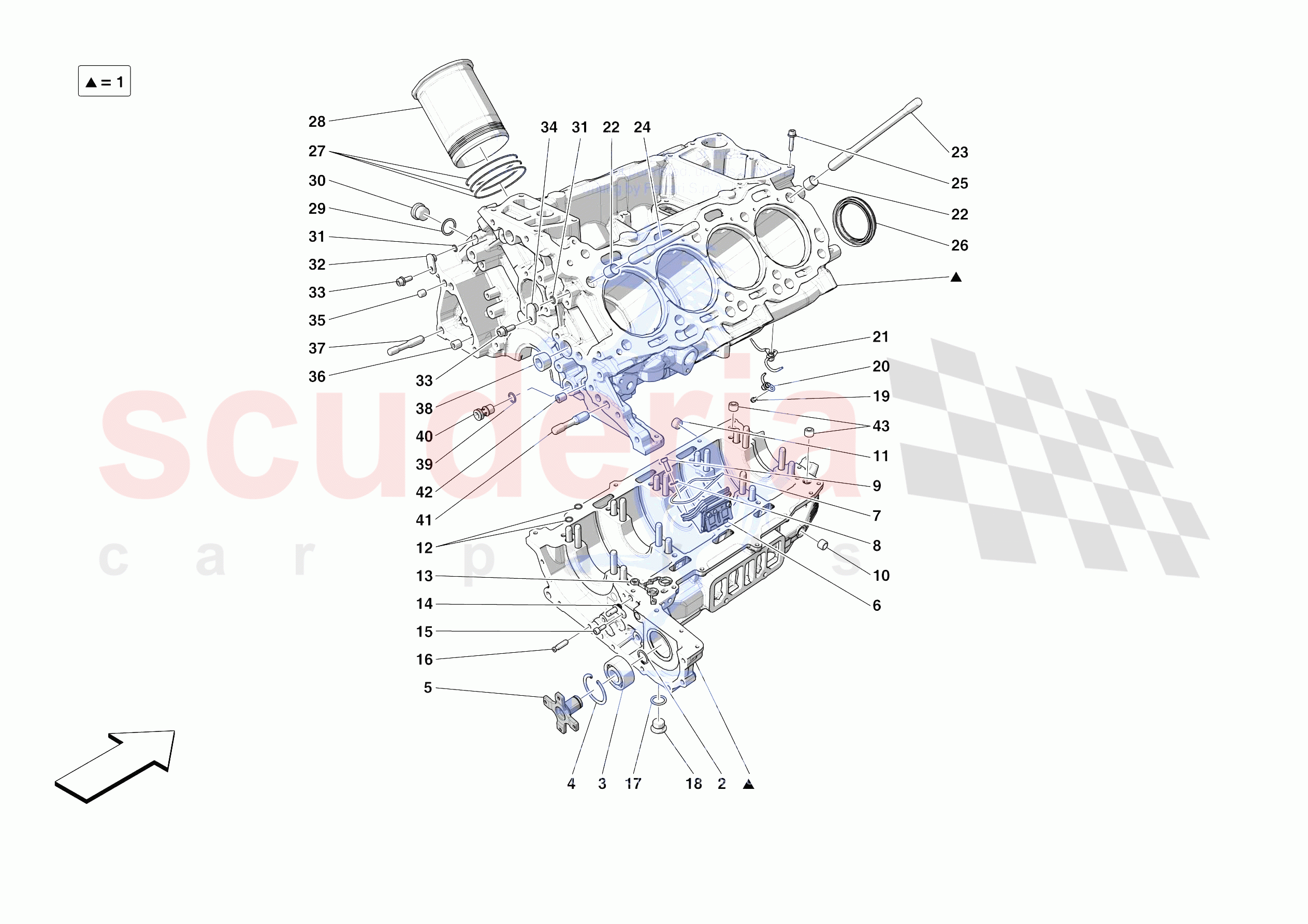

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	925899	CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY	$4,878.92	To Order

Photo	Part No	Description	Price (each)	Stock
	11066876	SEEGER RING	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	247049	BEARING	$46.52	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11060276	SEEGER RING	$0.41	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	304697	DRIVE JOINT	$164.40	To Order

Photo	Part No	Description	Price (each)	Stock
	881112	COMPL. VALVE HOLDER	$189.69	To Order

Photo	Part No	Description	Price (each)	Stock
	103994	GASKET	$5.55	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13027024	SCREW M6 X 16MM	$0.20	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	164400	THREADED PLUG	$3.29	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	127635	THREADED PLUG	$2.87	To Order

Photo	Part No	Description	Price (each)	Stock
	134705	GASKET	$0.34	To Order

Photo	Part No	Description	Price (each)	Stock
	925945	GASKET	$9.07	To Order

Photo	Part No	Description	Price (each)	Stock
	339523	CHAIN COOLING NOZZLE ASSEMBLY	$63.22	To Order

Photo	Part No	Description	Price (each)	Stock
	282393	SCREW	$0.67	To Order

Photo	Part No	Description	Price (each)	Stock
	766469	PIN	$5.73	To Order

Photo	Part No	Description	Price (each)	Stock
	10259960	Copper Washer 18 - 24 x 1.5	$0.31	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	306145	Thread Cap M18 x 1.5	$8.54	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	315493	SCREW	$1.01	To Order

Photo	Part No	Description	Price (each)	Stock
	298859	PISTON COOLING NOZZLE ASSEMBLY	$26.54	To Order

Photo	Part No	Description	Price (each)	Stock
	298858	PISTON COOLING NOZZLE ASSEMBLY	$37.93	To Order

Photo	Part No	Description	Price (each)	Stock
	185360	CENTERING DOWEL	$2.79	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	897847	STUD BOLT	$19.39	To Order

Photo	Part No	Description	Price (each)	Stock
	897848	STUD BOLT	$16.87	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	$0.31	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	271598	GASKET CRANKCASE	$35.26	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	338795	GASKET	$4.51	To Order

Photo	Part No	Description	Price (each)	Stock
	334275	CYLINDER SLEEVE	$257.06	To Order

Photo	Part No	Description	Price (each)	Stock
	10263460	COPPER GASKET D.28-22.3 X 1.5	$0.35	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	307477	THREADED PLUG	$3.31	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	291544	O-RING	$0.35	To Order

Photo	Part No	Description	Price (each)	Stock
	753181	PLUG	$6.67	To Order

Photo	Part No	Description	Price (each)	Stock
	282393	SCREW	$0.67	To Order

Photo	Part No	Description	Price (each)	Stock
	781384	PLUG	$6.67	To Order

Photo	Part No	Description	Price (each)	Stock
	311001	CENTERING DOWEL	$2.70	To Order

Photo	Part No	Description	Price (each)	Stock
	291078	THREADED PLUG	$2.27	To Order

Photo	Part No	Description	Price (each)	Stock
	278120	STUD BOLT	$22.74	To Order

Photo	Part No	Description	Price (each)	Stock
	282753	THREADED PLUG	$5.73	To Order

Photo	Part No	Description	Price (each)	Stock
	137192	O-RING	$0.34	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	901018	PLUG	$24.01	To Order

Photo	Part No	Description	Price (each)	Stock
	342332	STUD BOLT	$14.34	To Order

Photo	Part No	Description	Price (each)	Stock
	282755	THREADED PLUG	$1.86	To Order

Photo	Part No	Description	Price (each)	Stock
	939188	BUSH	$4.47	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
0001	925899	CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY	925899 CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY	$4,878.92	1
0002	11066876	SEEGER RING	11066876 SEEGER RING	$0.06 MSRP: ~~0.35~~ (82.9% off)	1
0003	247049	BEARING IN STOCK	247049 BEARING IN STOCK	$46.52	1
0004	11060276	SEEGER RING IN STOCK	11060276 SEEGER RING IN STOCK	$0.41 MSRP: ~~1.75~~ (76.6% off)	1
0005	304697	DRIVE JOINT	304697 DRIVE JOINT	$164.40	1
0006	881112	COMPL. VALVE HOLDER	881112 COMPL. VALVE HOLDER	$189.69	4
0007	103994	GASKET	103994 GASKET Also included in engine gasket set	$5.55	4
0008	11197774	WASHER IN STOCK	11197774 WASHER IN STOCK	$0.06 MSRP: ~~0.30~~ (80% off)	8
0009	13027024	SCREW M6 X 16MM IN STOCK	13027024 SCREW M6 X 16MM M6 X 14 IN STOCK	$0.20 MSRP: ~~1.00~~ (80% off)	8
0010	164400	THREADED PLUG IN STOCK	164400 THREADED PLUG IN STOCK	$3.29	1
0011	127635	THREADED PLUG	127635 THREADED PLUG M18 X 11 X 1.5	$2.87 MSRP: ~~4.17~~ (31.2% off)	1
0012	134705	GASKET	134705 GASKET Also included in engine gasket set	$0.34 MSRP: ~~0.82~~ (58.5% off)	20
0013	925945	GASKET	925945 GASKET Also included in engine gasket set	$9.07	1
0014	339523	CHAIN COOLING NOZZLE ASSEMBLY	339523 CHAIN COOLING NOZZLE ASSEMBLY	$63.22	1
0015	282393	SCREW	282393 SCREW M6 X 16	$0.67	2
0016	766469	PIN	766469 PIN	$5.73	1
0017	10259960	Copper Washer 18 - 24 x 1.5 IN STOCK	10259960 Copper Washer 18 - 24 x 1.5 Also included in engine gasket set IN STOCK	$0.31 MSRP: ~~1.25~~ (75.2% off)	3
0018	306145	Thread Cap M18 x 1.5 IN STOCK	306145 Thread Cap M18 x 1.5 IN STOCK	$8.54	3
0019	315493	SCREW	315493 SCREW M4 X 10	$1.01	12
0020	298859	PISTON COOLING NOZZLE ASSEMBLY	298859 PISTON COOLING NOZZLE ASSEMBLY	$26.54	8
0021	298858	PISTON COOLING NOZZLE ASSEMBLY	298858 PISTON COOLING NOZZLE ASSEMBLY	$37.93	4
0022	185360	CENTERING DOWEL IN STOCK	185360 CENTERING DOWEL IN STOCK	$2.79	4
0023	897847	STUD BOLT	897847 STUD BOLT	$19.39	18
0024	897848	STUD BOLT	897848 STUD BOLT	$16.87	2
0025	231620	SCREW IN STOCK	231620 SCREW M6 X 25 IN STOCK	$0.31 MSRP: ~~0.35~~ (11.4% off)	17
0026	271598	GASKET CRANKCASE IN STOCK	271598 GASKET CRANKCASE Also included in engine gasket set IN STOCK	$35.26	1
0027	338795	GASKET	338795 GASKET Also included in engine gasket set	$4.51	24
0028	334275	CYLINDER SLEEVE	334275 CYLINDER SLEEVE	$257.06	8
0029	10263460	COPPER GASKET D.28-22.3 X 1.5 IN STOCK	10263460 COPPER GASKET D.28-22.3 X 1.5 Also included in engine gasket set IN STOCK	$0.35 MSRP: ~~1.00~~ (65% off)	1
0030	307477	THREADED PLUG IN STOCK	307477 THREADED PLUG IN STOCK	$3.31	1
0031	291544	O-RING	291544 O-RING Also included in engine gasket set	$0.35	2
0032	753181	PLUG	753181 PLUG	$6.67	1
0033	282393	SCREW	282393 SCREW M6 X 16	$0.67	2
0034	781384	PLUG	781384 PLUG	$6.67	1
0035	311001	CENTERING DOWEL	311001 CENTERING DOWEL	$2.70	2
0036	291078	THREADED PLUG	291078 THREADED PLUG M12 X 11	$2.27	1
0037	278120	STUD BOLT	278120 STUD BOLT	$22.74	7
0038	282753	THREADED PLUG	282753 THREADED PLUG	$5.73	2
0039	137192	O-RING IN STOCK	137192 O-RING Also included in engine gasket set IN STOCK	$0.34 MSRP: ~~0.50~~ (32% off)	1
0040	901018	PLUG	901018 PLUG	$24.01	1
0041	342332	STUD BOLT	342332 STUD BOLT	$14.34	1
0042	282755	THREADED PLUG	282755 THREADED PLUG D. 10 X 1.25	$1.86	3
0043	939188	BUSH	939188 BUSH	$4.47	2

Crankcase

Ferrari SF90 Spider USA

Ferrari SF90 Spider USA - CRANKCASE
