Electric Axle

Ferrari SF90 Spider Europe RH

Find Your Part

Ferrari SF90 Spider Europe RH - ELECTRIC AXLE

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
826701 COMPL. ELECTRIC FRONT AXLE $20,222.58 To Order
749793 COMPL. ELECTRIC FRONT AXLE $21,234.01 To Order
788764 COMPL. ELECTRIC FRONT AXLE $23,295.46 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
855216 COMPL. RH AXLE CARRIER $618.29 To Order
809587 COMPL. RH AXLE CARRIER $618.29 To Order
Photo Part No Description Price (each) Stock
855214 COMPL. LH AXLE CARRIER $618.29 To Order
809588 COMPL. LH AXLE CARRIER $618.29 To Order
Photo Part No Description Price (each) Stock
895886 LH SPEED SENSOR CABLE BRACKET $14.15 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.58 IN STOCK
Photo Part No Description Price (each) Stock
896301 CLIP $3.12 To Order
Photo Part No Description Price (each) Stock
13579224 WASHER $0.32 To Order
Photo Part No Description Price (each) Stock
896514 CLIP $0.37 To Order
Photo Part No Description Price (each) Stock
14307834 SCREW $5.72 To Order
Photo Part No Description Price (each) Stock
14308134 SCREW $2.43 To Order
Photo Part No Description Price (each) Stock
12648324 WASHER $1.10 To Order
Photo Part No Description Price (each) Stock
818998 COMPL. UPPER BUSHING MOUNT $391.16 To Order
Photo Part No Description Price (each) Stock
15541734 SCREW $3.45 To Order
16241234 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
12648524 WASHER $0.49 To Order
Photo Part No Description Price (each) Stock
14307634 SCREW $1.00 To Order
Photo Part No Description Price (each) Stock
14496624 WASHER D.10.5-21 X 2 $0.06 IN STOCK
Photo Part No Description Price (each) Stock
14331324 SCREW $1.86 To Order
Photo Part No Description Price (each) Stock
13550524 WASHER $0.21 To Order
Photo Part No Description Price (each) Stock
850748 STUD BOLT $31.53 To Order
Photo Part No Description Price (each) Stock
746960 MAGNETIC PLUG $63.08 To Order
Photo Part No Description Price (each) Stock
746961 THREADED PLUG $49.20 To Order
Photo Part No Description Price (each) Stock
857399 DAMPER $118.60 To Order
Photo Part No Description Price (each) Stock
14306731 SCREW $0.84 To Order
Photo Part No Description Price (each) Stock
12647021 WASHER $0.30 IN STOCK
View All

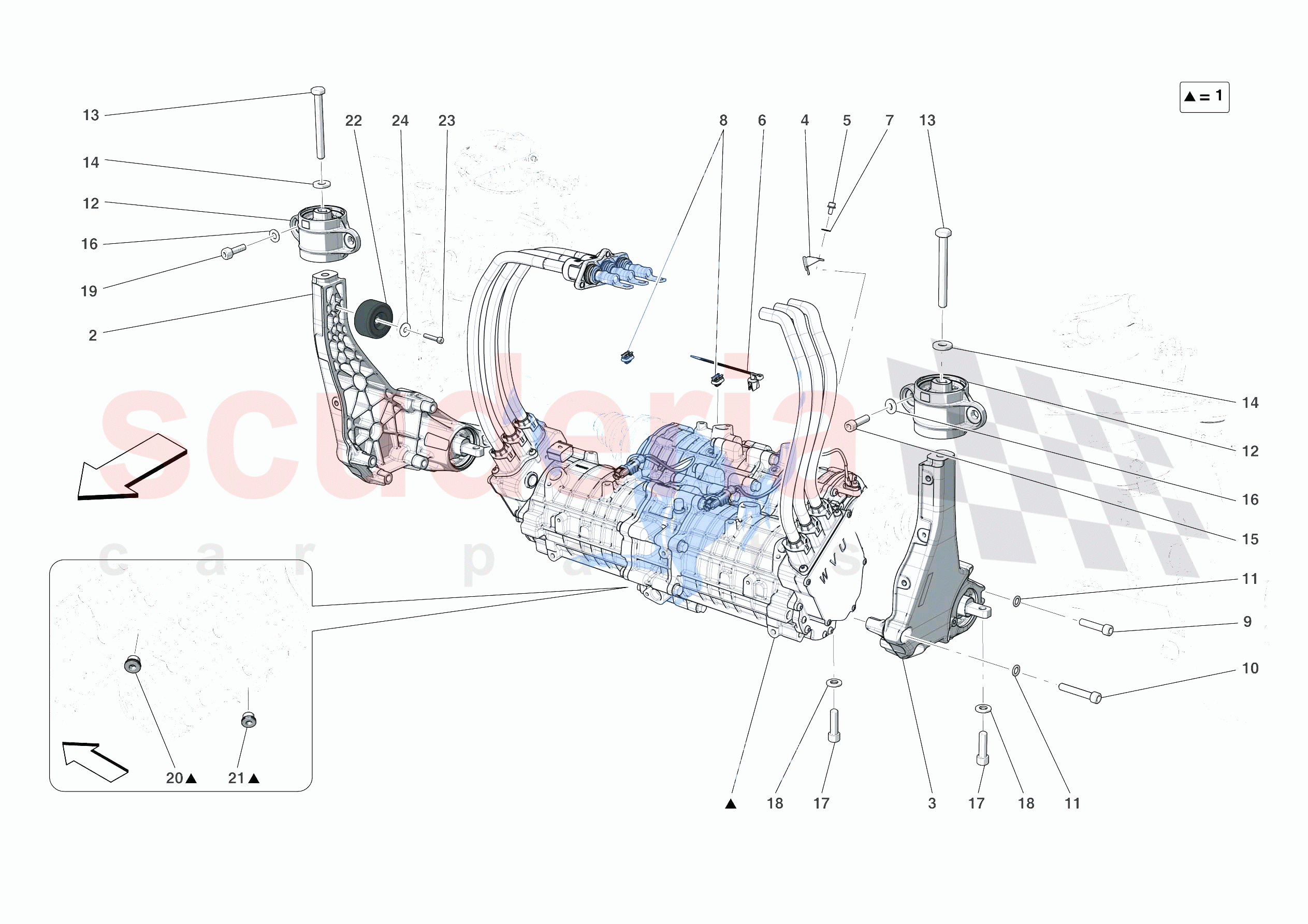

ELECTRIC AXLE of Ferrari Ferrari SF90 Spider Europe RH Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
0001 826701
COMPL. ELECTRIC FRONT AXLE
For vehicles up to Ass.ly No 188459, in case of replacement of complete electric axle, also order breather kit 896337 tab.193 pos.32; No longer supplied - Replaced by 889781 		$20,222.58 1
0001 749793
COMPL. ELECTRIC FRONT AXLE
For vehicles up to Ass.ly No. 190139 also order wiring harnesses 873331 tab. 182 pos. 14 and 873332 tab. 182 pos. 13, and update inverter SW; Applies until depletion 		$21,234.01 1
0001 788764
COMPL. ELECTRIC FRONT AXLE
For vehicles up to Ass.ly No. 190139 also order wiring harnesses 873331 tab. 182 Pos. 14 and 873332 tab. 182 Pos. 13 and update inverter SW; Applies until depletion - Applicable after depletion of 749793 		$23,295.46 1
0001 810982
COMPL. ELECTRIC FRONT AXLE
For vehicles up to Ass.ly No. 190139 also order wiring harnesses 873331 tab. 182 Pos. 14 and 873332 tab. 182 Pos. 13 and update inverter SW; Applicable after depletion of 788764 		$24,089.20 1
0002 855216
COMPL. RH AXLE CARRIER
Applies until depletion 		$618.29 1
0002 809587
COMPL. RH AXLE CARRIER
Applicable after depletion of 855216 		$618.29 1
0003 855214
COMPL. LH AXLE CARRIER
Applies until depletion 		$618.29 1
0003 809588
COMPL. LH AXLE CARRIER
Applicable after depletion of 855214 		$618.29 1
0004 895886
LH SPEED SENSOR CABLE BRACKET 		$14.15 1
0005 248334
SCREW
M6 X 12
IN STOCK 		$0.58 1
0006 896301
CLIP 		$3.12 2
0007 13579224
WASHER 		$0.32 1
0008 896514
CLIP 		$0.37 2
0009 14307834
SCREW
M10 X 1.25 X 45 		$5.72 2
0010 14308134
SCREW 		$2.43 8
0011 12648324
WASHER 		$1.10 10
0012 818998
COMPL. UPPER BUSHING MOUNT 		$391.16 2
0013 15541734
SCREW
Applies until depletion 		$3.45 2
0013 16241234
SCREW
Applicable after depletion of 15541734 		- 2 Enquire
0014 12648524
WASHER 		$0.49 2
0015 14307634
SCREW 		$1.00 3
0016 14496624
WASHER D.10.5-21 X 2
D. 10.5-21 X 2
IN STOCK 		$0.06 4
0017 14331324
SCREW 		$1.86 4
0018 13550524
WASHER 		$0.21 8
0019 850748
STUD BOLT 		$31.53 1
0020 746960
MAGNETIC PLUG 		$63.08 1
0021 746961
THREADED PLUG 		$49.20 1
0022 857399
DAMPER 		$118.60 2
0023 14306731
SCREW
M8 X 1.25 X 40 		$0.84 2
0024 12647021
WASHER
IN STOCK 		$0.30 2
