Name: PEDAL BOARD
Rating: 4.4 (1 reviews)

View All

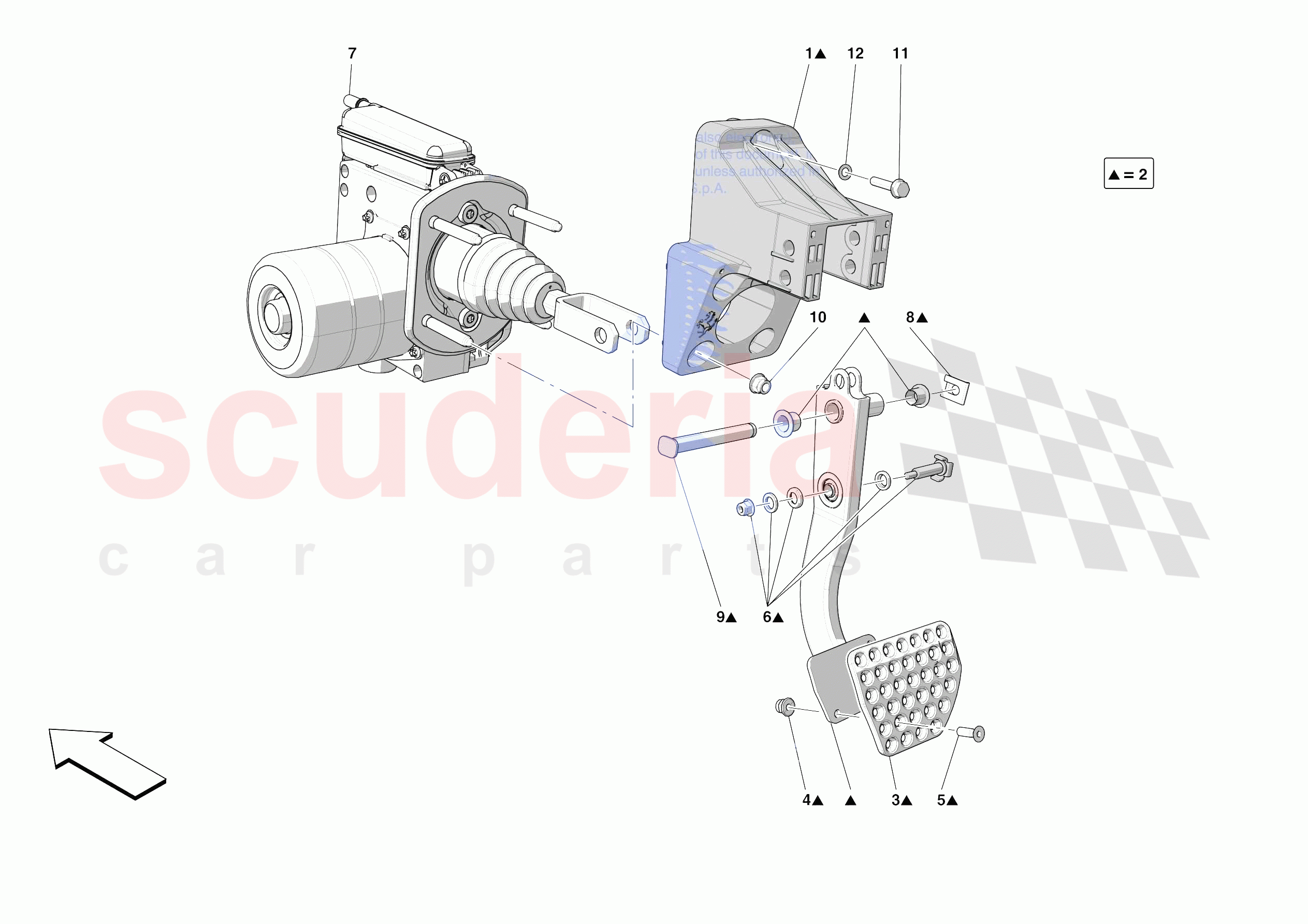

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	240987	DRILLED PLATE	$166.72	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.30	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	933730	SCREW	$7.55	To Order

Photo	Part No	Description	Price (each)	Stock
	896903	IPB-PEDAL BOARD FASTENER PIN KIT	$111.94	To Order

Photo	Part No	Description	Price (each)	Stock
	820206	IPB UNIT	$3,079.36	To Order

Photo	Part No	Description	Price (each)	Stock
	842845	CLIP	$3.35	To Order

Photo	Part No	Description	Price (each)	Stock
	831281	BRAKE PEDAL PIVOT PIN	$76.71	To Order

Photo	Part No	Description	Price (each)	Stock
	12578211	NUT	$0.29	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	16287524	SCREW	$1.17	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER D.8.40-15 X 0.8	$0.02	IN STOCK

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
0001	773369	PEDAL BOARD MOUNT	773369 PEDAL BOARD MOUNT	$226.41	1
0001	773372	PEDAL BOARD MOUNT	773372 PEDAL BOARD MOUNT	$213.84	1
0002	773367	COMPL. PEDAL BOARD	773367 COMPL. PEDAL BOARD	$654.10	1
0002	773370	COMPL. PEDAL BOARD	773370 COMPL. PEDAL BOARD	$679.26	1
0003	240987	DRILLED PLATE IN STOCK	240987 DRILLED PLATE IN STOCK	$166.72	1
0004	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 IN STOCK	$1.30	2
0005	933730	SCREW	933730 SCREW M6 X 20	$7.55	2
0006	896903	IPB-PEDAL BOARD FASTENER PIN KIT	896903 IPB-PEDAL BOARD FASTENER PIN KIT	$111.94	1
0007	820206	IPB UNIT	820206 IPB UNIT	$3,079.36	1
0008	842845	CLIP	842845 CLIP	$3.35	1
0009	831281	BRAKE PEDAL PIVOT PIN	831281 BRAKE PEDAL PIVOT PIN	$76.71	1
0010	12578211	NUT ARRIVING SOON	12578211 NUT ARRIVING SOON	$0.29 MSRP: ~~1.25~~ (76.8% off)	4
0011	16287524	SCREW IN STOCK	16287524 SCREW M8 X 40 IN STOCK	$1.17	1
0012	12601374	WASHER D.8.40-15 X 0.8 IN STOCK	12601374 WASHER D.8.40-15 X 0.8 IN STOCK	$0.02 MSRP: ~~0.25~~ (92% off)	1

Pedal Board

Ferrari SF90 Spider Europe
