Gearbox And Fasteners

Ferrari SF90 Spider Europe

Find Your Part

Ferrari SF90 Spider Europe - GEARBOX AND FASTENERS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
781648 COMPL. DCT GEARBOX $44,981.87 To Order
847147 COMPL. DCT GEARBOX $45,467.57 To Order
990446 COMPL. DCT GEARBOX $46,302.32 To Order
Photo Part No Description Price (each) Stock
769008 RETENTION BRACKET $177.03 To Order
Photo Part No Description Price (each) Stock
750165 SCREW $2.20 To Order
Photo Part No Description Price (each) Stock
912129 GEARBOX MOUNT $518.49 To Order
Photo Part No Description Price (each) Stock
763347 SCREW $4.38 To Order
Photo Part No Description Price (each) Stock
259441 BUSHING COVER COLLAR $164.39 To Order
Photo Part No Description Price (each) Stock
292738 SCREW $7.34 To Order
Photo Part No Description Price (each) Stock
102032 CENTERING DOWEL $3.37 To Order
Photo Part No Description Price (each) Stock
921971 SCREW $13.48 To Order
Photo Part No Description Price (each) Stock
12644924 WASHER $1.60 To Order
Photo Part No Description Price (each) Stock
938921 RH GEARBOX BUSHING SHIM $73.04 To Order
Photo Part No Description Price (each) Stock
938909 LH GEARBOX BUSHING SHIM $74.39 To Order
938915 LH GEARBOX BUSHING SHIM $74.39 To Order
938916 LH GEARBOX BUSHING SHIM $74.39 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
851485 SELF-LOCKING NUT $1.69 To Order
851485 SELF-LOCKING NUT $1.69 To Order
Photo Part No Description Price (each) Stock
14059421 NUT $0.49 IN STOCK
Photo Part No Description Price (each) Stock
913205 OIL PLUG COMPL. WITH WASHER $67.01 To Order
Photo Part No Description Price (each) Stock
231619 SCREW $0.29 IN STOCK
Photo Part No Description Price (each) Stock
247723 VIBRATION DAMPER $261.34 IN STOCK
Photo Part No Description Price (each) Stock
13578324 WASHER $0.21 IN STOCK
View All

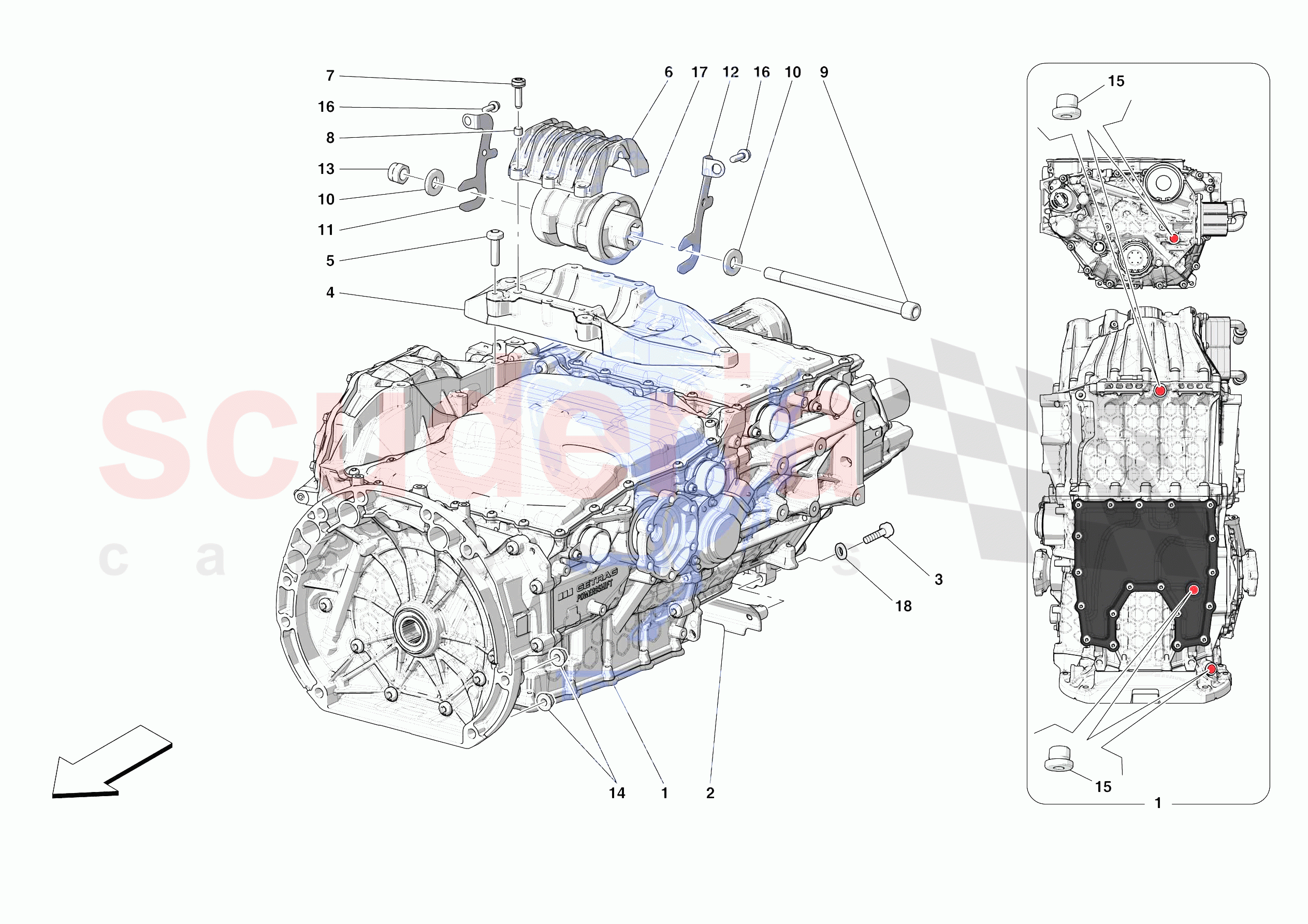

GEARBOX AND FASTENERS of Ferrari Ferrari SF90 Spider Europe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
0001 781648
COMPL. DCT GEARBOX
Request ASM authorisation; Applies until depletion 		$44,981.87 1
0001 847147
COMPL. DCT GEARBOX
Applies until depletion - Applicable after depletion of 781648; Request ASM authorisation 		$45,467.57 1
0001 990446
COMPL. DCT GEARBOX
Request ASM authorisation 		$46,302.32 1
0002 769008
RETENTION BRACKET 		$177.03 1
0003 750165
SCREW
Replaced by screw 14306734 ref.3 and washer 10519624 ref. 18; No longer supplied; M8 X 1.25 X 40 		$2.20 2
0004 912129
GEARBOX MOUNT 		$518.49 1
0005 763347
SCREW
M10 X 1.25 X 35 		$4.38 4
0006 259441
BUSHING COVER COLLAR 		$164.39 1
0007 292738
SCREW
M8 X 30 		$7.34 6
0008 102032
CENTERING DOWEL 		$3.37 (68.7% off) 2
0009 921971
SCREW
M14 X 1.5 X 210 		$13.48 1
0010 12644924
WASHER 		$1.60 2
0011 938921
RH GEARBOX BUSHING SHIM
Th. 0.49 mm 		$73.04 1
0012 938909
LH GEARBOX BUSHING SHIM
Installed if necessary; Th. 0.49 mm 		$74.39 1
0012 938915
LH GEARBOX BUSHING SHIM
Installed if necessary; Th. 0.69 mm 		$74.39 1
0012 938916
LH GEARBOX BUSHING SHIM
Installed if necessary; Th. 0.89 mm 		$74.39 1
0012 938917
LH GEARBOX BUSHING SHIM
Installed if necessary; Th. 1.09 mm 		$74.39 1
0012 938918
LH GEARBOX BUSHING SHIM
Installed if necessary; Th. 1.29 mm 		$75.75 1
0012 938919
LH GEARBOX BUSHING SHIM
Installed if necessary; Th. 1.59 mm 		$82.51 1
0013 851485
SELF-LOCKING NUT 		$1.69 1
0013 851485
SELF-LOCKING NUT 		$1.69 1
0014 14059421
NUT
IN STOCK 		$0.49 9
0015 913205
OIL PLUG COMPL. WITH WASHER 		$67.01 4
0016 231619
SCREW
M6 X 22
IN STOCK 		$0.29 2
0017 247723
VIBRATION DAMPER
IN STOCK 		$261.34 1
0018 13578324
WASHER
IN STOCK 		$0.21 2
