Ferrari Roma USA - FORCED INDUCTION SYSTEM PIPES

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
297862 OIL DELIVERY PIPE TO RH TURBO $290.65 To Order
787611 OIL DELIVERY PIPE TO RH TURBO $328.57 To Order
Photo Part No Description Price (each) Stock
306837 OIL DELIVERY PIPE TO LH TURBO $290.65 To Order
787612 OIL DELIVERY PIPE TO LH TURBO $328.57 To Order
Photo Part No Description Price (each) Stock
231619 SCREW $0.29 IN STOCK
Photo Part No Description Price (each) Stock
297185 HOSE CONNECTOR $6.49 To Order
Photo Part No Description Price (each) Stock
10261060 GASKET COPPER 12 - 16 X 1.5 $0.14 IN STOCK
Photo Part No Description Price (each) Stock
307668 WATER DELIVERY PIPE TO RH TURBO $189.54 To Order
787609 WATER DELIVERY PIPE TO RH TURBO $227.46 To Order
Photo Part No Description Price (each) Stock
307669 WATER DELIVERY PIPE TO LH TURBO $202.18 To Order
787610 WATER DELIVERY PIPE TO LH TURBO $227.46 To Order
Photo Part No Description Price (each) Stock
248471 SCREW $0.93 To Order
Photo Part No Description Price (each) Stock
297184 HOSE CONNECTOR $8.09 To Order
Photo Part No Description Price (each) Stock
10280060 WASHER COPPER D14. 20 X 1.5 $0.20 IN STOCK
Photo Part No Description Price (each) Stock
297864 OIL RETURN PIPE FROM RH TURBO $189.54 To Order
787613 OIL RETURN PIPE FROM RH TURBO $202.18 To Order
Photo Part No Description Price (each) Stock
306347 OIL RETURN PIPE FROM LH TURBO $164.28 To Order
787614 OIL RETURN PIPE FROM LH TURBO $176.91 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.58 IN STOCK
Photo Part No Description Price (each) Stock
303509 WATER RETURN PIPE FROM RH TURBO $265.36 To Order
Photo Part No Description Price (each) Stock
297747 WATER RETURN PIPE FROM LH TURBO $252.73 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.58 IN STOCK
Photo Part No Description Price (each) Stock
248334 SCREW $0.58 IN STOCK
Photo Part No Description Price (each) Stock
231620 SCREW $0.30 IN STOCK
Photo Part No Description Price (each) Stock
336488 STUD BOLT $11.75 To Order
Photo Part No Description Price (each) Stock
295801 GASKET $25.25 To Order
298091 GASKET $6.26 To Order
Photo Part No Description Price (each) Stock
271457 OIL DRAIN PIPE GASKET $25.25 To Order
Photo Part No Description Price (each) Stock
287722 O-RING $6.11 IN STOCK
287722 O-RING $6.11 IN STOCK
Photo Part No Description Price (each) Stock
287722 O-RING $6.11 IN STOCK
287722 O-RING $6.11 IN STOCK
Photo Part No Description Price (each) Stock
14456981 GASKET $0.93 IN STOCK
14456981 GASKET $0.93 IN STOCK
View All

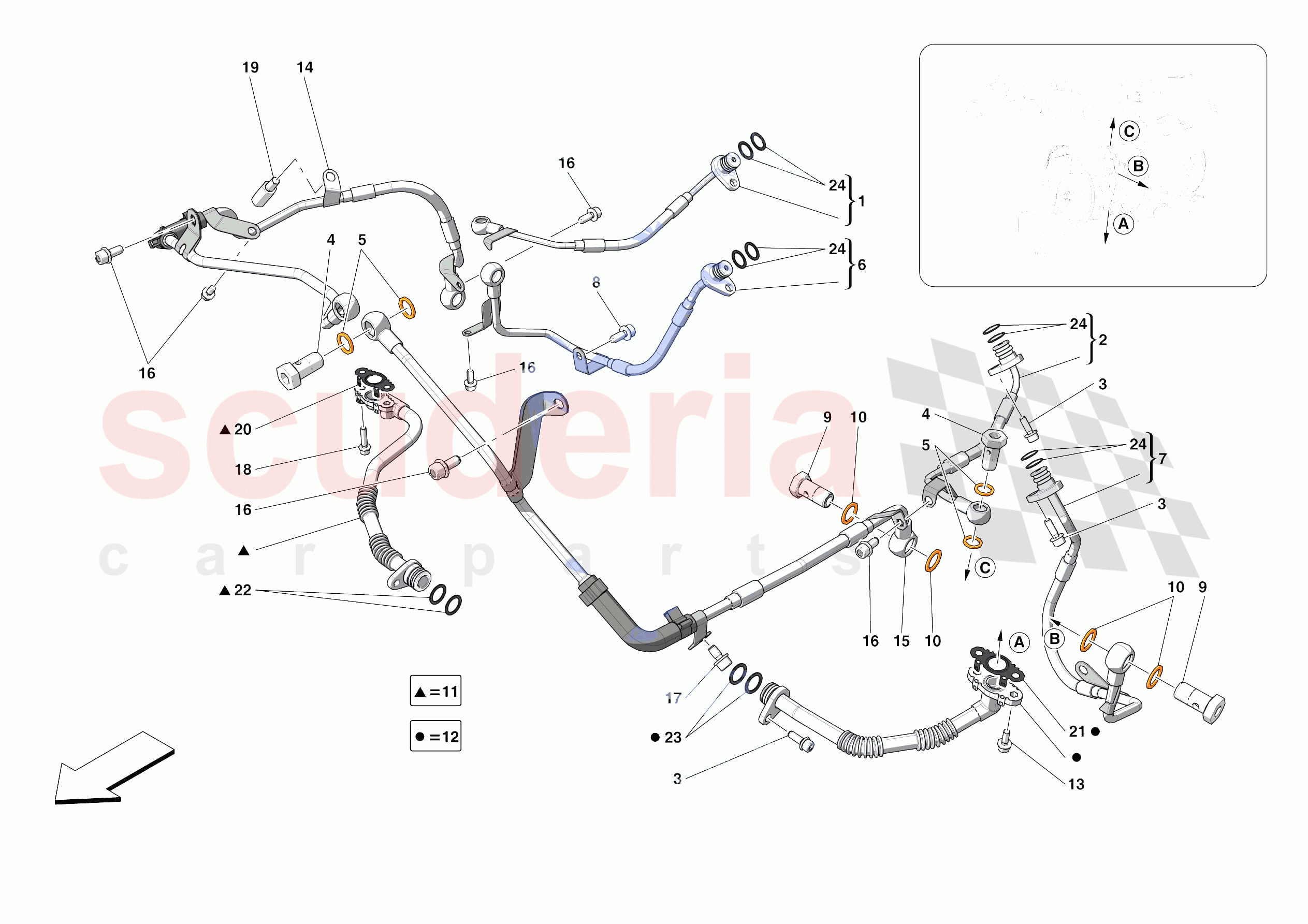

FORCED INDUCTION SYSTEM PIPES of Ferrari Ferrari Roma USA Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
0001 297862
OIL DELIVERY PIPE TO RH TURBO
Applicable up to engine No. 506909 		$290.65 1
0001 787611
OIL DELIVERY PIPE TO RH TURBO
Applicable from engine No. 506910 		$328.57 1
0002 306837
OIL DELIVERY PIPE TO LH TURBO
Applicable up to engine No. 506909 		$290.65 1
0002 787612
OIL DELIVERY PIPE TO LH TURBO
Applicable from engine No. 506910 		$328.57 1
0003 231619
SCREW
M6 X 18
IN STOCK 		$0.29 6
0004 297185
HOSE CONNECTOR 		$6.49 4
0005 10261060
GASKET COPPER 12 - 16 X 1.5
Also included in engine gasket set
IN STOCK 		$0.14 (71.4% off) 8
0006 307668
WATER DELIVERY PIPE TO RH TURBO
Applicable up to engine No. 506909 		$189.54 1
0006 787609
WATER DELIVERY PIPE TO RH TURBO
Applicable from engine No. 506910 		$227.46 1
0007 307669
WATER DELIVERY PIPE TO LH TURBO
Applicable up to engine No. 506909 		$202.18 1
0007 787610
WATER DELIVERY PIPE TO LH TURBO
Applicable from engine No. 506910 		$227.46 1
0008 248471
SCREW
M8 X 20 		$0.93 1
0009 297184
HOSE CONNECTOR 		$8.09 4
0010 10280060
WASHER COPPER D14. 20 X 1.5
Also included in engine gasket set
IN STOCK 		$0.20 (80% off) 8
0011 297864
OIL RETURN PIPE FROM RH TURBO
Applicable up to engine No. 506909 		$189.54 1
0011 787613
OIL RETURN PIPE FROM RH TURBO
Applicable from engine No. 506910 		$202.18 1
0012 306347
OIL RETURN PIPE FROM LH TURBO
Applicable up to engine No. 506909 		$164.28 1
0012 787614
OIL RETURN PIPE FROM LH TURBO
Applicable from engine No. 506910 		$176.91 1
0013 248334
SCREW
M6 X 16
IN STOCK 		$0.58 2
0014 303509
WATER RETURN PIPE FROM RH TURBO 		$265.36 1
0015 297747
WATER RETURN PIPE FROM LH TURBO 		$252.73 1
0016 248334
SCREW
M6 X 14
IN STOCK 		$0.58 6
0017 248334
SCREW
M6 X 12
IN STOCK 		$0.58 1
0018 231620
SCREW
M6 X 25
IN STOCK 		$0.30 (14.3% off) 2
0019 336488
STUD BOLT 		$11.75 1
0020 295801
GASKET
Also included in Short block gasket series; Applicable up to engine No. 506909 		$25.25 1
0020 298091
GASKET
Applicable from engine No. 506910 		$6.26 1
0021 271457
OIL DRAIN PIPE GASKET
Also included in Short block gasket series 		$25.25 1
0022 287722
O-RING
Also included in Short block gasket series; Applicable from engine No. 506910
IN STOCK 		$6.11 2
0022 287722
O-RING
IN STOCK 		$6.11 2
0023 287722
O-RING
IN STOCK 		$6.11 1
0023 287722
O-RING
IN STOCK 		$6.11 2
0024 14456981
GASKET
Also included in Short block gasket series; Applicable from engine No. 506910
IN STOCK 		$0.93 (25.6% off) 8
0024 14456981
GASKET
IN STOCK 		$0.93 (25.6% off) 8
