Name: TANK MOUNTS
Rating: 5.0 (1 reviews)

View All

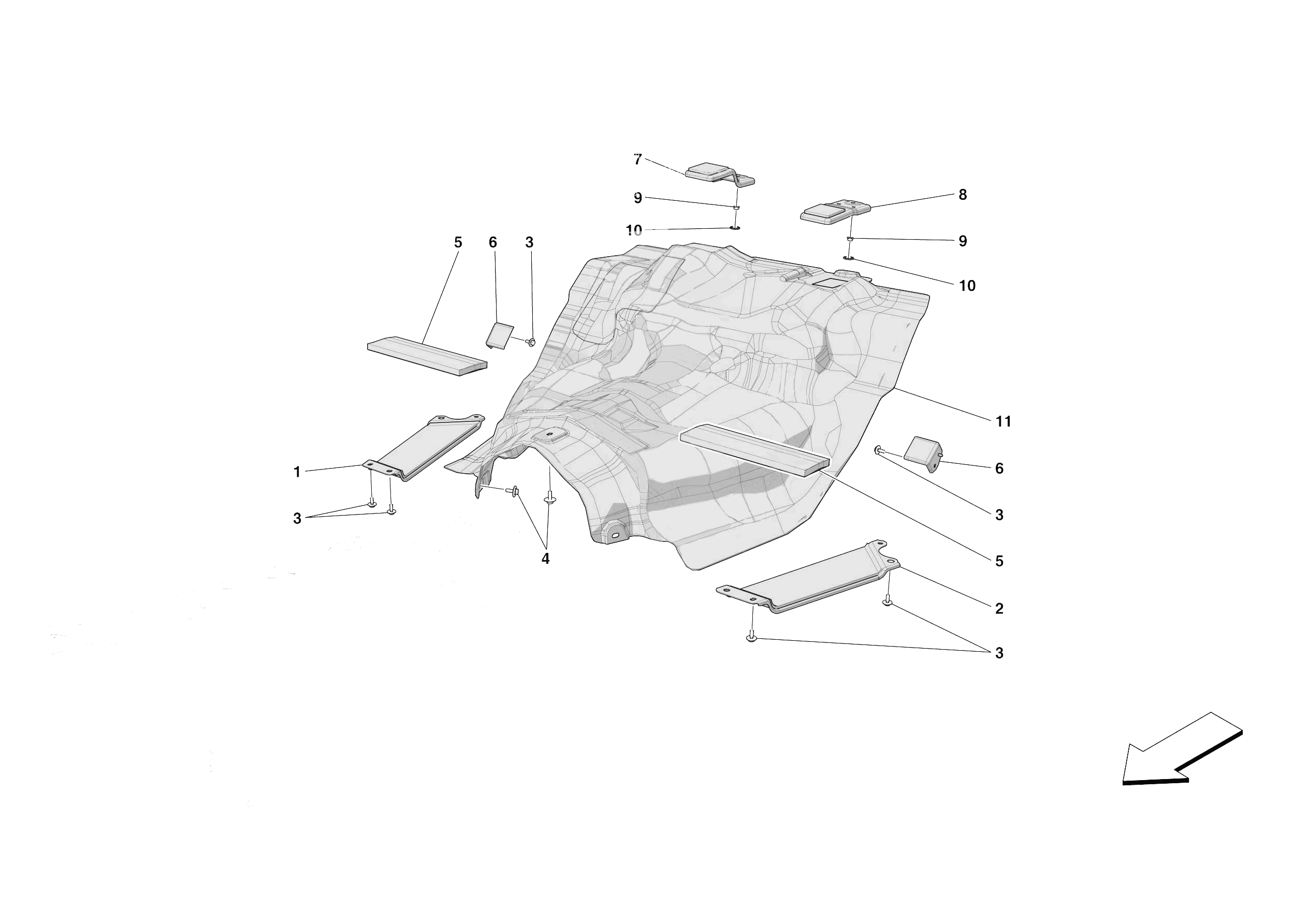

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	342231	RH LOWER RETAINER	$36.54	To Order

Photo	Part No	Description	Price (each)	Stock
	342229	LH LOWER RETAINER	$36.54	To Order

Photo	Part No	Description	Price (each)	Stock
	880041	Allen Head Bolt M6 X 26	$5.29	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	880041	Allen Head Bolt M6 X 26	$5.29	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	781443	BUSH	$11.32	To Order

Photo	Part No	Description	Price (each)	Stock
	794712	RANK INSULATION BRACKET	$21.42	To Order

Photo	Part No	Description	Price (each)	Stock
	753100	RH UPPER RETAINER	$22.66	To Order

Photo	Part No	Description	Price (each)	Stock
	753098	LH UPPER RETAINER	$23.92	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.31	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	250645	RING NUT	$0.64	To Order

Photo	Part No	Description	Price (each)	Stock
	956010	TANK HEAT INSULATION	$415.91	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
0001	342231	RH LOWER RETAINER	342231 RH LOWER RETAINER	$36.54	1
0002	342229	LH LOWER RETAINER	342229 LH LOWER RETAINER	$36.54	1
0003	880041	Allen Head Bolt M6 X 26 ARRIVING SOON	880041 Allen Head Bolt M6 X 26 M6 X 18 ARRIVING SOON	$5.29	14
0004	880041	Allen Head Bolt M6 X 26 ARRIVING SOON	880041 Allen Head Bolt M6 X 26 M6 X 20 ARRIVING SOON	$5.29	3
0005	781443	BUSH	781443 BUSH	$11.32	2
0006	794712	RANK INSULATION BRACKET	794712 RANK INSULATION BRACKET	$21.42	2
0007	753100	RH UPPER RETAINER	753100 RH UPPER RETAINER	$22.66	1
0008	753098	LH UPPER RETAINER	753098 LH UPPER RETAINER	$23.92	1
0009	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 M6 X 6 IN STOCK	$1.31	2
0010	250645	RING NUT	250645 RING NUT	$0.64	2
0011	956010	TANK HEAT INSULATION	956010 TANK HEAT INSULATION	$415.91	1

Tank Mounts

Ferrari Roma Spider Europe
