Name: DASHBOARD - DUCTS -NOT FOR RHD-
Rating: 4.1 (1 reviews)

View All

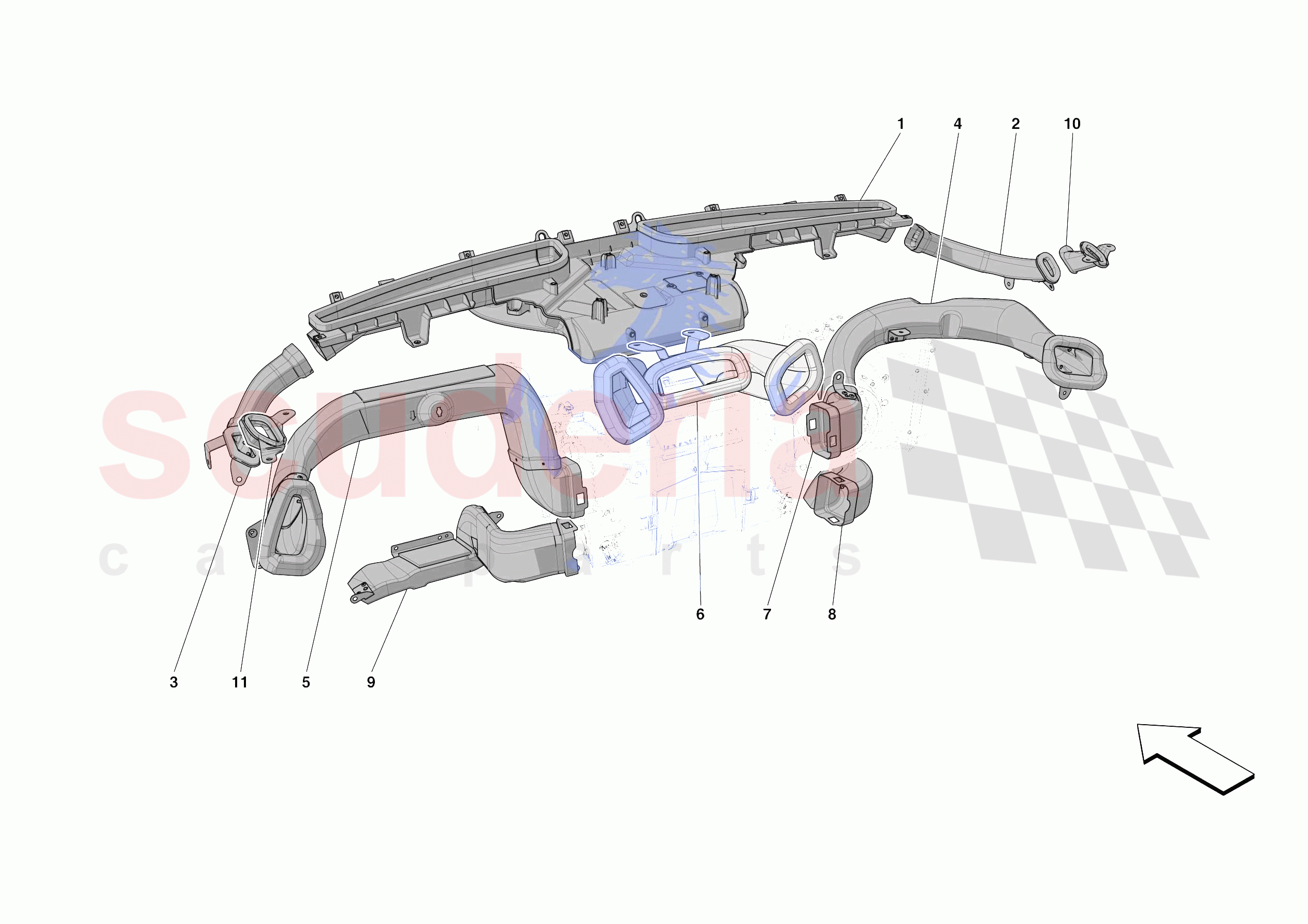

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	898315	DEFROSTER AIR DUCT	$265.64	To Order

Photo	Part No	Description	Price (each)	Stock
	898313	RH DEMISTER DUCT	$91.07	To Order

Photo	Part No	Description	Price (each)	Stock
	898311	LH DEMISTER DUCT	$91.07	To Order

Photo	Part No	Description	Price (each)	Stock
	898321	RH PASSENGER AIR DUCT	$151.79	To Order

Photo	Part No	Description	Price (each)	Stock
	898319	LH DRIVER AIR DUCT	$177.10	To Order

Photo	Part No	Description	Price (each)	Stock
	898317	CENTRE AIR DUCT	$164.45	To Order

Photo	Part No	Description	Price (each)	Stock
	88656200	PASSENGER VENTILATION CONNECTION TO HVAC	$74.62	To Order

Photo	Part No	Description	Price (each)	Stock
	89223200	PASSENGER SIDE FOOTWELL VENTILATION DUCT	$89.80	To Order

Photo	Part No	Description	Price (each)	Stock
	898309	DRIVER SIDE FOOTWELL DUCT	$164.45	To Order

Photo	Part No	Description	Price (each)	Stock
	898325	DEMISTER DUCT CONNECTOR TO RH COVER GRILLE	$22.75	To Order

Photo	Part No	Description	Price (each)	Stock
	898323	DEMISTER DUCT CONNECTOR TO LH COVER GRILLE	$22.75	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
0001	898315	DEFROSTER AIR DUCT	898315 DEFROSTER AIR DUCT	$265.64	1
0002	898313	RH DEMISTER DUCT	898313 RH DEMISTER DUCT	$91.07	1
0003	898311	LH DEMISTER DUCT	898311 LH DEMISTER DUCT	$91.07	1
0004	898321	RH PASSENGER AIR DUCT	898321 RH PASSENGER AIR DUCT	$151.79	1
0005	898319	LH DRIVER AIR DUCT	898319 LH DRIVER AIR DUCT	$177.10	1
0006	898317	CENTRE AIR DUCT	898317 CENTRE AIR DUCT	$164.45	1
0007	88656200	PASSENGER VENTILATION CONNECTION TO HVAC	88656200 PASSENGER VENTILATION CONNECTION TO HVAC	$74.62	1
0008	89223200	PASSENGER SIDE FOOTWELL VENTILATION DUCT	89223200 PASSENGER SIDE FOOTWELL VENTILATION DUCT	$89.80	1
0009	898309	DRIVER SIDE FOOTWELL DUCT	898309 DRIVER SIDE FOOTWELL DUCT	$164.45	1
0010	898325	DEMISTER DUCT CONNECTOR TO RH COVER GRILLE	898325 DEMISTER DUCT CONNECTOR TO RH COVER GRILLE Also included with COMPL. COVER BAG shown in tab. 151 ref.49	$22.75	1
0011	898323	DEMISTER DUCT CONNECTOR TO LH COVER GRILLE	898323 DEMISTER DUCT CONNECTOR TO LH COVER GRILLE Also included with COMPL. COVER BAG shown in tab. 151 ref.49	$22.75	1

Dashboard - Ducts -Not For Rhd-

Ferrari Roma Europe
