Low Voltage Wiring Harnesses

Ferrari SUV Purosangue USA

Find Your Part

Ferrari Purosangue USA - LOW VOLTAGE WIRING HARNESSES

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
846972 DASHBOARD CABLE Enquire To Order
845528 DASHBOARD CABLE $2,992.26 To Order
846983 DASHBOARD CABLE Enquire To Order
...and 9 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
845706 BODY CABLE Enquire To Order
846993 BODY CABLE Enquire To Order
978170 BODY CABLE $16,388.82 To Order
...and 16 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
847852 LH FRONT DOOR CABLE Enquire To Order
845611 LH FRONT DOOR CABLE $470.31 To Order
847853 LH FRONT DOOR CABLE $483.02 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
847873 REAR DOOR CABLE Enquire To Order
847923 REAR DOOR CABLE $381.32 To Order
Photo Part No Description Price (each) Stock
846075 TAILGATE CABLE $533.86 To Order
846329 TAILGATE CABLE $622.85 To Order
846076 TAILGATE CABLE $394.04 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
847955 FRONT BUMPER CABLE $190.65 To Order
847956 FRONT BUMPER CABLE $343.20 To Order
Photo Part No Description Price (each) Stock
847957 REAR BUMPER CABLE $457.60 To Order
956412 REAR BUMPER CABLE $355.90 To Order
Photo Part No Description Price (each) Stock
868909 VEHICLE LIFT CABLE $85.15 To Order
847959 VEHICLE LIFT CABLE $266.92 To Order
Photo Part No Description Price (each) Stock
847961 48V CABLE $927.92 To Order
Photo Part No Description Price (each) Stock
818028 48V BATTERY CABLE $123.28 To Order
Photo Part No Description Price (each) Stock
893383 FRONT TUNNEL CABLE Enquire To Order
847963 FRONT TUNNEL CABLE $483.02 To Order
847963 FRONT TUNNEL CABLE $483.02 To Order
Photo Part No Description Price (each) Stock
847965 REAR TUNNEL CABLE $86.43 To Order
Photo Part No Description Price (each) Stock
893094 ELECTROCHROMIC ROOF CABLE $177.94 To Order
Photo Part No Description Price (each) Stock
893088 HEADLINER CABLE $94.05 To Order
Photo Part No Description Price (each) Stock
868663 GLOVE COMPARTMENT CABLE $19.05 To Order
Photo Part No Description Price (each) Stock
873321 PASSENGER AIRBAG CABLE $45.74 To Order
Photo Part No Description Price (each) Stock
868664 NEGATIVE BATTERY CABLE $113.12 To Order
875446 NEGATIVE BATTERY CABLE $116.93 To Order
Photo Part No Description Price (each) Stock
868670 HEADLAMP CABLE $44.47 To Order
Photo Part No Description Price (each) Stock
941532 ENGINE-SUBFRAME GROUND CABLE $152.51 To Order
Photo Part No Description Price (each) Stock
963958 GEARBOX GROUND BRAID $44.47 To Order
Photo Part No Description Price (each) Stock
340259 GROUND BRAID $20.33 To Order
View All

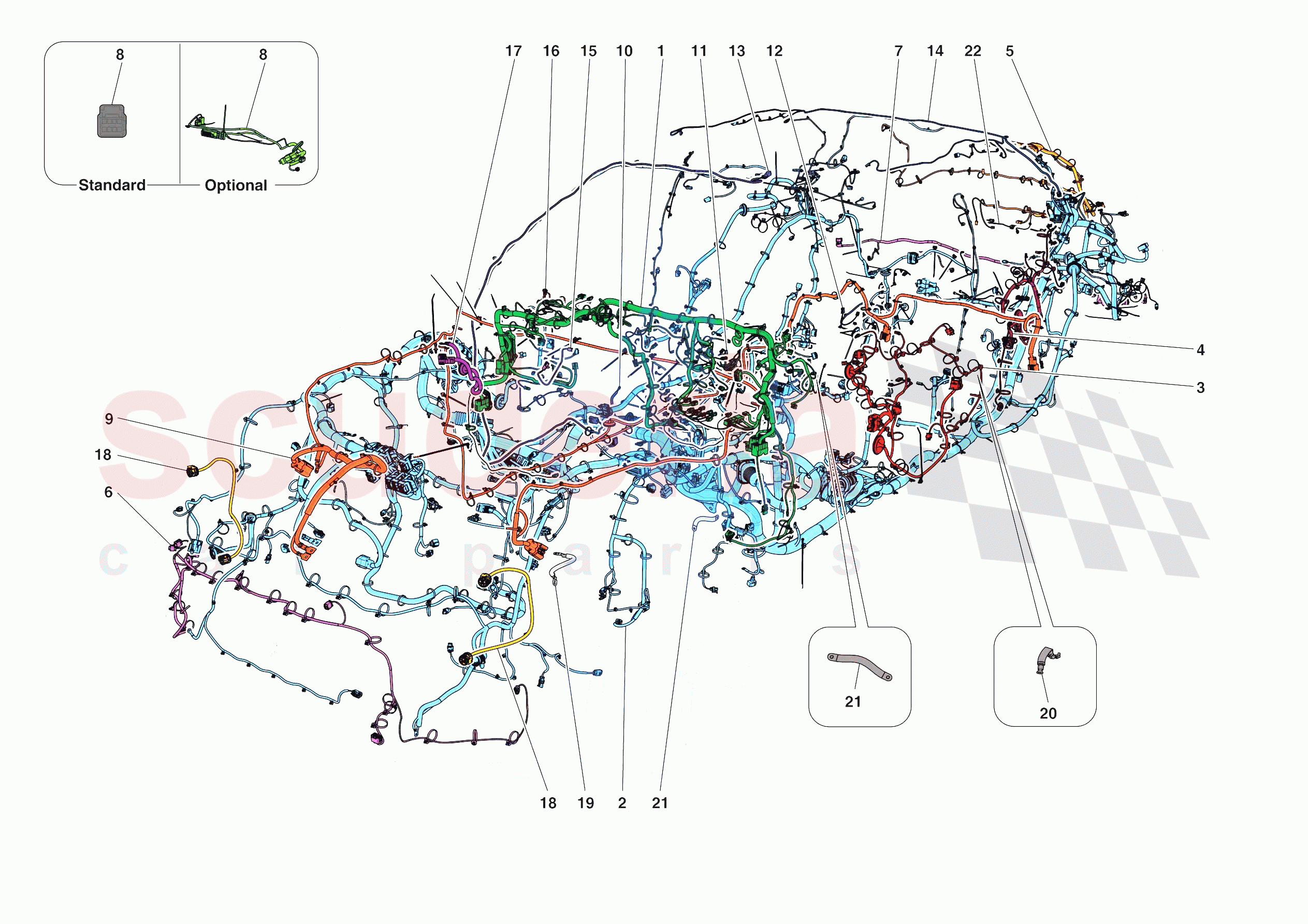

LOW VOLTAGE WIRING HARNESSES of Ferrari Ferrari Purosangue USA Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
0001 846972
DASHBOARD CABLE
Base 		- 1 Enquire
0001 845528
DASHBOARD CABLE
Base 		$2,992.26 1
0001 846983
DASHBOARD CABLE
Base 		- 1 Enquire
0001 846685
DASHBOARD CABLE
Base 		- 1 Enquire
0001 845700
DASHBOARD CABLE
Applicable for E-CALL system 		- 1 Enquire
0001 845517
DASHBOARD CABLE
Applicable for E-CALL system 		$2,992.26 1
0001 846973
DASHBOARD CABLE
Surround view version 		- 1 Enquire
0001 845529
DASHBOARD CABLE
Surround view version 		$2,951.57 1
0001 846984
DASHBOARD CABLE
Surround view version 		$2,471.09 1
0001 846686
DASHBOARD CABLE
Surround view version 		- 1 Enquire
0001 845701
DASHBOARD CABLE
Applicable for E-CALL system and surround view 		$2,628.71 1
0001 845520
DASHBOARD CABLE
Applicable for E-CALL system and surround view 		$3,113.01 1
0002 845706
BODY CABLE
Base; No longer supplied - Replaced by 846993 		- 1 Enquire
0002 846993
BODY CABLE
Base - For vehicles up to Ass.ly No. 215977 also order fan cowl 821769 ref. 2 tab. 64 and high node 978273 ref. 6 tab. 188 		- 1 Enquire
0002 978170
BODY CABLE
Base 		$16,388.82 1
0002 978187
BODY CABLE
Base 		$16,189.26 1
0002 845707
BODY CABLE
Version with lift, electrochromic panoramic roof and wireless charger; No longer supplied - Replaced by 846994 		- 1 Enquire
0002 846994
BODY CABLE
Version with lift, electrochromic panoramic roof and wireless charger - For vehicles up to Ass.ly No. 215977 also order fan cowl 821769 ref. 2 tab. 64 and high node 978273 ref. 6 tab. 188 		- 1 Enquire
0002 978171
BODY CABLE
Version with lift, electrochromic panoramic roof and wireless charger 		$16,471.44 1
0002 845708
BODY CABLE
Version with lift, electrochromic panoramic roof, wireless charger and High End audio system; No longer supplied - Replaced by 846995 		- 1 Enquire
0002 846995
BODY CABLE
Version with lift, electrochromic panoramic roof, wireless charger and High End audio system - For vehicles up to Ass.ly No. 215977 also order fan cowl 821769 ref. 2 tab. 64 and high node 978273 ref. 6 tab. 188 		- 1 Enquire
0002 978172
BODY CABLE
Version with lift, electrochromic panoramic roof, wireless charger and High End audio system 		$17,544.29 1
0002 978188
BODY CABLE
Version with lift, electrochromic panoramic roof, wireless charger and High End audio system 		$16,287.14 1
0002 845711
BODY CABLE
Version with lift, electrochromic panoramic roof, wireless charger and surround view; No longer supplied - Replaced by 846998 		- 1 Enquire
0002 846998
BODY CABLE
Version with lift, electrochromic panoramic roof, wireless charger and surround view - For vehicles up to Ass.ly No. 215977 also order fan cowl 821769 ref. 2 tab. 64 and high node 978273 ref. 6 tab. 188 		- 1 Enquire
0002 978174
BODY CABLE
Version with lift, electrochromic panoramic roof, wireless charger and surround view 		$16,870.59 1
0002 978189
BODY CABLE
Version with lift, electrochromic panoramic roof, wireless charger and surround view 		$16,550.27 1
0002 845801
BODY CABLE
Version with lift, electrochromic panoramic roof, wireless charger,ร‚ย High End audio system and surround view; No longer supplied - Replaced by 846999 		- 1 Enquire
0002 846999
BODY CABLE
Version with lift, electrochromic panoramic roof, wireless charger,ร‚ย High End audio system and surround view - For vehicles up to Ass.ly No. 215977 also order fan cowl 821769 ref. 2 tab. 64 and high node 978273 ref. 6 tab. 188 		$15,165.99 1
0002 978178
BODY CABLE
Version with lift, electrochromic panoramic roof, wireless charger,ร‚ย High End audio system and surround view 		$17,544.29 1
0002 978191
BODY CABLE
Version with lift, electrochromic panoramic roof, wireless charger,ร‚ย High End audio system and surround view 		$16,695.18 1
0003 847852
LH FRONT DOOR CABLE
Base 		- 1 Enquire
0003 845611
LH FRONT DOOR CABLE
Base 		$470.31 1
0003 847853
LH FRONT DOOR CABLE
High End audio version 		$483.02 1
0003 845641
LH FRONT DOOR CABLE
High End audio version 		$495.72 1
0003 847818
RH FRONT DOOR CABLE
Base 		- 1 Enquire
0003 845581
RH FRONT DOOR CABLE
Base 		$432.17 1
0003 847819
RH FRONT DOOR CABLE
High End audio version 		$483.02 1
0003 845582
RH FRONT DOOR CABLE
High End audio version 		$470.31 1
0004 847873
REAR DOOR CABLE
Base 		- 2 Enquire
0004 847923
REAR DOOR CABLE
High End audio version 		$381.32 2
0005 846075
TAILGATE CABLE
Base 		$533.86 1
0005 846329
TAILGATE CABLE
High End audio version 		$622.85 1
0005 846076
TAILGATE CABLE
Surround view version 		$394.04 1
0005 846541
TAILGATE CABLE
Version with High End and surround view 		$635.56 1
0005 913253
TAILGATE CABLE
Version with Gentex digital mirror with camera 		- 1 Enquire
0005 913287
TAILGATE CABLE
Version with High End audio system and Gentex digital mirror with camera 		$597.42 1
0005 913282
TAILGATE CABLE
Version with Surround View and Gentex digital mirror with camera 		- 1 Enquire
0005 913288
TAILGATE CABLE
Version with High End audio system,ร‚ย Surround View and Gentex digital mirror with camera 		$610.13 1
0006 847955
FRONT BUMPER CABLE 		$190.65 1
0006 847956
FRONT BUMPER CABLE
Surround view version 		$343.20 1
0007 847957
REAR BUMPER CABLE
Not for Egypt, Morocco and Hong Kong 		$457.60 1
0007 956412
REAR BUMPER CABLE
Applicable for Egypt, Morocco and Hong Kong only 		$355.90 1
0008 868909
VEHICLE LIFT CABLE 		$85.15 1
0008 847959
VEHICLE LIFT CABLE
Version with lift system 		$266.92 1
0009 847961
48V CABLE 		$927.92 1
0010 818028
48V BATTERY CABLE 		$123.28 1
0011 893383
FRONT TUNNEL CABLE 		- 1 Enquire
0011 847963
FRONT TUNNEL CABLE
Applicable for E-CALL system - For Gulf market applicable for United Arab Emirates only 		$483.02 1
0011 847963
FRONT TUNNEL CABLE 		$483.02 1
0012 847965
REAR TUNNEL CABLE 		$86.43 1
0013 893094
ELECTROCHROMIC ROOF CABLE
Version with electrochromic panoramic roof 		$177.94 1
0014 893088
HEADLINER CABLE
High End audio version 		$94.05 1
0015 868663
GLOVE COMPARTMENT CABLE 		$19.05 1
0016 873321
PASSENGER AIRBAG CABLE 		$45.74 1
0017 868664
NEGATIVE BATTERY CABLE 		$113.12 1
0017 875446
NEGATIVE BATTERY CABLE 		$116.93 1
0018 868670
HEADLAMP CABLE 		$44.47 2
0019 941532
ENGINE-SUBFRAME GROUND CABLE 		$152.51 1
0020 963958
GEARBOX GROUND BRAID 		$44.47 1
0021 340259
GROUND BRAID 		$20.33 2
