Engine Electrical System

Ferrari SUV Purosangue USA

Find Your Part

Ferrari Purosangue USA - ENGINE ELECTRICAL SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
951130 INJECTION CABLE $3,101.13 To Order
Photo Part No Description Price (each) Stock
953492 SERVICES CABLE $686.36 To Order
Photo Part No Description Price (each) Stock
840918 BRACKET $33.03 To Order
Photo Part No Description Price (each) Stock
306938 SCREW $0.35 To Order
Photo Part No Description Price (each) Stock
945282 FASTENER BRACKET $26.67 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.58 IN STOCK
Photo Part No Description Price (each) Stock
10441690 BRACKET WITH SHEATH $1.78 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.58 IN STOCK
Photo Part No Description Price (each) Stock
772633 ANCILLARY CABLE FASTENER BRACKET $14.85 To Order
Photo Part No Description Price (each) Stock
291225 P clip Bracket With Sheath $4.84 IN STOCK
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.32 IN STOCK
Photo Part No Description Price (each) Stock
856176 COMPL. INJECTION CABLE FASTENER BRACKET $20.33 To Order
Photo Part No Description Price (each) Stock
856174 COMPL. INJECTION CABLE FASTENER BRACKET $20.33 To Order
Photo Part No Description Price (each) Stock
868752 COMPL. INJECTION CABLE FASTENER BRACKET $25.40 To Order
Photo Part No Description Price (each) Stock
291225 P clip Bracket With Sheath $4.84 IN STOCK
Photo Part No Description Price (each) Stock
895075 INJECTION CABLE FASTENER BRACKET $22.85 To Order
Photo Part No Description Price (each) Stock
320600 CLIP $2.12 To Order
Photo Part No Description Price (each) Stock
750364 DISCONNECTOR FASTENER BRACKET $10.65 To Order
Photo Part No Description Price (each) Stock
339377 STUD BOLT $9.78 To Order
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
840921 INJECTION CABLE FASTENER BRACKET $17.78 To Order
Photo Part No Description Price (each) Stock
893701 INJECTION CABLE FASTENER BRACKET $30.49 To Order
Photo Part No Description Price (each) Stock
10450290 BRACKET WITH SHEATH $3.72 To Order
Photo Part No Description Price (each) Stock
913014 ANCILLARIES CABLE LOCATOR BRACKET $41.92 To Order
Photo Part No Description Price (each) Stock
750606 ANCILLARY CABLE FASTENER BRACKET $19.05 To Order
View All

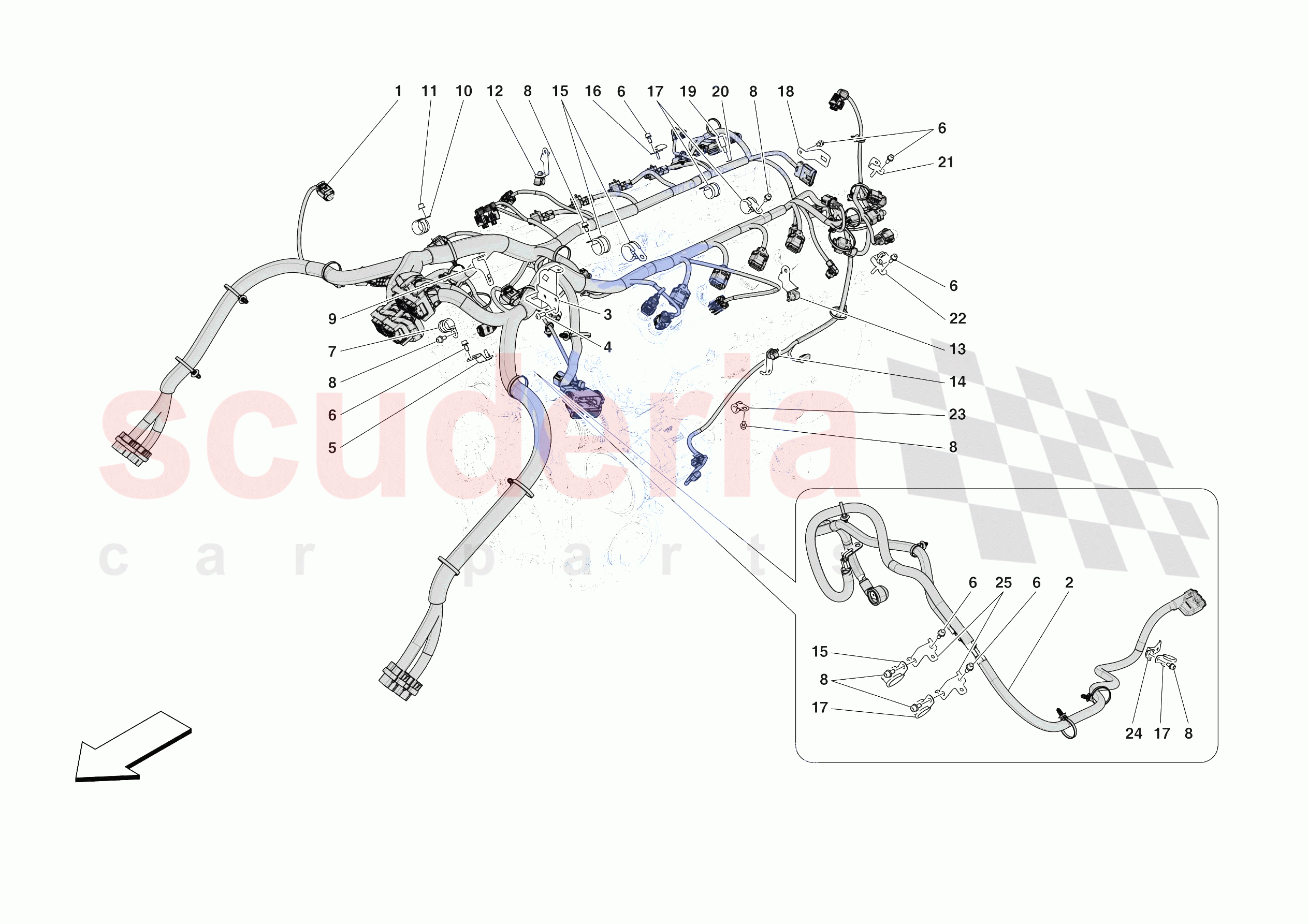

ENGINE ELECTRICAL SYSTEM of Ferrari Ferrari Purosangue USA Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
0001 951130
INJECTION CABLE 		$3,101.13 1
0002 953492
SERVICES CABLE 		$686.36 1
0003 840918
BRACKET 		$33.03 1
0004 306938
SCREW
M6 X 14 		$0.35 2
0005 945282
FASTENER BRACKET 		$26.67 1
0006 248334
SCREW
M6 X 14
IN STOCK 		$0.58 9
0007 10441690
BRACKET WITH SHEATH
D. 18 		$1.78 1
0008 248334
SCREW
M6 X 12
IN STOCK 		$0.58 12
0009 772633
ANCILLARY CABLE FASTENER BRACKET 		$14.85 1
0010 291225
P clip Bracket With Sheath
IN STOCK 		$4.84 1
0011 14059290
FLANGED NUT M6
IN STOCK 		$1.32 1
0012 856176
COMPL. INJECTION CABLE FASTENER BRACKET 		$20.33 1
0013 856174
COMPL. INJECTION CABLE FASTENER BRACKET 		$20.33 1
0014 868752
COMPL. INJECTION CABLE FASTENER BRACKET 		$25.40 1
0015 291225
P clip Bracket With Sheath
IN STOCK 		$4.84 3
0016 895075
INJECTION CABLE FASTENER BRACKET 		$22.85 1
0017 320600
CLIP 		$2.12 4
0018 750364
DISCONNECTOR FASTENER BRACKET 		$10.65 1
0019 339377
STUD BOLT 		$9.78 1
0020 11197774
WASHER
IN STOCK 		$0.06 (80% off) 1
0021 840921
INJECTION CABLE FASTENER BRACKET 		$17.78 1
0022 893701
INJECTION CABLE FASTENER BRACKET 		$30.49 1
0023 10450290
BRACKET WITH SHEATH 		$3.72 1
0024 913014
ANCILLARIES CABLE LOCATOR BRACKET 		$41.92 1
0025 750606
ANCILLARY CABLE FASTENER BRACKET 		$19.05 2
