Ferrari Purosangue Europe RH - LATERAL SUBSTRUCTURE

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
985822561 COMPL. RH PILLAR FLANGE $343.15 To Order
Photo Part No Description Price (each) Stock
985822565 COMPL. LH PILLAR FLANGE $343.15 To Order
Photo Part No Description Price (each) Stock
985822553 RH NODE FLANGE $96.58 To Order
Photo Part No Description Price (each) Stock
985822543 LH NODE FLANGE $96.58 To Order
Photo Part No Description Price (each) Stock
985822567 RH FRONT FLANGE $76.24 To Order
Photo Part No Description Price (each) Stock
985822541 LH FRONT FLANGE $76.24 To Order
Photo Part No Description Price (each) Stock
985822554 COMPL. RH PILLAR FOOT $495.65 To Order
Photo Part No Description Price (each) Stock
985822533 COMPL. LH PILLAR FOOT $495.65 To Order
Photo Part No Description Price (each) Stock
812752 SCREW $4.92 To Order
Photo Part No Description Price (each) Stock
887113 SHIM $6.99 To Order
887114 SHIM $7.36 To Order
Photo Part No Description Price (each) Stock
985822526 RH DOOR TRUSS $90.22 To Order
Photo Part No Description Price (each) Stock
985822558 LH DOOR TRUSS $90.22 To Order
Photo Part No Description Price (each) Stock
985845190 COMPL. LOWER TRUSS FOR RH REAR DOOR $147.17 To Order
Photo Part No Description Price (each) Stock
985845184 COMPL. LOWER TRUSS FOR LH REAR DOOR $147.17 To Order
Photo Part No Description Price (each) Stock
947482 RH REAR DOOR HINGE $1,293.81 To Order
947484 LH REAR DOOR HINGE $1,293.81 To Order
Photo Part No Description Price (each) Stock
81267100 SCREW $4.49 To Order
Photo Part No Description Price (each) Stock
985822563 COMPL. RH FRONT FLANK FASTENER MOUNT $254.17 To Order
985822532 COMPL. LH FRONT FLANK FASTENER MOUNT $254.17 To Order
Photo Part No Description Price (each) Stock
863072 RH FLANK COMPLETION PART $47.01 To Order
822564 LH FLANK COMPLETION PART $47.01 To Order
Photo Part No Description Price (each) Stock
985822538 COMPL. RH LUGGAGE COMPARTMENT SIDE CLOSURE ELEMENT $305.01 To Order
Photo Part No Description Price (each) Stock
985822540 COMPL. LOWER RH REAR COMPLETION PART $165.21 To Order
985822544 COMPL. LOWER LH REAR COMPLETION PART $165.21 To Order
Photo Part No Description Price (each) Stock
985822535 COMPL. LH REAR FLANK FASTENER MOUNT $241.46 To Order
Photo Part No Description Price (each) Stock
12646824 WASHER $0.09 IN STOCK
Photo Part No Description Price (each) Stock
877730 SCREW $6.77 To Order
Photo Part No Description Price (each) Stock
877740 SCREW $3.39 To Order
877730 SCREW $6.77 To Order
Photo Part No Description Price (each) Stock
877744 WASHER $6.61 To Order
Photo Part No Description Price (each) Stock
859163 MOBILE RH REAR DOOR HINGE $1,054.88 To Order
859200 MOBILE LH REAR DOOR HINGE $1,054.88 To Order
View All

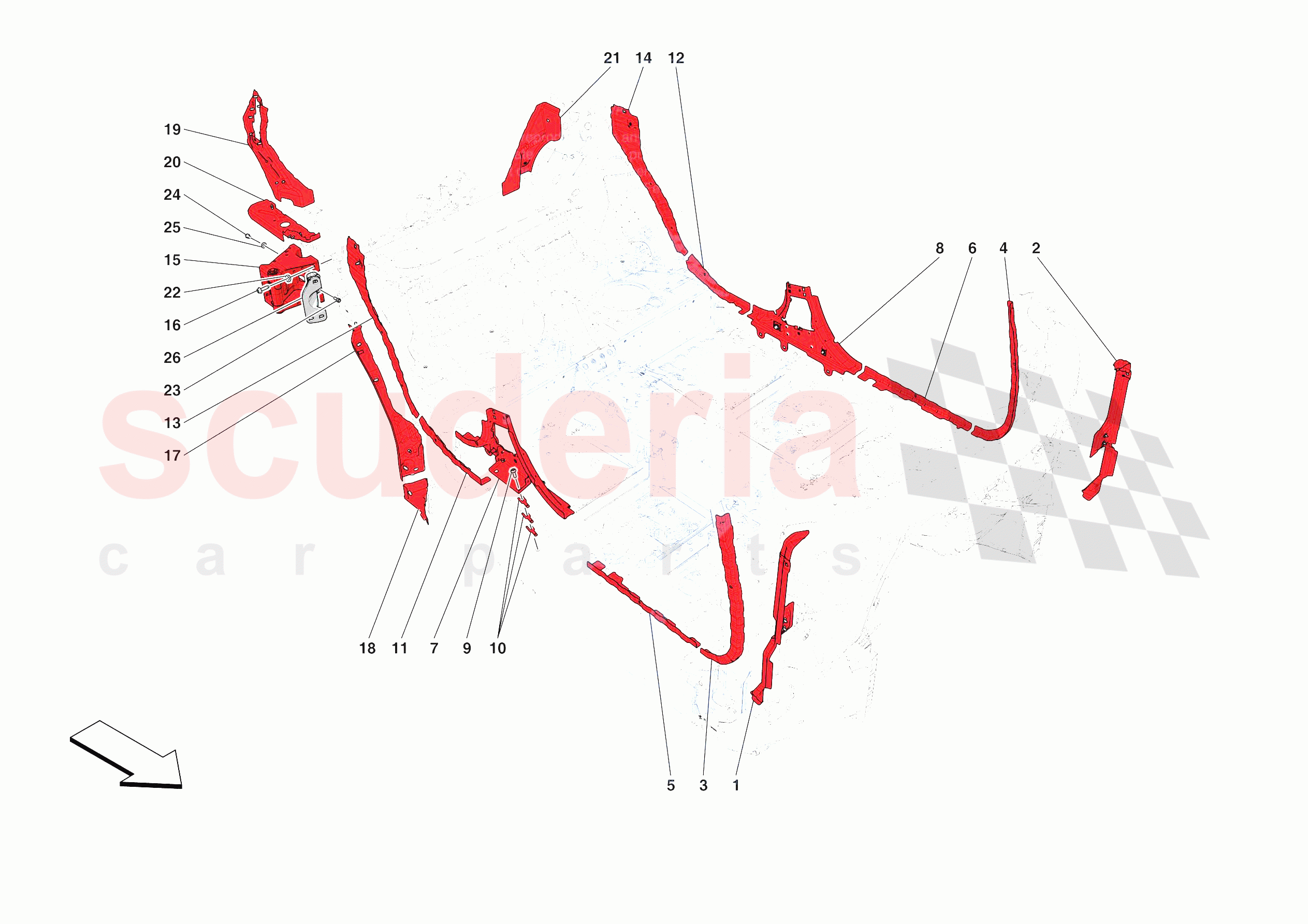

LATERAL SUBSTRUCTURE of Ferrari Ferrari Purosangue Europe RH Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
0001 985822561
COMPL. RH PILLAR FLANGE 		$343.15 1
0002 985822565
COMPL. LH PILLAR FLANGE 		$343.15 1
0003 985822553
RH NODE FLANGE 		$96.58 1
0004 985822543
LH NODE FLANGE 		$96.58 1
0005 985822567
RH FRONT FLANGE 		$76.24 1
0006 985822541
LH FRONT FLANGE 		$76.24 1
0007 985822554
COMPL. RH PILLAR FOOT 		$495.65 1
0008 985822533
COMPL. LH PILLAR FOOT 		$495.65 1
0009 812752
SCREW
M8X30 		$4.92 18
0010 887113
SHIM
Th. 0.5 mm 		$6.99 10
0010 887114
SHIM
Th. 1 mm 		$7.36 12
0011 985822526
RH DOOR TRUSS 		$90.22 1
0012 985822558
LH DOOR TRUSS 		$90.22 1
0013 985845190
COMPL. LOWER TRUSS FOR RH REAR DOOR 		$147.17 1
0014 985845184
COMPL. LOWER TRUSS FOR LH REAR DOOR 		$147.17 1
0015 947482
RH REAR DOOR HINGE 		$1,293.81 1
0015 947484
LH REAR DOOR HINGE 		$1,293.81 1
0016 81267100
SCREW
M10 X 30 		$4.49 (16.1% off) 8
0017 985822563
COMPL. RH FRONT FLANK FASTENER MOUNT 		$254.17 1
0017 985822532
COMPL. LH FRONT FLANK FASTENER MOUNT 		$254.17 1
0018 863072
RH FLANK COMPLETION PART 		$47.01 1
0018 822564
LH FLANK COMPLETION PART 		$47.01 1
0019 985822538
COMPL. RH LUGGAGE COMPARTMENT SIDE CLOSURE ELEMENT 		$305.01 1
0020 985822540
COMPL. LOWER RH REAR COMPLETION PART 		$165.21 1
0020 985822544
COMPL. LOWER LH REAR COMPLETION PART 		$165.21 1
0021 985822535
COMPL. LH REAR FLANK FASTENER MOUNT 		$241.46 1
0022 12646824
WASHER
IN STOCK 		$0.09 (76.3% off) 8
0023 877730
SCREW
Applicable after depletion of 877740; M10 		$6.77 4
0024 877740
SCREW
Applies until depletion; M10 		$3.39 4
0024 877730
SCREW
M10 		$6.77 4
0025 877744
WASHER
10.5 X 21 		$6.61 4
0026 859163
MOBILE RH REAR DOOR HINGE 		$1,054.88 1
0026 859200
MOBILE LH REAR DOOR HINGE 		$1,054.88 1
