Name: ALTERNATOR
Rating: 4.4 (1 reviews)

View All

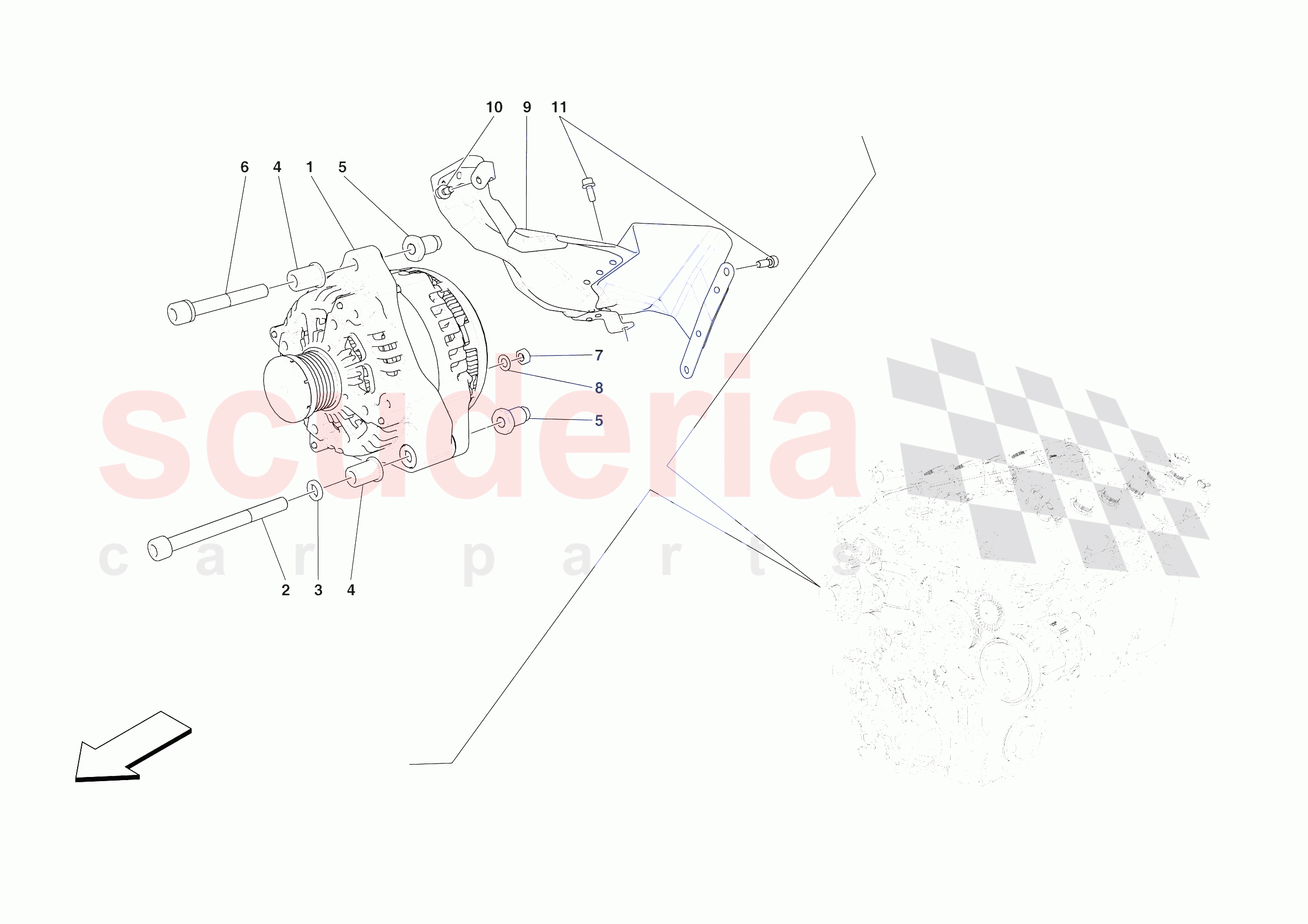

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	829167	ALTERNATOR	$1,648.87	To Order

Photo	Part No	Description	Price (each)	Stock
	14308724	SCREW	$3.46	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10569474	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	258137	BUSH	$4.81	To Order

Photo	Part No	Description	Price (each)	Stock
	970786	THREADED BUSHING	$7.94	To Order

Photo	Part No	Description	Price (each)	Stock
	14308224	SCREW	$1.07	To Order

Photo	Part No	Description	Price (each)	Stock
	16102314	NUT	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER D.8.40-15 X 0.8	$0.02	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	777608	COMPL. ALTERNATOR HEAT SHIELD	$276.16	To Order
	978115	COMPL. ALTERNATOR HEAT SHIELD	$341.70	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW	$0.58	IN STOCK

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
0001	829167	ALTERNATOR	829167 ALTERNATOR	$1,648.87	1
0002	14308724	SCREW IN STOCK	14308724 SCREW M10 X 1.25 X 100 IN STOCK	$3.46	1
0003	10569474	WASHER IN STOCK	10569474 WASHER IN STOCK	$0.06	2
0004	258137	BUSH	258137 BUSH	$4.81	2
0005	970786	THREADED BUSHING	970786 THREADED BUSHING	$7.94	2
0006	14308224	SCREW	14308224 SCREW M10 X 1.25 X 65	$1.07	1
0007	16102314	NUT	16102314 NUT	$0.06 MSRP: ~~1.29~~ (95.3% off)	1
0008	12601374	WASHER D.8.40-15 X 0.8 IN STOCK	12601374 WASHER D.8.40-15 X 0.8 IN STOCK	$0.02 MSRP: ~~0.25~~ (92% off)	1
0009	777608	COMPL. ALTERNATOR HEAT SHIELD	777608 COMPL. ALTERNATOR HEAT SHIELD No longer supplied - Replaced by 978115	$276.16	1
0009	978115	COMPL. ALTERNATOR HEAT SHIELD	978115 COMPL. ALTERNATOR HEAT SHIELD	$341.70	1
0010	248334	SCREW IN STOCK	248334 SCREW M6 X 16 IN STOCK	$0.58	3
0010	248334	SCREW IN STOCK	248334 SCREW M6 X 16 IN STOCK	$0.58	1
0011	248334	SCREW IN STOCK	248334 SCREW M6 X 16 IN STOCK	$0.58	3

Alternator

Ferrari SUV Purosangue Europe RH
