Ferrari Portofino USA - TURBOCHARGING SYSTEM ADJUSTMENTS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
329914 VACUUM ACCUMULATOR TANK $45.74 To Order
Photo Part No Description Price (each) Stock
341783 TANK MOUNTING BRACKET $17.78 To Order
Photo Part No Description Price (each) Stock
14040611 NUT $0.26 IN STOCK
Photo Part No Description Price (each) Stock
341616 SINGLE VACUUM PUMP CONNECTOR PIPE $165.21 To Order
Photo Part No Description Price (each) Stock
250318 SNAP CLIP $0.21 IN STOCK
Photo Part No Description Price (each) Stock
337573 RH REGULATOR PIPE $60.99 To Order
931306683 LH REGULATOR PIPE $58.44 To Order
Photo Part No Description Price (each) Stock
303873 CLIP $1.53 To Order
Photo Part No Description Price (each) Stock
327726 RUBBER PIPE $14.85 To Order
Photo Part No Description Price (each) Stock
316062 MODULATOR SOLENOID VALVE $112.93 IN STOCK
Photo Part No Description Price (each) Stock
299144 RUBBER PIPE $15.24 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.58 IN STOCK
248334 SCREW $0.58 IN STOCK
Photo Part No Description Price (each) Stock
794614 CLIP SET $0.54 To Order
Photo Part No Description Price (each) Stock
337840 RUBBER PIPE $94.03 To Order
Photo Part No Description Price (each) Stock
303639 RUBBER PIPE $24.13 To Order
Photo Part No Description Price (each) Stock
770107 RIGID CHARGE PRESSURE REGULATION SYSTEM PIPE $34.30 To Order
Photo Part No Description Price (each) Stock
337985 RUBBER PIPE $16.51 To Order
Photo Part No Description Price (each) Stock
315495 DUMP-VALVE $177.92 To Order
Photo Part No Description Price (each) Stock
982210 DUMP VALVE BASE $58.44 To Order
982210 DUMP VALVE BASE $58.44 To Order
982210 DUMP VALVE BASE $58.44 To Order
Photo Part No Description Price (each) Stock
898605 RH DUMP VALVE BRACKET $15.24 To Order
898605 RH DUMP VALVE BRACKET $15.24 To Order
898606 LH DUMP VALVE BRACKET $15.24 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
231619 SCREW $0.29 IN STOCK
231620 SCREW $0.31 IN STOCK
Photo Part No Description Price (each) Stock
783295 PIPE FROM HIGH PRESSURE SIDE TO RH DUMP VALVE $67.35 To Order
783296 PIPE FROM HIGH PRESSURE SIDE TO LH DUMP VALVE $73.69 To Order
Photo Part No Description Price (each) Stock
746321 PIPE FROM DUMP VALVE TO RH PIPE $55.90 To Order
330307 PIPE FROM DUMP VALVE TO LH PIPE $53.37 To Order
Photo Part No Description Price (each) Stock
262111 SCREW CLAMP $1.39 To Order
Photo Part No Description Price (each) Stock
306692 CLIP SET $0.51 To Order
Photo Part No Description Price (each) Stock
239829 VIBRATION DAMPER Enquire To Order
Photo Part No Description Price (each) Stock
12644424 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
12601274 WASHER $0.55 IN STOCK
Photo Part No Description Price (each) Stock
312592 NUT $2.28 To Order
Photo Part No Description Price (each) Stock
14040614 NUT $0.14 IN STOCK
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 IN STOCK
View All

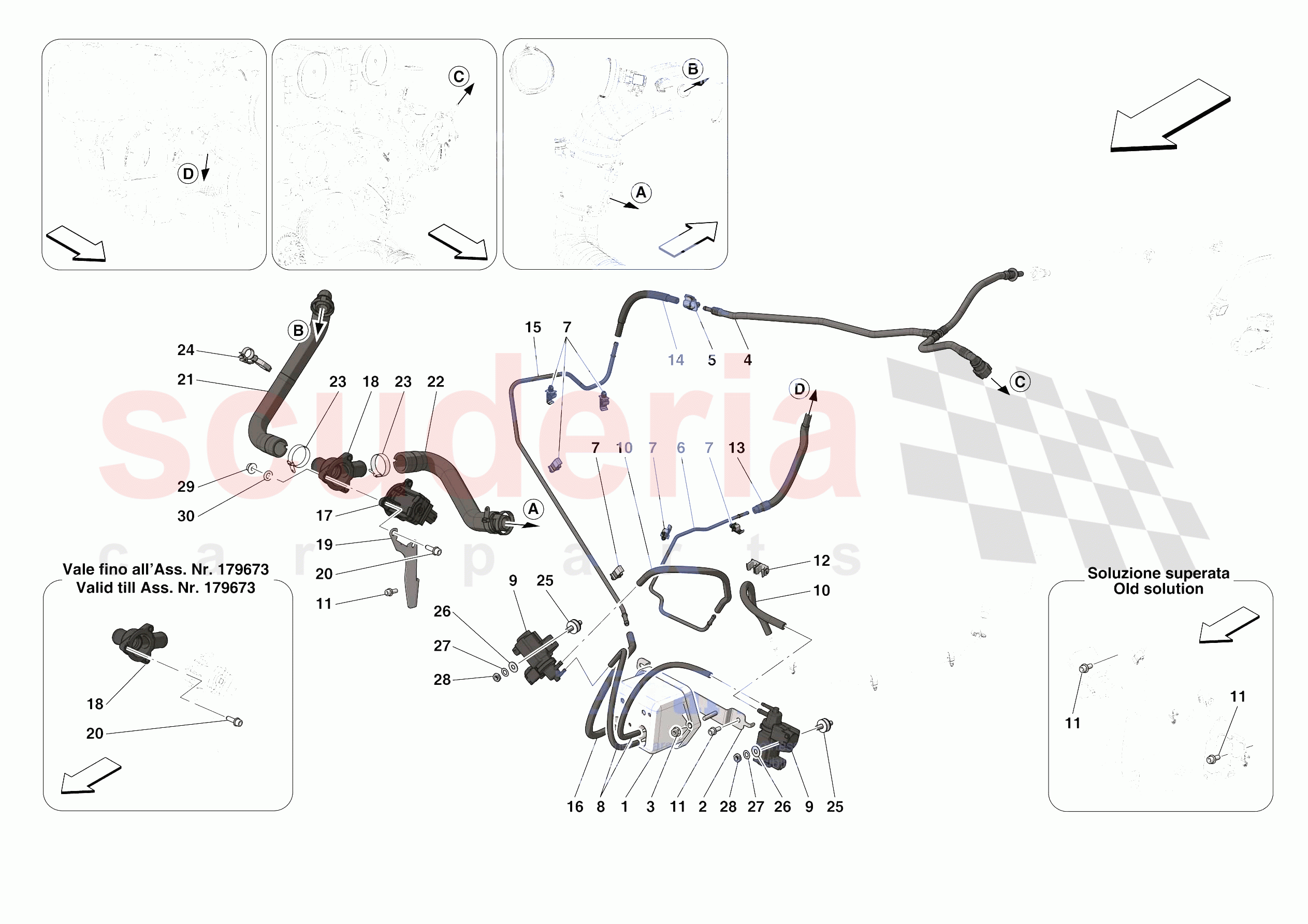

TURBOCHARGING SYSTEM ADJUSTMENTS of Ferrari Ferrari Portofino USA Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
0001 329914
VACUUM ACCUMULATOR TANK 		$45.74 1
0002 341783
TANK MOUNTING BRACKET 		$17.78 1
0003 14040611
NUT
IN STOCK 		$0.26 2
0004 341616
SINGLE VACUUM PUMP CONNECTOR PIPE 		$165.21 1
0005 250318
SNAP CLIP
IN STOCK 		$0.21 1
0006 337573
RH REGULATOR PIPE 		$60.99 1
0006 931306683
LH REGULATOR PIPE 		$58.44 1
0007 303873
CLIP
1 compartment- 		$1.53 12
0008 327726
RUBBER PIPE 		$14.85 2
0009 316062
MODULATOR SOLENOID VALVE
IN STOCK 		$112.93 2
0010 299144
RUBBER PIPE 		$15.24 2
0011 248334
SCREW
M6 X 16
IN STOCK 		$0.58 4
0011 248334
SCREW
M6 X 16
IN STOCK 		$0.58 4
0012 794614
CLIP SET 		$0.54 1
0013 337840
RUBBER PIPE 		$94.03 2
0014 303639
RUBBER PIPE 		$24.13 1
0015 770107
RIGID CHARGE PRESSURE REGULATION SYSTEM PIPE 		$34.30 1
0016 337985
RUBBER PIPE 		$16.51 1
0017 315495
DUMP-VALVE 		$177.92 2
0018 982210
DUMP VALVE BASE
With non-threaded inserts; Applicable after depletion of 936872 		$58.44 2
0018 982210
DUMP VALVE BASE 		$58.44 2
0018 982210
DUMP VALVE BASE 		$58.44 2
0019 898605
RH DUMP VALVE BRACKET 		$15.24 1
0019 898605
RH DUMP VALVE BRACKET 		$15.24 1
0019 898606
LH DUMP VALVE BRACKET 		$15.24 1
0019 898606
LH DUMP VALVE BRACKET 		$15.24 1
0020 231619
SCREW
M6 X 20
IN STOCK 		$0.29 6
0020 231620
SCREW
M6 X 30
IN STOCK 		$0.31 (11.4% off) 6
0021 783295
PIPE FROM HIGH PRESSURE SIDE TO RH DUMP VALVE 		$67.35 1
0021 783296
PIPE FROM HIGH PRESSURE SIDE TO LH DUMP VALVE 		$73.69 1
0022 746321
PIPE FROM DUMP VALVE TO RH PIPE 		$55.90 1
0022 330307
PIPE FROM DUMP VALVE TO LH PIPE 		$53.37 1
0023 262111
SCREW CLAMP 		$1.39 4
0024 306692
CLIP SET 		$0.51 2
0025 239829
VIBRATION DAMPER 		- 4 Enquire
0026 12644424
WASHER
IN STOCK 		$0.06 (85% off) 4
0027 12601274
WASHER
D. 6.40-12 X 0.5
IN STOCK 		$0.55 (31.3% off) 4
0028 312592
NUT 		$2.28 4
0029 14040614
NUT
IN STOCK 		$0.14 6
0030 12643724
WASHER
IN STOCK 		$0.06 (88% off) 6
