Ferrari Portofino USA - CRANKCASE

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
804472 CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY $4,591.60 To Order
833196 CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY $5,443.46 To Order
764321 CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY $5,410.91 To Order
Photo Part No Description Price (each) Stock
271598 GASKET CRANKCASE $35.35 IN STOCK
Photo Part No Description Price (each) Stock
271564 STUD BOLT $26.61 To Order
Photo Part No Description Price (each) Stock
270464 STUD BOLT $27.88 To Order
Photo Part No Description Price (each) Stock
185360 CENTERING DOWEL $2.80 IN STOCK
Photo Part No Description Price (each) Stock
282753 THREADED PLUG $5.75 To Order
Photo Part No Description Price (each) Stock
271810 CYLINDER SLEEVE $272.47 To Order
Photo Part No Description Price (each) Stock
294153 GASKET $2.95 To Order
Photo Part No Description Price (each) Stock
307477 THREADED PLUG $3.32 IN STOCK
Photo Part No Description Price (each) Stock
10263460 COPPER GASKET D.28-22.3 X 1.5 $0.35 IN STOCK
Photo Part No Description Price (each) Stock
311001 CENTERING DOWEL $2.71 To Order
Photo Part No Description Price (each) Stock
278119 STUD BOLT $20.28 To Order
Photo Part No Description Price (each) Stock
291078 THREADED PLUG $2.28 To Order
Photo Part No Description Price (each) Stock
282755 THREADED PLUG $1.87 To Order
Photo Part No Description Price (each) Stock
294614 CHECK VALVE $34.22 To Order
Photo Part No Description Price (each) Stock
231620 SCREW $0.31 IN STOCK
Photo Part No Description Price (each) Stock
298858 PISTON COOLING NOZZLE ASSEMBLY $38.03 To Order
Photo Part No Description Price (each) Stock
298859 PISTON COOLING NOZZLE ASSEMBLY $26.61 To Order
Photo Part No Description Price (each) Stock
315493 SCREW $1.01 To Order
Photo Part No Description Price (each) Stock
339298 GASKET $50.70 To Order
Photo Part No Description Price (each) Stock
339289 GASKET $48.17 To Order
Photo Part No Description Price (each) Stock
231620 SCREW $0.31 IN STOCK
Photo Part No Description Price (each) Stock
278120 STUD BOLT $22.80 To Order
Photo Part No Description Price (each) Stock
288133 DRIVE JOINT $137.74 To Order
Photo Part No Description Price (each) Stock
11060276 SEEGER RING $0.41 IN STOCK
Photo Part No Description Price (each) Stock
247049 BEARING $46.64 IN STOCK
Photo Part No Description Price (each) Stock
11066876 SEEGER RING $0.06 To Order
Photo Part No Description Price (each) Stock
102725 CENTERING DOWEL $1.01 To Order
Photo Part No Description Price (each) Stock
255138 BLOW-BY VALVE ASSEMBLY $103.95 To Order
Photo Part No Description Price (each) Stock
14303123 SCREW $0.06 IN STOCK
View All

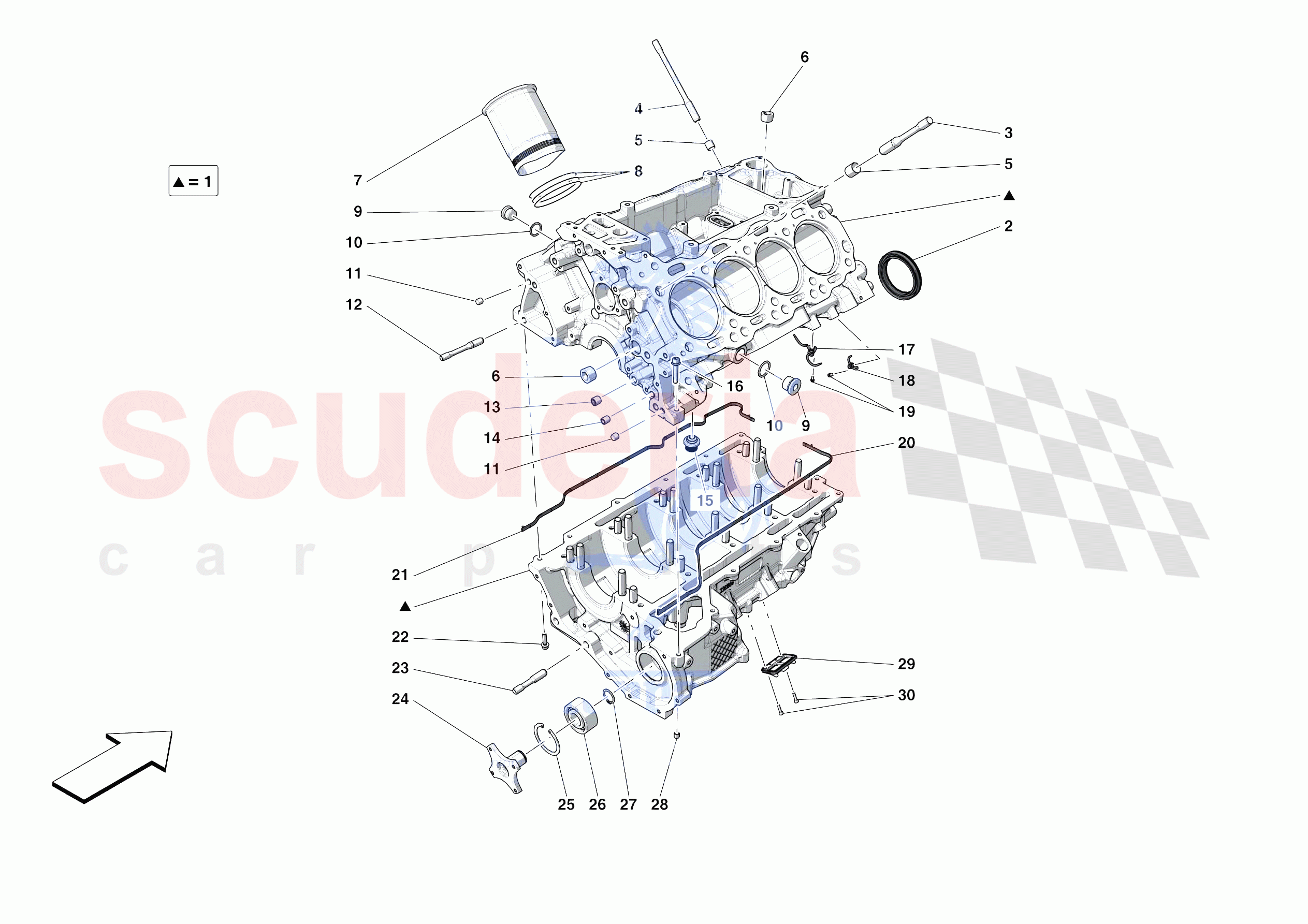

CRANKCASE of Ferrari Ferrari Portofino USA Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
0001 804472
CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY
Applies until depletion; Applicable up to engine No. 506909 		$4,591.60 1
0001 833196
CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY
For vehicles up to Ass.ly No. 506909 also order pipes in tab. 28, 787611 ref. 1, 787612 ref. 2, 787609 ref. 6, 787610 ref. 7, 787613 ref. 11 and 787614 ref. 12; Applies until depletion - Applicable after depletion of 804472; Applicable from engine No. 506910 		$5,443.46 1
0001 764321
CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY
For vehicles up to Ass.ly No. 506909 also order pipes in tab. 28, 787611 ref. 1, 787612 ref. 2, 787609 ref. 6, 787610 ref. 7, 787613 ref. 11 and 787614 ref. 12 - Also order washer 12642524 Ref.10 Tab.38; Applicable after depletion of 833196; Applicable from engine No. 506910 		$5,410.91 1
0002 271598
GASKET CRANKCASE
Also included in engine gasket set
IN STOCK 		$35.35 1
0003 271564
STUD BOLT 		$26.61 2
0004 270464
STUD BOLT 		$27.88 18
0005 185360
CENTERING DOWEL
IN STOCK 		$2.80 4
0006 282753
THREADED PLUG 		$5.75 2
0007 271810
CYLINDER SLEEVE 		$272.47 8
0008 294153
GASKET
Also included in engine gasket set 		$2.95 24
0009 307477
THREADED PLUG
IN STOCK 		$3.32 2
0010 10263460
COPPER GASKET D.28-22.3 X 1.5
Also included in engine gasket set
IN STOCK 		$0.35 (65% off) 2
0011 311001
CENTERING DOWEL 		$2.71 2
0012 278119
STUD BOLT 		$20.28 6
0013 291078
THREADED PLUG
M12 X 11 		$2.28 2
0014 282755
THREADED PLUG
D. 10 X 1.25 		$1.87 2
0015 294614
CHECK VALVE 		$34.22 1
0016 231620
SCREW
M6 X 25
IN STOCK 		$0.31 (11.4% off) 13
0017 298858
PISTON COOLING NOZZLE ASSEMBLY 		$38.03 4
0018 298859
PISTON COOLING NOZZLE ASSEMBLY 		$26.61 8
0019 315493
SCREW
M4 X 10 		$1.01 12
0020 339298
GASKET
Also included in engine gasket set 		$50.70 1
0021 339289
GASKET
Also included in engine gasket set 		$48.17 1
0022 231620
SCREW
M6 X 25
IN STOCK 		$0.31 (11.4% off) 13
0023 278120
STUD BOLT 		$22.80 2
0024 288133
DRIVE JOINT 		$137.74 1
0025 11060276
SEEGER RING
IN STOCK 		$0.41 (76.6% off) 1
0026 247049
BEARING
IN STOCK 		$46.64 1
0027 11066876
SEEGER RING 		$0.06 (82.9% off) 1
0028 102725
CENTERING DOWEL 		$1.01 (55.1% off) 2
0029 255138
BLOW-BY VALVE ASSEMBLY 		$103.95 4
0030 14303123
SCREW
M4 X 14
IN STOCK 		$0.06 8
