Ferrari Portofino Europe RH - GEARBOX AND FASTENERS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
815469 COMPL. DCT GEARBOX $32,646.76 To Order
Photo Part No Description Price (each) Stock
301073 LH FRONT DCT GEARBOX STRUT $203.44 To Order
301074 RH FRONT DCT GEARBOX STRUT $203.44 To Order
Photo Part No Description Price (each) Stock
247856 SCREW $1.70 To Order
Photo Part No Description Price (each) Stock
767031 COMPL. LH FRONT BUSH MOUNT $381.47 To Order
796457 COMPL. RH FRONT BUSH MOUNT $381.47 To Order
Photo Part No Description Price (each) Stock
14302234 SCREW $0.83 To Order
14302234 SCREW $0.83 To Order
Photo Part No Description Price (each) Stock
12654424 WASHER $0.44 To Order
Photo Part No Description Price (each) Stock
986847 CONICAL WASHER $0.60 To Order
Photo Part No Description Price (each) Stock
300597 SPLIT WASHER $17.79 To Order
Photo Part No Description Price (each) Stock
12644924 WASHER $1.61 To Order
Photo Part No Description Price (each) Stock
12164024 NUT $1.44 IN STOCK
Photo Part No Description Price (each) Stock
803089 LH FRONT GEARBOX HEAT SHIELD $41.94 To Order
803088 RH FRONT GEARBOX HEAT SHIELD $41.94 To Order
Photo Part No Description Price (each) Stock
231619 SCREW $0.29 IN STOCK
Photo Part No Description Price (each) Stock
766806 COMPL. LH REAR STRUT $406.91 To Order
766804 COMPL. RH REAR STRUT $394.19 To Order
Photo Part No Description Price (each) Stock
750165 SCREW $2.21 To Order
Photo Part No Description Price (each) Stock
764636 SCREW $2.62 To Order
Photo Part No Description Price (each) Stock
753432 GEARBOX MOUNTING BUSH PIN $97.90 To Order
Photo Part No Description Price (each) Stock
10731314 WASHER $1.35 To Order
Photo Part No Description Price (each) Stock
243122 SPACER $5.98 To Order
Photo Part No Description Price (each) Stock
331997 WASHER $2.12 To Order
Photo Part No Description Price (each) Stock
12164424 NUT $4.59 To Order
Photo Part No Description Price (each) Stock
752490 LH AXLE SHAFT HEAT SHIELD $123.33 To Order
958190 LH AXLE SHAFT HEAT SHIELD $115.70 To Order
931307993 RH AXLE SHAFT HEAT SHIELD $116.98 To Order
Photo Part No Description Price (each) Stock
16296934 SCREW 6 X 14MM $0.41 IN STOCK
Photo Part No Description Price (each) Stock
783309 COMPL. LH GEARBOX HEAT SHIELD $216.17 To Order
813349 COMPL. RH GEARBOX HEAT SHIELD $216.17 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.58 IN STOCK
Photo Part No Description Price (each) Stock
248471 SCREW $0.94 To Order
Photo Part No Description Price (each) Stock
767212 REAR IMPACT RETAINER BRACKET $95.36 To Order
Photo Part No Description Price (each) Stock
12638524 WASHER D8.15-15 X 1.5 $0.06 IN STOCK
Photo Part No Description Price (each) Stock
13028734 SCREW $0.51 IN STOCK
Photo Part No Description Price (each) Stock
70005055 GL5 OIL LEVEL PLUG $52.12 To Order
Photo Part No Description Price (each) Stock
70004679 OIL DRAIN PLUG $22.33 IN STOCK
Photo Part No Description Price (each) Stock
70005056 ATF OIL LEVEL PLUG KIT $16.68 IN STOCK
View All

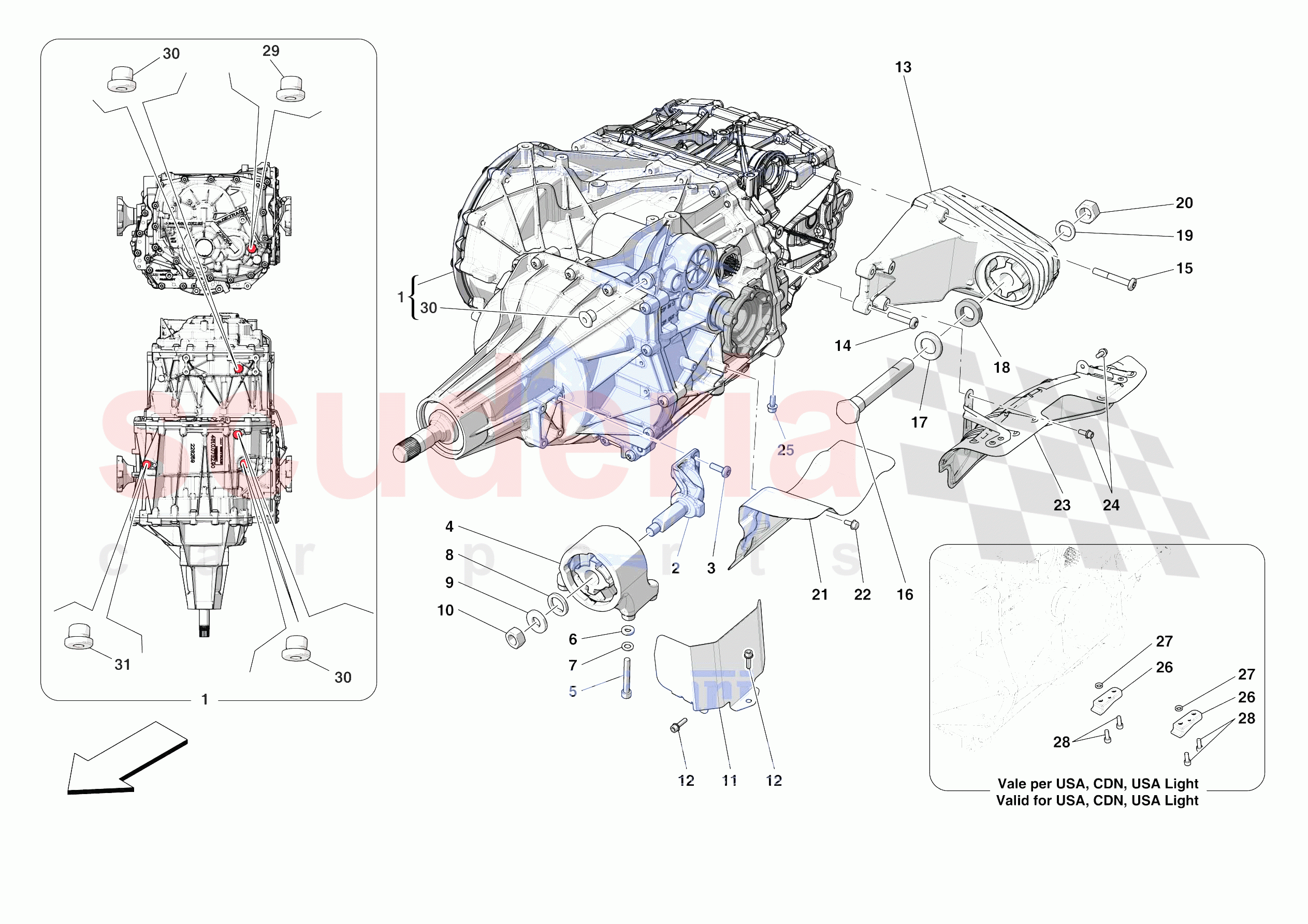

GEARBOX AND FASTENERS of Ferrari Ferrari Portofino Europe RH Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
0001 815469
COMPL. DCT GEARBOX
Request ASM authorisation 		$32,646.76 1
0002 301073
LH FRONT DCT GEARBOX STRUT 		$203.44 1
0002 301074
RH FRONT DCT GEARBOX STRUT 		$203.44 1
0003 247856
SCREW
M8 X 1.25 X 25 		$1.70 8
0004 767031
COMPL. LH FRONT BUSH MOUNT 		$381.47 1
0004 796457
COMPL. RH FRONT BUSH MOUNT 		$381.47 1
0005 14302234
SCREW
M8 X 55 		$0.83 8
0005 14302234
SCREW
M8 X 55 		$0.83 8
0006 12654424
WASHER 		$0.44 8
0007 986847
CONICAL WASHER 		$0.60 8
0008 300597
SPLIT WASHER 		$17.79 2
0009 12644924
WASHER 		$1.61 2
0010 12164024
NUT
IN STOCK 		$1.44 2
0011 803089
LH FRONT GEARBOX HEAT SHIELD 		$41.94 1
0011 803088
RH FRONT GEARBOX HEAT SHIELD 		$41.94 1
0012 231619
SCREW
M6 X 22
IN STOCK 		$0.29 4
0013 766806
COMPL. LH REAR STRUT 		$406.91 1
0013 766804
COMPL. RH REAR STRUT 		$394.19 1
0014 750165
SCREW
M8 X 1.25 X 40 		$2.21 4
0015 764636
SCREW 		$2.62 4
0016 753432
GEARBOX MOUNTING BUSH PIN 		$97.90 2
0017 10731314
WASHER 		$1.35 2
0018 243122
SPACER 		$5.98 1
0019 331997
WASHER 		$2.12 2
0020 12164424
NUT 		$4.59 2
0021 752490
LH AXLE SHAFT HEAT SHIELD
Applies until depletion 		$123.33 1
0021 958190
LH AXLE SHAFT HEAT SHIELD
Applicable after depletion of 752490 		$115.70 1
0021 931307993
RH AXLE SHAFT HEAT SHIELD 		$116.98 1
0022 16296934
SCREW 6 X 14MM
M6 X 14
IN STOCK 		$0.41 6
0023 783309
COMPL. LH GEARBOX HEAT SHIELD 		$216.17 1
0023 813349
COMPL. RH GEARBOX HEAT SHIELD 		$216.17 1
0024 248334
SCREW
M6 X 16
IN STOCK 		$0.58 4
0025 248471
SCREW
M8 X 20 		$0.94 2
0026 767212
REAR IMPACT RETAINER BRACKET 		$95.36 2
0027 12638524
WASHER D8.15-15 X 1.5
D. 8.15 -15 X 1.5
IN STOCK 		$0.06 (76% off) 4
0028 13028734
SCREW
M8 X 25
IN STOCK 		$0.51 (77.3% off) 4
0029 70005055
GL5 OIL LEVEL PLUG 		$52.12 1
0030 70004679
OIL DRAIN PLUG
IN STOCK 		$22.33 4
0031 70005056
ATF OIL LEVEL PLUG KIT
IN STOCK 		$16.68 1
