Ferrari Portofino Europe - STRUCTURES AND ELEMENTS, REAR OF VEHICLE

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
333461 REAR FIXED SUBCHASSIS Enquire To Order
Photo Part No Description Price (each) Stock
985339883 RH UPPER REAR DIAGONAL BRACE $900.23 To Order
985339882 LH UPPER REAR DIAGONAL BRACE $874.87 To Order
Photo Part No Description Price (each) Stock
985339879 COMPL. LOWER RH REAR DIAGONAL BRACE $684.68 To Order
985952848 COMPL. LOWER RH REAR DIAGONAL BRACE $532.52 To Order
985339878 COMPL. LOWER LH REAR DIAGONAL BRACE $684.68 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
985338025 COMPL. CENTRE REAR BENCH REINFORCEMENT $646.64 To Order
Photo Part No Description Price (each) Stock
985339359 COMPL. LH REAR BENCH $1,764.98 To Order
985780856 COMPL. LH REAR BENCH $6,483.04 To Order
985339360 COMPL. RH REAR BENCH $1,764.98 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
985868685 COMPL. RH OUTER FLANK $633.96 To Order
985868682 COMPL. LH OUTER FLANK $633.96 To Order
985868685 COMPL. RH OUTER FLANK $633.96 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
985339746 RH INNER FLANK $646.64 To Order
985339745 LH INNER FLANK $646.64 To Order
Photo Part No Description Price (each) Stock
985335301 COMPLETE SPARE WHEEL TRAY $844.12 To Order
985832484 COMPLETE SPARE WHEEL TRAY $1,895.58 To Order
Photo Part No Description Price (each) Stock
985764995 GEARBOX SUBCHASSIS $21,040.41 To Order
Photo Part No Description Price (each) Stock
985334254 REAR LH HOSE BRACKET $304.29 To Order
985334256 REAR RH HOSE BRACKET $304.29 To Order
Photo Part No Description Price (each) Stock
16289834 SCREW $1.27 To Order
Photo Part No Description Price (each) Stock
749854 SCREW $4.05 To Order
Photo Part No Description Price (each) Stock
749853 SCREW $2.37 To Order
Photo Part No Description Price (each) Stock
68984500 SCREW $3.01 To Order
Photo Part No Description Price (each) Stock
299578 SCREW $2.54 To Order
Photo Part No Description Price (each) Stock
128944 WASHER $2.74 To Order
Photo Part No Description Price (each) Stock
985335201 RH UPPER REAR SUSPENSION CASTING $4,196.91 To Order
Photo Part No Description Price (each) Stock
985335200 LH UPPER REAR SUSPENSION CASTING $4,196.91 To Order
Photo Part No Description Price (each) Stock
985771802 COMPL. REAR TANK END CROSS MEMBER $857.88 To Order
Photo Part No Description Price (each) Stock
985337555 RH SPAR $1,290.76 To Order
985832490 REAR RH STRUT $1,331.34 To Order
Photo Part No Description Price (each) Stock
985337554 LH SPAR $1,290.76 To Order
985832489 LH REAR SPAR $1,365.58 To Order
Photo Part No Description Price (each) Stock
985337557 RH K-BRACE $595.92 To Order
Photo Part No Description Price (each) Stock
985337556 LH K-BRACE $595.92 To Order
Photo Part No Description Price (each) Stock
85492800 SOUNDPROOFING BLANKING CAP $2.02 To Order
View All

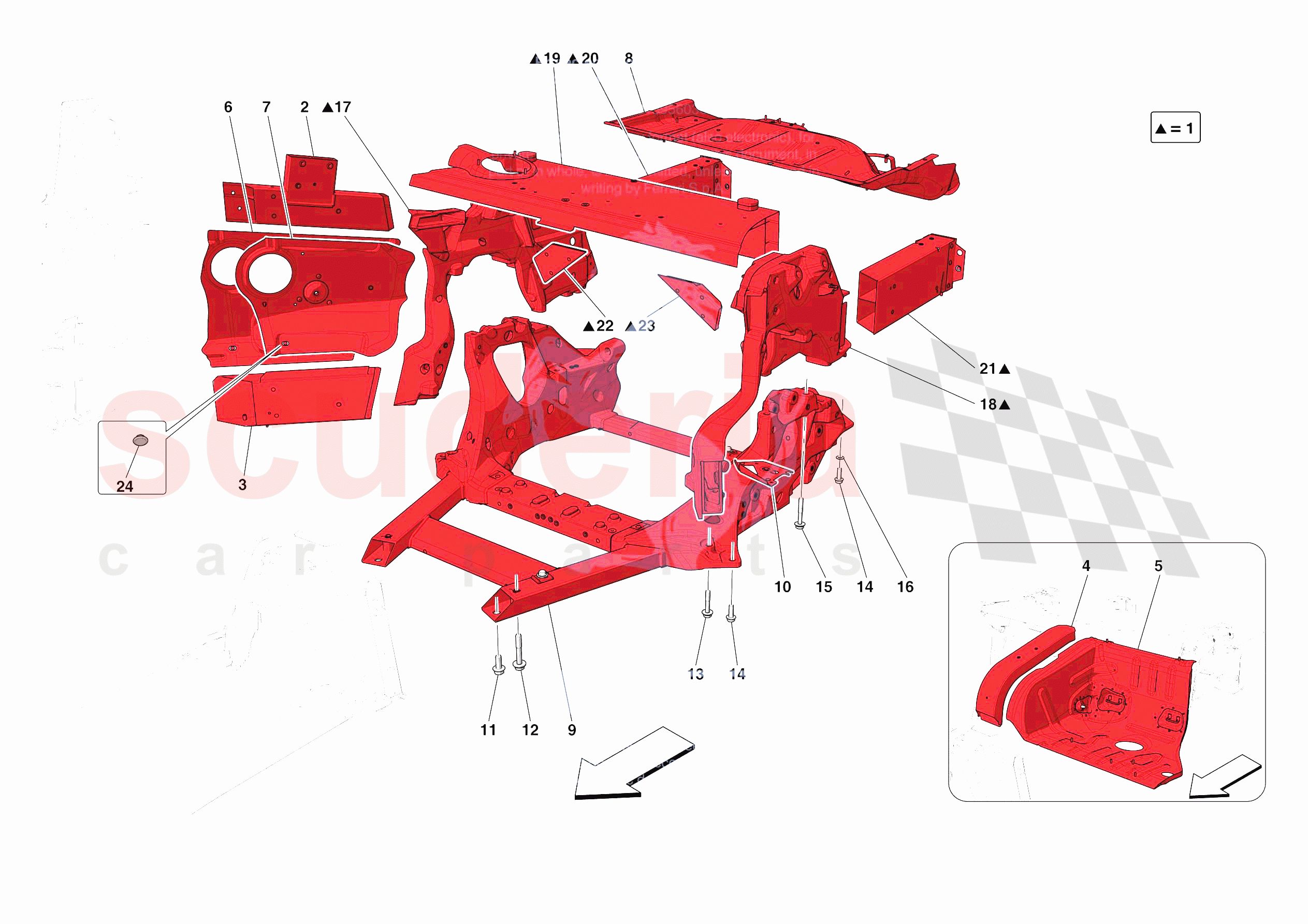

STRUCTURES AND ELEMENTS, REAR OF VEHICLE of Ferrari Ferrari Portofino Europe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
0001 333461
REAR FIXED SUBCHASSIS
Request ASM authorisation; No longer supplied 		- 1 Enquire
0002 985339883
RH UPPER REAR DIAGONAL BRACE
Request ASM authorisation 		$900.23 1
0002 985339882
LH UPPER REAR DIAGONAL BRACE
Request ASM authorisation 		$874.87 1
0003 985339879
COMPL. LOWER RH REAR DIAGONAL BRACE
Request ASM authorisation; Applies until depletion 		$684.68 1
0003 985952848
COMPL. LOWER RH REAR DIAGONAL BRACE
Request ASM authorisation; Applicable after depletion of 985339879 		$532.52 1
0003 985339878
COMPL. LOWER LH REAR DIAGONAL BRACE
Request ASM authorisation; Applies until depletion 		$684.68 1
0003 985860491
COMPL. LOWER LH REAR DIAGONAL BRACE
Request ASM authorisation; Applicable after depletion of 985339878 		$532.52 1
0004 985338025
COMPL. CENTRE REAR BENCH REINFORCEMENT
Request ASM authorisation 		$646.64 1
0005 985339359
COMPL. LH REAR BENCH
Request ASM authorisation; Applies until depletion 		$1,764.98 1
0005 985780856
COMPL. LH REAR BENCH
Request ASM authorisation; Applicable after depletion of 985339359 		$6,483.04 1
0005 985339360
COMPL. RH REAR BENCH
Request ASM authorisation; Applies until depletion 		$1,764.98 1
0005 985780858
COMPL. RH REAR BENCH
Request ASM authorisation; Applicable after depletion of 985339360 		$6,483.04 1
0006 985868685
COMPL. RH OUTER FLANK
Request ASM authorisation; Applicable after depletion of 985339729 		$633.96 1
0006 985868682
COMPL. LH OUTER FLANK
Request ASM authorisation; Applicable after depletion of 985339727 		$633.96 1
0006 985868685
COMPL. RH OUTER FLANK 		$633.96 1
0006 985868682
COMPL. LH OUTER FLANK 		$633.96 1
0007 985339746
RH INNER FLANK
Request ASM authorisation 		$646.64 1
0007 985339745
LH INNER FLANK
Request ASM authorisation 		$646.64 1
0008 985335301
COMPLETE SPARE WHEEL TRAY
Request ASM authorisation; Applies until depletion 		$844.12 1
0008 985832484
COMPLETE SPARE WHEEL TRAY 		$1,895.58 1
0009 985764995
GEARBOX SUBCHASSIS
Request ASM authorisation 		$21,040.41 1
0010 985334254
REAR LH HOSE BRACKET 		$304.29 1
0010 985334256
REAR RH HOSE BRACKET 		$304.29 1
0011 16289834
SCREW
M10 X 1.25 X 30 		$1.27 2
0012 749854
SCREW
M12 X 1.25 X 75 		$4.05 2
0013 749853
SCREW
M10 X 1.25 X 60 		$2.37 2
0014 68984500
SCREW
M10 X 30 X 1.25 		$3.01 12
0015 299578
SCREW
M10 X 1.25 X 70 		$2.54 2
0016 128944
WASHER 		$2.74 4
0017 985335201
RH UPPER REAR SUSPENSION CASTING
Request ASM authorisation 		$4,196.91 1
0018 985335200
LH UPPER REAR SUSPENSION CASTING
Request ASM authorisation 		$4,196.91 1
0019 985771802
COMPL. REAR TANK END CROSS MEMBER
Request ASM authorisation 		$857.88 1
0020 985337555
RH SPAR
Request ASM authorisation; Applies until depletion 		$1,290.76 1
0020 985832490
REAR RH STRUT 		$1,331.34 1
0021 985337554
LH SPAR
Request ASM authorisation; Applies until depletion 		$1,290.76 1
0021 985832489
LH REAR SPAR 		$1,365.58 1
0022 985337557
RH K-BRACE
Request ASM authorisation 		$595.92 1
0023 985337556
LH K-BRACE
Request ASM authorisation 		$595.92 1
0024 85492800
SOUNDPROOFING BLANKING CAP 		$2.02 -
