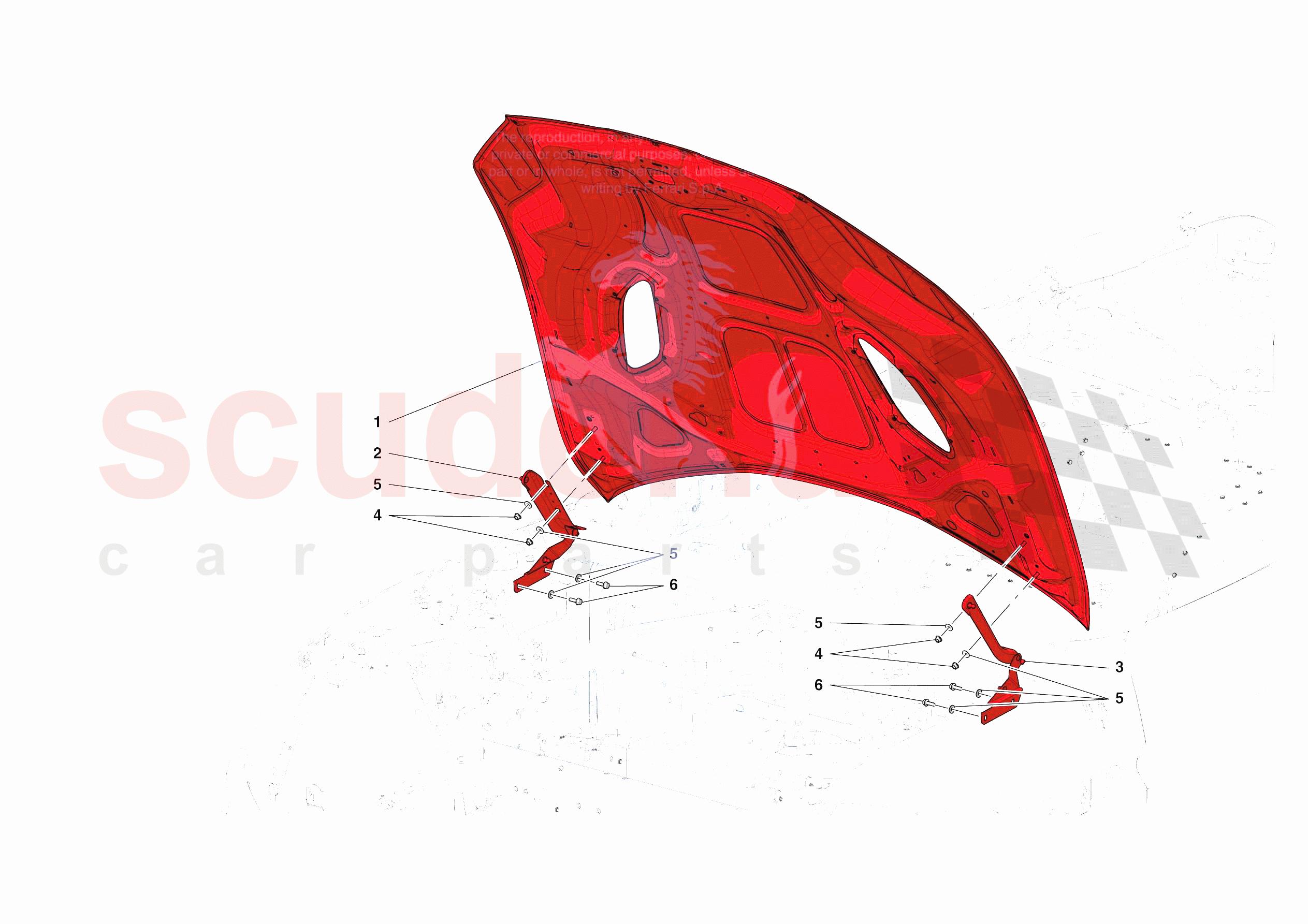

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock

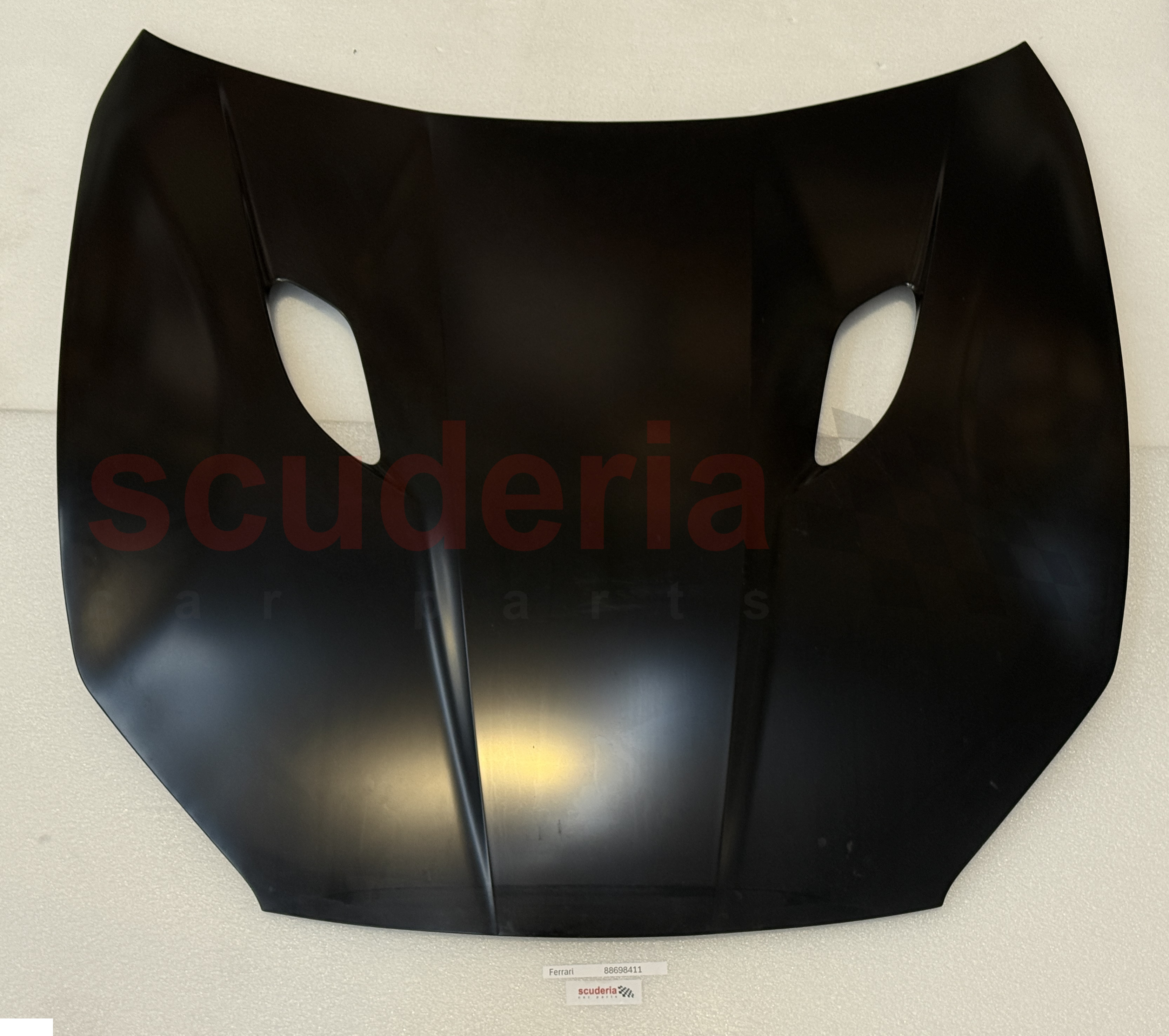

	88698411	LID SKIN AND SUBSTRUCTURE	$6,037.94	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	69994300	RH FRONT LID HINGE	$82.46	To Order

Photo	Part No	Description	Price (each)	Stock
	69994200	LH FRONT LID HINGE	$82.46	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14059311	FLANGED NUT M8 X 1.25	$0.25	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13578324	WASHER	$0.22	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	16287524	SCREW	$1.19	IN STOCK

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
0001	88698411	LID SKIN AND SUBSTRUCTURE IN STOCK	88698411 LID SKIN AND SUBSTRUCTURE IN STOCK	$6,037.94	1
0002	69994300	RH FRONT LID HINGE	69994300 RH FRONT LID HINGE	$82.46	1
0003	69994200	LH FRONT LID HINGE IN STOCK	69994200 LH FRONT LID HINGE IN STOCK	$82.46	1
0004	14059311	FLANGED NUT M8 X 1.25 IN STOCK	14059311 FLANGED NUT M8 X 1.25 IN STOCK	$0.25 MSRP: ~~0.50~~ (50% off)	4
0005	13578324	WASHER IN STOCK	13578324 WASHER D. 8.15 - 24 X 2 IN STOCK	$0.22	8
0006	16287524	SCREW IN STOCK	16287524 SCREW M8 X 25 IN STOCK	$1.19	4
