Name: GEARBOX REPAIR KIT
Rating: 5.0 (1 reviews)

GEARBOX REPAIR KIT of Ferrari Ferrari Portofino M USA

View All

Ferrari Portofino M USA - GEARBOX REPAIR KIT

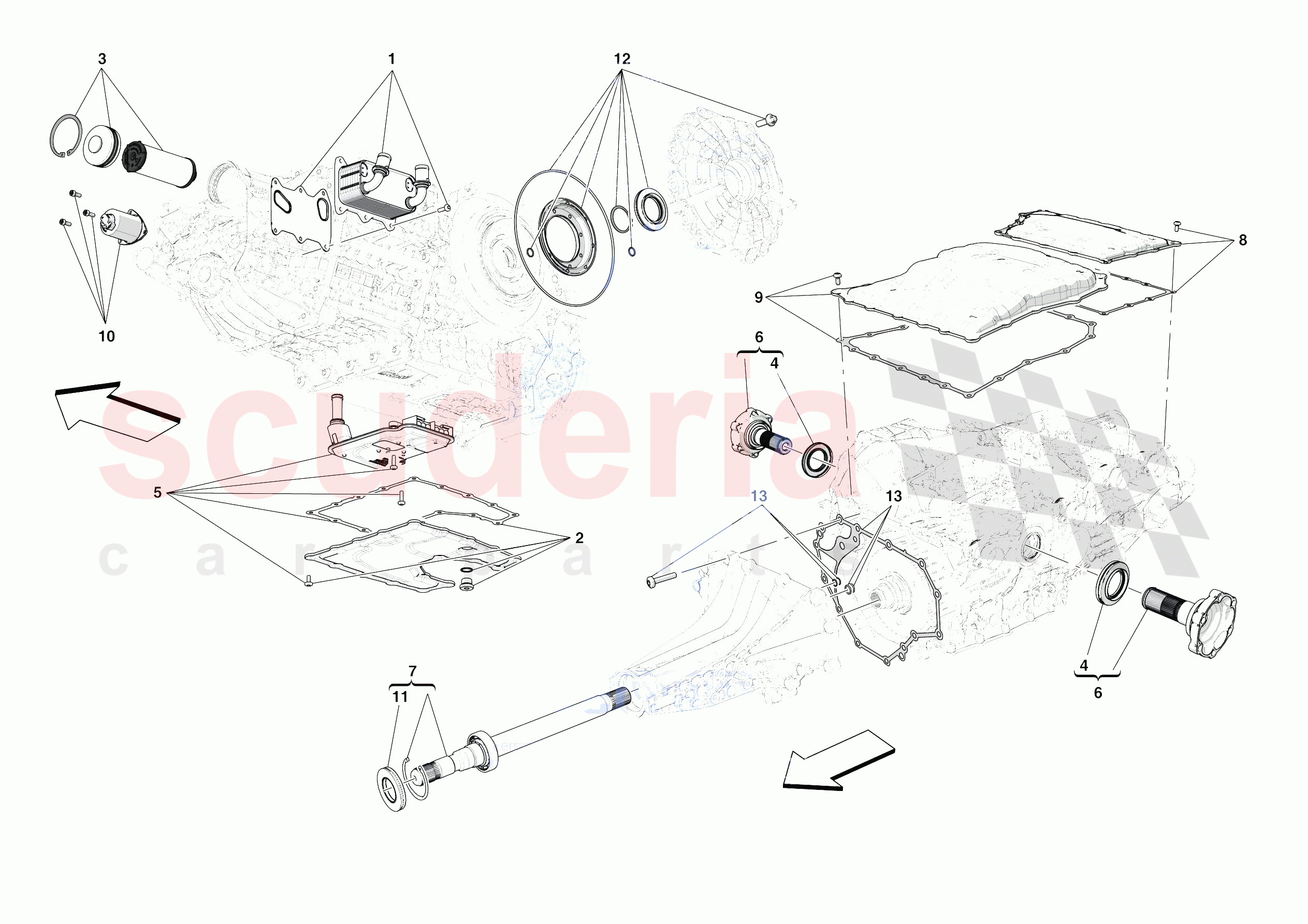

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	748503	HEAT EXCHANGER KIT	$964.90	To Order

Photo	Part No	Description	Price (each)	Stock
	748516	OIL SUMP KIT	$537.57	To Order

Photo	Part No	Description	Price (each)	Stock
	748537	OIL FILTER KIT	$918.43	To Order

Photo	Part No	Description	Price (each)	Stock
	749374	AXLE SHAFT SEAL KIT	$68.91	To Order

Photo	Part No	Description	Price (each)	Stock
	749386	OIL SUCTION FILTER KIT	$537.57	To Order

Photo	Part No	Description	Price (each)	Stock
	749582	AXLE SHAFT SEAL AND FLANGE KIT	$1,033.82	To Order

Photo	Part No	Description	Price (each)	Stock
	749502	INPUT SHAFT KIT	$1,199.23	To Order

Photo	Part No	Description	Price (each)	Stock
	749388	SAM MODULE COVER KIT	$413.51	To Order

Photo	Part No	Description	Price (each)	Stock
	749398	CCM MODULE COVER KIT	$523.79	To Order

Photo	Part No	Description	Price (each)	Stock
	749434	PARK LOCK SOLENOID KIT	$468.65	To Order

Photo	Part No	Description	Price (each)	Stock
	749541	INPUT SHAFT SEAL	$154.09	To Order

Photo	Part No	Description	Price (each)	Stock
	749440	EDIFF KIT	$606.49	To Order

Photo	Part No	Description	Price (each)	Stock
	907948	CONNECTOR CASING GASKET AND FASTENER KIT	$220.53	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
0001	748503	HEAT EXCHANGER KIT	748503 HEAT EXCHANGER KIT Consists of 1 heat exchanger, 1 heat exchanger gasket and 6 screws	$964.90	1
0002	748516	OIL SUMP KIT	748516 OIL SUMP KIT Consists of 1 oil sump, 1 oil sump gasket, 1 oil plug and 19 oil sump fastener screws	$537.57	1
0003	748537	OIL FILTER KIT	748537 OIL FILTER KIT Consists of 1 filter, 1 cover and 1 circlip	$918.43	1
0004	749374	AXLE SHAFT SEAL KIT	749374 AXLE SHAFT SEAL KIT Consists of 2 seals-	$68.91	1
0005	749386	OIL SUCTION FILTER KIT	749386 OIL SUCTION FILTER KIT Consists of 1 oil suction line filter, 2 filter fastener screws, 1 oil sump gasket and 19 oil sump fastener screws	$537.57	1
0006	749582	AXLE SHAFT SEAL AND FLANGE KIT	749582 AXLE SHAFT SEAL AND FLANGE KIT Consists of 2 flanges and 2 seals	$1,033.82	1
0007	749502	INPUT SHAFT KIT	749502 INPUT SHAFT KIT Consists of 1 shaft, 1 circlip and 1 seal	$1,199.23	1
0008	749388	SAM MODULE COVER KIT	749388 SAM MODULE COVER KIT Consists of 1 cover, 1 gasket and 17 screws	$413.51	1
0009	749398	CCM MODULE COVER KIT	749398 CCM MODULE COVER KIT Consists of 1 cover, 1 gasket and 21 screws	$523.79	1
0010	749434	PARK LOCK SOLENOID KIT	749434 PARK LOCK SOLENOID KIT Consists of 1 solenoid and 3 screws	$468.65	1
0011	749541	INPUT SHAFT SEAL	749541 INPUT SHAFT SEAL	$154.09	1
0012	749440	EDIFF KIT	749440 EDIFF KIT Consists of 1 piston seal, 1 axle shaft flange seal, 2 O-rings (12.3x2), 1 O-ring (230x3.4), 1 circlip and 14 screws	$606.49	1
0013	907948	CONNECTOR CASING GASKET AND FASTENER KIT	907948 CONNECTOR CASING GASKET AND FASTENER KIT Consists of 1 connector housing gasket, 14 screws, 2 O-rings (14.15x2) and 2 O-rings (11.4x2)	$220.53	1

Gearbox Repair Kit

Ferrari Portofino M USA

Ferrari Portofino M USA - GEARBOX REPAIR KIT
