Engine Electrical System

Ferrari Portofino M USA

Find Your Part

Ferrari Portofino M USA - ENGINE ELECTRICAL SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
927694 INJECTION CABLE $2,737.80 To Order
927695 INJECTION CABLE $2,979.19 To Order
946471 INJECTION CABLE $2,985.55 To Order
Photo Part No Description Price (each) Stock
340740 RH BRACKET $17.77 To Order
Photo Part No Description Price (each) Stock
769597 BRACKET $22.84 To Order
Photo Part No Description Price (each) Stock
320601 CLIP $2.11 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.58 IN STOCK
Photo Part No Description Price (each) Stock
295730 CABLE RETAINER BRACKET $22.84 To Order
Photo Part No Description Price (each) Stock
320599 CLIP $1.70 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.32 IN STOCK
Photo Part No Description Price (each) Stock
320600 CLIP $2.11 To Order
Photo Part No Description Price (each) Stock
320597 CLIP $1.61 To Order
Photo Part No Description Price (each) Stock
892690 GPF PIPE MOUNT COUNTERBRACKET $14.25 To Order
Photo Part No Description Price (each) Stock
231619 SCREW $0.29 IN STOCK
Photo Part No Description Price (each) Stock
279626 SHIELD MOUNTING BRACKET $8.76 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.58 IN STOCK
Photo Part No Description Price (each) Stock
291662 SOLENOID VALVE HEAT SHIELD $190.55 To Order
Photo Part No Description Price (each) Stock
820264 ENGINE SERVICES CABLE $330.31 To Order
819376 ENGINE SERVICES CABLE $419.23 To Order
Photo Part No Description Price (each) Stock
320598 CLIP $1.70 To Order
Photo Part No Description Price (each) Stock
329905 COMPL. BRACKET $24.12 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.58 IN STOCK
Photo Part No Description Price (each) Stock
329906 WIRING HARNESS MOUNTING BRACKET $12.69 To Order
Photo Part No Description Price (each) Stock
303138 HEAT SHIELD $5.84 To Order
Photo Part No Description Price (each) Stock
206739 CLAMP $7.80 To Order
Photo Part No Description Price (each) Stock
820917 BRACKET $12.69 To Order
Photo Part No Description Price (each) Stock
794721 BRACKET $26.66 To Order
View All

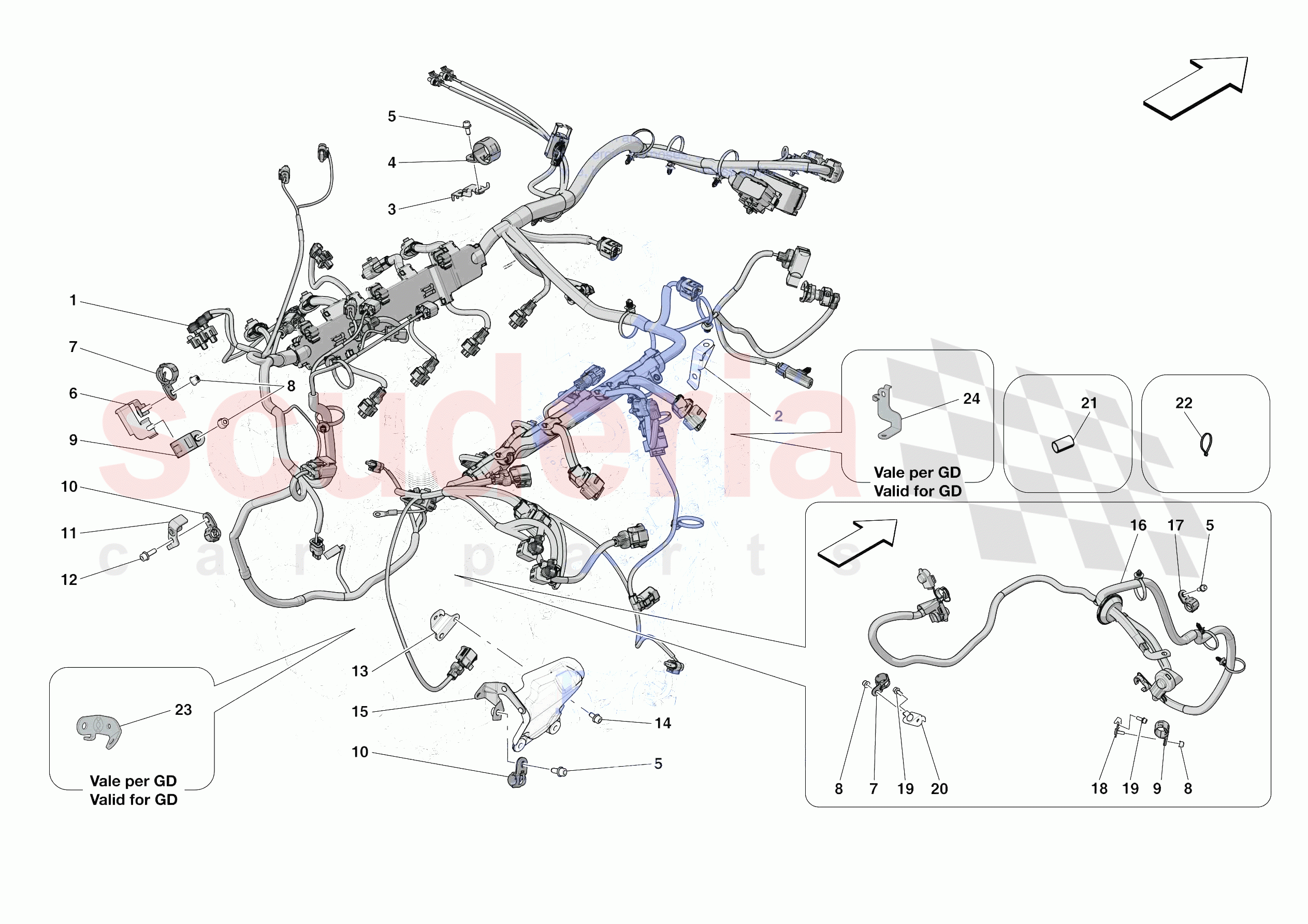

ENGINE ELECTRICAL SYSTEM of Ferrari Ferrari Portofino M USA Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
0001 927694
INJECTION CABLE 		$2,737.80 1
0001 927695
INJECTION CABLE
Applicable up to MY 22 		$2,979.19 1
0001 946471
INJECTION CABLE
Applicable from MY 23 		$2,985.55 1
0002 340740
RH BRACKET 		$17.77 1
0003 769597
BRACKET 		$22.84 1
0004 320601
CLIP 		$2.11 1
0005 248334
SCREW
M6 X 14
IN STOCK 		$0.58 14
0006 295730
CABLE RETAINER BRACKET 		$22.84 1
0007 320599
CLIP 		$1.70 7
0008 14059290
FLANGED NUT M6
IN STOCK 		$1.32 4
0009 320600
CLIP 		$2.11 4
0010 320597
CLIP 		$1.61 6
0011 892690
GPF PIPE MOUNT COUNTERBRACKET 		$14.25 2
0012 231619
SCREW
M6 X 18
IN STOCK 		$0.29 2
0013 279626
SHIELD MOUNTING BRACKET 		$8.76 1
0014 248334
SCREW
M6 X 12
IN STOCK 		$0.58 3
0015 291662
SOLENOID VALVE HEAT SHIELD 		$190.55 1
0016 820264
ENGINE SERVICES CABLE 		$330.31 1
0016 819376
ENGINE SERVICES CABLE 		$419.23 1
0017 320598
CLIP 		$1.70 1
0018 329905
COMPL. BRACKET 		$24.12 1
0019 248334
SCREW
M6 X 16
IN STOCK 		$0.58 8
0020 329906
WIRING HARNESS MOUNTING BRACKET 		$12.69 1
0021 303138
HEAT SHIELD 		$5.84 1
0022 206739
CLAMP 		$7.80 1
0023 820917
BRACKET 		$12.69 1
0024 794721
BRACKET 		$26.66 1
