Name: GEARBOX AND FASTENERS
Rating: 5.0 (1 reviews)

GEARBOX AND FASTENERS of Ferrari Ferrari Portofino M Europe

View All

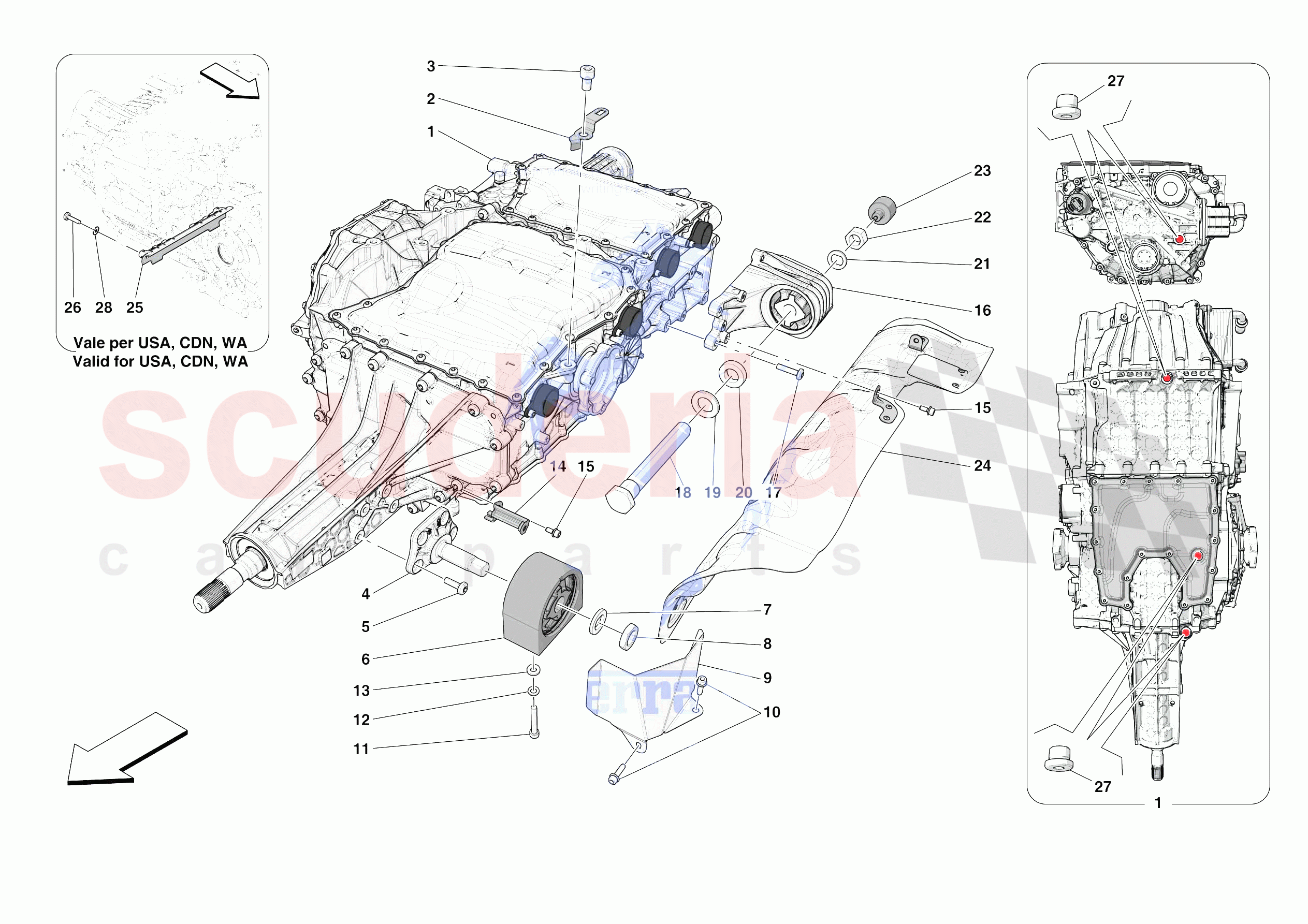

Ferrari Portofino M Europe - GEARBOX AND FASTENERS

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	985352	COMPL. DCT GEARBOX	$39,990.76	To Order
	847403	COMPL. DCT GEARBOX	$40,863.66	To Order
	763129	COMPL. DCT GEARBOX	$46,752.42	To Order

Photo	Part No	Description	Price (each)	Stock
	910977	WIRING HARNESS MOUNTING BRACKET	$16.51	To Order

Photo	Part No	Description	Price (each)	Stock
	14359924	SCREW	$1.53	To Order

Photo	Part No	Description	Price (each)	Stock
	893453	GEARBOX FRONT STRUT	$190.62	To Order

Photo	Part No	Description	Price (each)	Stock
	247856	SCREW	$1.70	To Order

Photo	Part No	Description	Price (each)	Stock
	917933	COMPL. BUSHING FRONT MOUNTING	$292.31	To Order
	777385	COMPL. BUSHING FRONT MOUNTING	$330.44	To Order

Photo	Part No	Description	Price (each)	Stock
	331171	WASHER	$6.10	To Order

Photo	Part No	Description	Price (each)	Stock
	16102624	NUT	$9.32	To Order

Photo	Part No	Description	Price (each)	Stock
	828871	LH GEARBOX FRONT MOUNT HEAT SHIELD	$38.12	To Order
	958368	RH GEARBOX FRONT MOUNT HEAT SHIELD	$40.65	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.29	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14302234	SCREW	$0.83	To Order

Photo	Part No	Description	Price (each)	Stock
	986847	CONICAL WASHER	$0.60	To Order

Photo	Part No	Description	Price (each)	Stock
	12654424	WASHER	$0.44	To Order

Photo	Part No	Description	Price (each)	Stock
	918728	FRONT BRACKET	$19.05	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW	$0.58	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	893003	LH REAR GEARBOX STRUT	$406.69	To Order
	893004	RH REAR GEARBOX STRUT	$393.99	To Order

Photo	Part No	Description	Price (each)	Stock
	14306634	SCREW	$0.35	To Order

Photo	Part No	Description	Price (each)	Stock
	938726	GEARBOX MOUNTING BUSH PIN	$125.81	To Order

Photo	Part No	Description	Price (each)	Stock
	10731314	WASHER	$1.35	To Order

Photo	Part No	Description	Price (each)	Stock
	243122	SPACER	$5.98	To Order

Photo	Part No	Description	Price (each)	Stock
	331997	WASHER	$2.12	To Order

Photo	Part No	Description	Price (each)	Stock
	12164424	NUT	$4.58	To Order

Photo	Part No	Description	Price (each)	Stock
	938712	ADDITIONAL GROUND MALE	$55.90	To Order

Photo	Part No	Description	Price (each)	Stock
	918724	COMPL. LH GEARBOX HEAT SHIELD	$203.33	To Order
	918722	COMPL. RH GEARBOX HEAT SHIELD	$203.33	To Order

Photo	Part No	Description	Price (each)	Stock
	342315	REAR IMPACT RETAINER BRACKET	$203.33	To Order

Photo	Part No	Description	Price (each)	Stock
	14306634	SCREW	$0.35	To Order
	14306634	SCREW	$0.35	To Order

Photo	Part No	Description	Price (each)	Stock
	913205	OIL PLUG COMPL. WITH WASHER	$67.35	To Order

Photo	Part No	Description	Price (each)	Stock
	13578324	WASHER	$0.21	IN STOCK

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
0001	985352	COMPL. DCT GEARBOX	985352 COMPL. DCT GEARBOX Applies until depletion; Request ASM authorisation	$39,990.76	1
0001	847403	COMPL. DCT GEARBOX	847403 COMPL. DCT GEARBOX Applies until depletion - Applicable after depletion of 985352; Request ASM authorisation	$40,863.66	1
0001	763129	COMPL. DCT GEARBOX	763129 COMPL. DCT GEARBOX Applicable after depletion of 847403; Request ASM authorisation	$46,752.42	1
0002	910977	WIRING HARNESS MOUNTING BRACKET	910977 WIRING HARNESS MOUNTING BRACKET	$16.51	1
0003	14359924	SCREW	14359924 SCREW M10 X 1.25 X 16	$1.53	1
0004	893453	GEARBOX FRONT STRUT	893453 GEARBOX FRONT STRUT	$190.62	2
0005	247856	SCREW	247856 SCREW M8 X 1.25 X 25	$1.70	8
0006	917933	COMPL. BUSHING FRONT MOUNTING	917933 COMPL. BUSHING FRONT MOUNTING Applies until depletion	$292.31	2
0006	777385	COMPL. BUSHING FRONT MOUNTING	777385 COMPL. BUSHING FRONT MOUNTING Applicable after depletion of 917933	$330.44	2
0007	331171	WASHER	331171 WASHER	$6.10	2
0008	16102624	NUT	16102624 NUT	$9.32	2
0009	828871	LH GEARBOX FRONT MOUNT HEAT SHIELD	828871 LH GEARBOX FRONT MOUNT HEAT SHIELD	$38.12	1
0009	958368	RH GEARBOX FRONT MOUNT HEAT SHIELD	958368 RH GEARBOX FRONT MOUNT HEAT SHIELD	$40.65	1
0010	231619	SCREW IN STOCK	231619 SCREW M6 X 22 IN STOCK	$0.29	4
0011	14302234	SCREW	14302234 SCREW M8 X 55	$0.83	8
0012	986847	CONICAL WASHER	986847 CONICAL WASHER	$0.60	8
0013	12654424	WASHER	12654424 WASHER	$0.44	8
0014	918728	FRONT BRACKET	918728 FRONT BRACKET	$19.05	2
0015	248334	SCREW IN STOCK	248334 SCREW M6 X 14 IN STOCK	$0.58	12
0016	893003	LH REAR GEARBOX STRUT	893003 LH REAR GEARBOX STRUT	$406.69	1
0016	893004	RH REAR GEARBOX STRUT	893004 RH REAR GEARBOX STRUT	$393.99	1
0017	14306634	SCREW	14306634 SCREW M8 X 1.25 X 35	$0.35	2
0018	938726	GEARBOX MOUNTING BUSH PIN	938726 GEARBOX MOUNTING BUSH PIN	$125.81	2
0019	10731314	WASHER	10731314 WASHER	$1.35	2
0020	243122	SPACER	243122 SPACER	$5.98	2
0021	331997	WASHER	331997 WASHER	$2.12	2
0022	12164424	NUT	12164424 NUT	$4.58	2
0023	938712	ADDITIONAL GROUND MALE	938712 ADDITIONAL GROUND MALE 370 g	$55.90	2
0024	918724	COMPL. LH GEARBOX HEAT SHIELD	918724 COMPL. LH GEARBOX HEAT SHIELD	$203.33	1
0024	918722	COMPL. RH GEARBOX HEAT SHIELD	918722 COMPL. RH GEARBOX HEAT SHIELD	$203.33	1
0025	342315	REAR IMPACT RETAINER BRACKET	342315 REAR IMPACT RETAINER BRACKET	$203.33	1
0026	14306634	SCREW	14306634 SCREW M8 X 1.25 X 35	$0.35	2
0026	14306634	SCREW	14306634 SCREW M8 X 1.25 X 35	$0.35	2
0027	913205	OIL PLUG COMPL. WITH WASHER	913205 OIL PLUG COMPL. WITH WASHER	$67.35	4
0028	13578324	WASHER IN STOCK	13578324 WASHER IN STOCK	$0.21	2

Gearbox And Fasteners

Ferrari Portofino M Europe
